NS-3A: Checking Fuel Pump

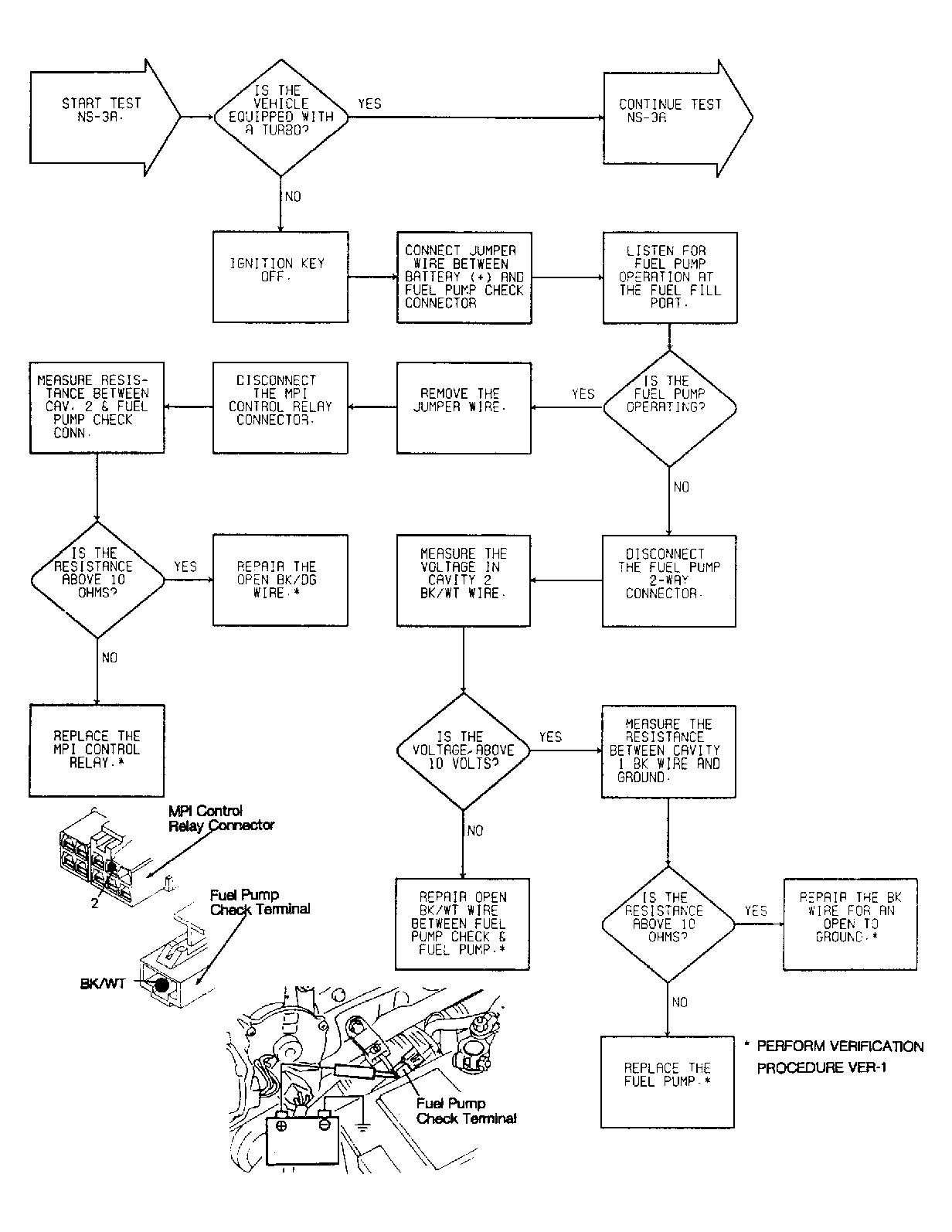

Fig 1: No Start Test NS-3A: Diagnostic Flow Chart (1 of 2)
G91I10783
Fig 2: Test NS-3A
GB0044622

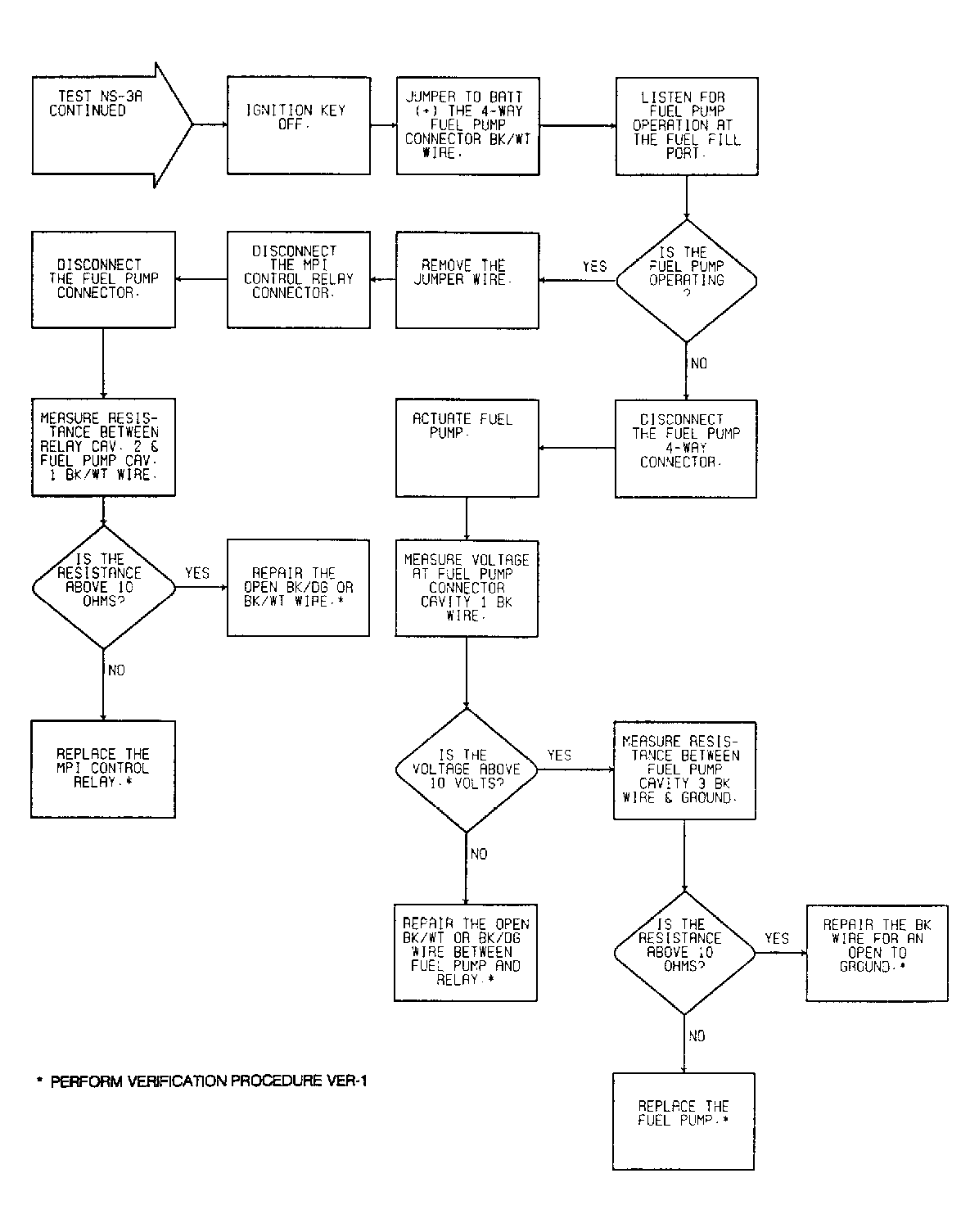

Fig 3: No Start Test NS-3A: Diagnostic Flow Chart (2 of 2)
G91J10784
Fig 4: Test NS-3A Continued
GB0044623
