Master Window Switch: Removal

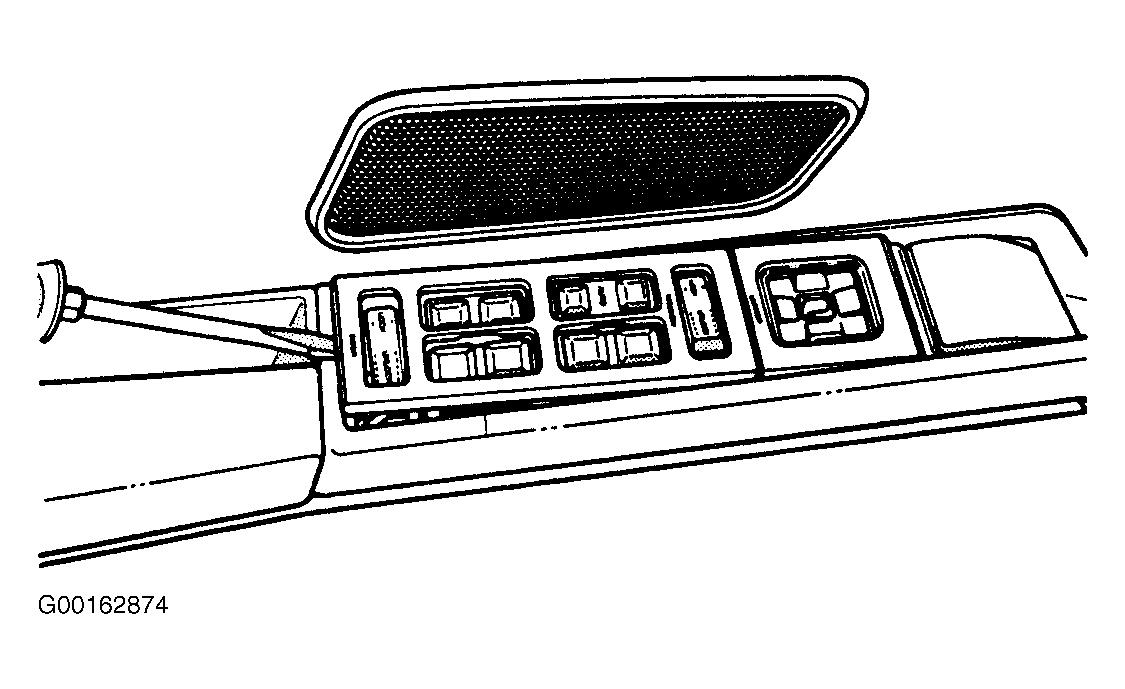

1. Remove the plastic switch cover by prying up the rear of the cover. See Figure . Once the rear of the cover is free, move the cover to the rear.
2. Remove switch attaching screws. See Fig 1 .
3. Lift switch assembly up and disconnect electrical connectors. See Fig 2 .

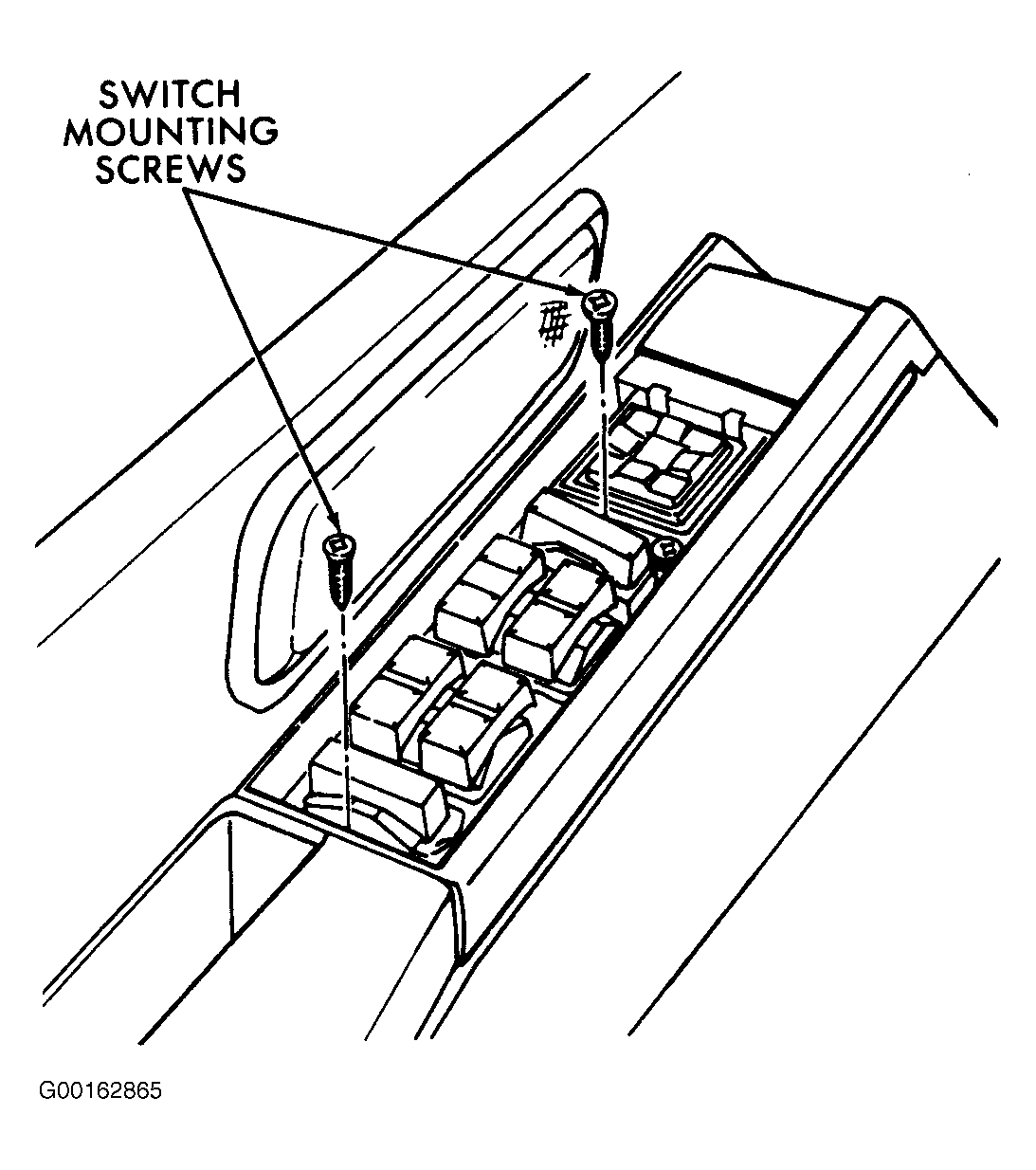

Fig 1: Removing Switch Attaching Screws (Passenger Front Door)

Courtesy of CHRYSLER CORP.

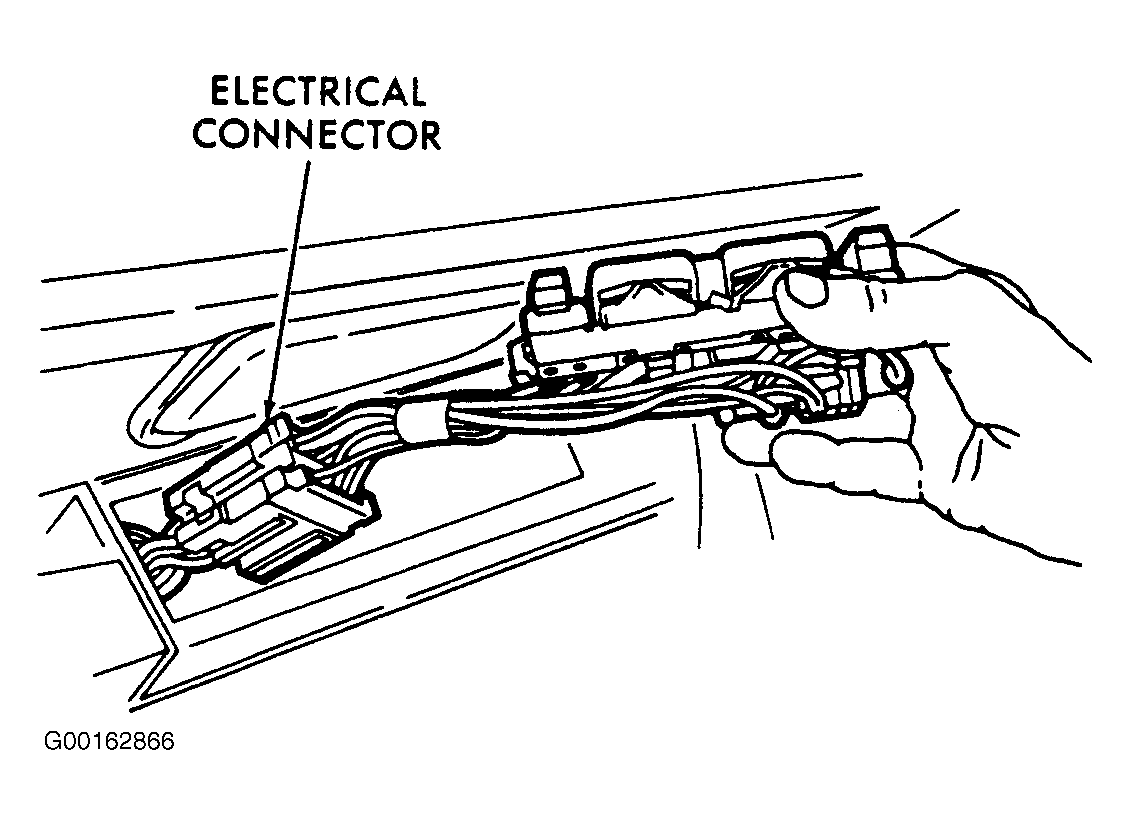

Fig 2: Disconnecting Electrical Connector (Passenger Door)

Courtesy of CHRYSLER CORP.
