Service Indicator & Warning Lights: Notes

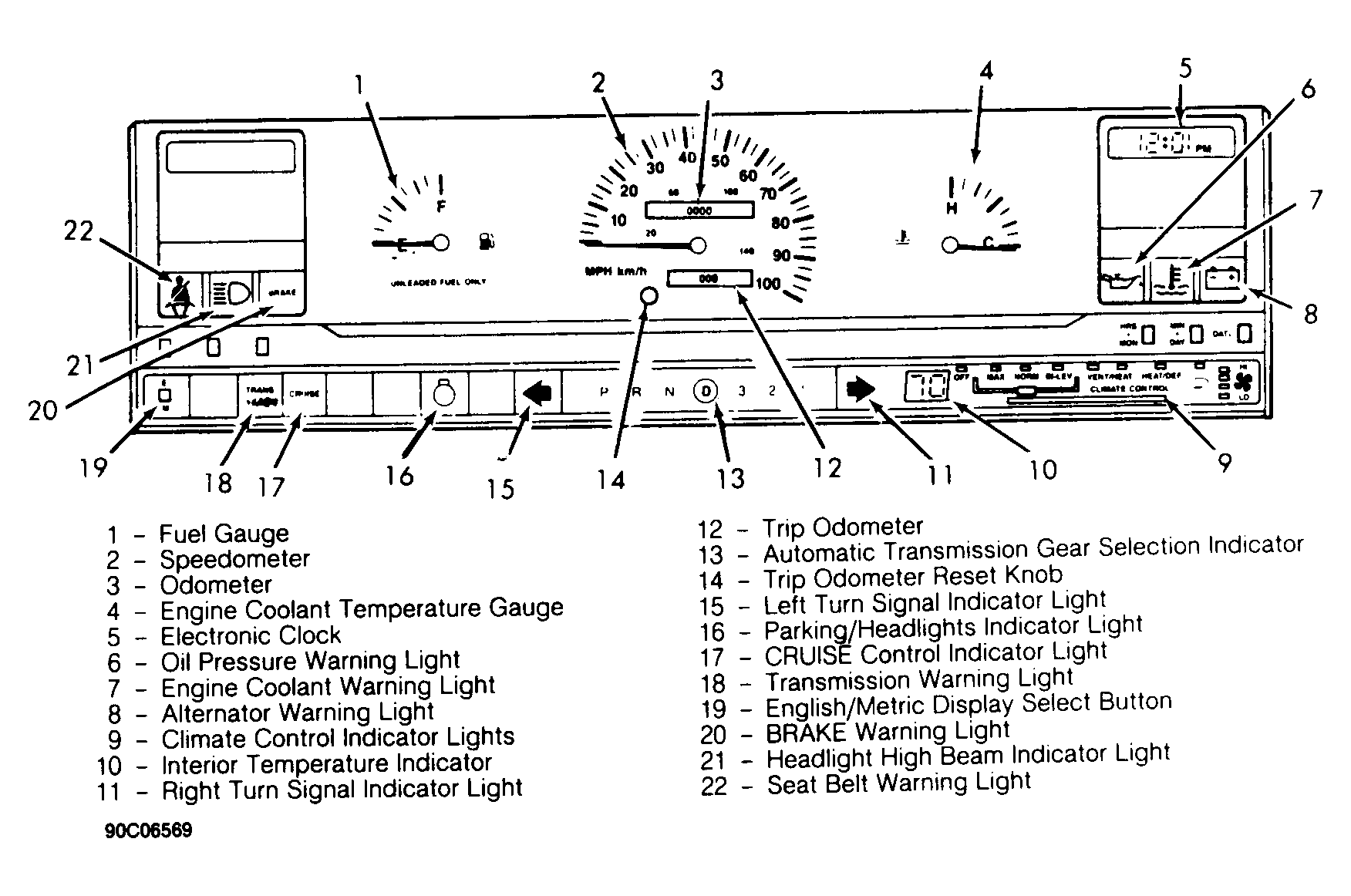

Fig 1: Standard Instrument Cluster (1988-89)
G90C06569Courtesy of CHRYSLER MOTORS.
Fig 2: Instrument Cluster (1990-92)
G90E06570Courtesy of CHRYSLER MOTORS.

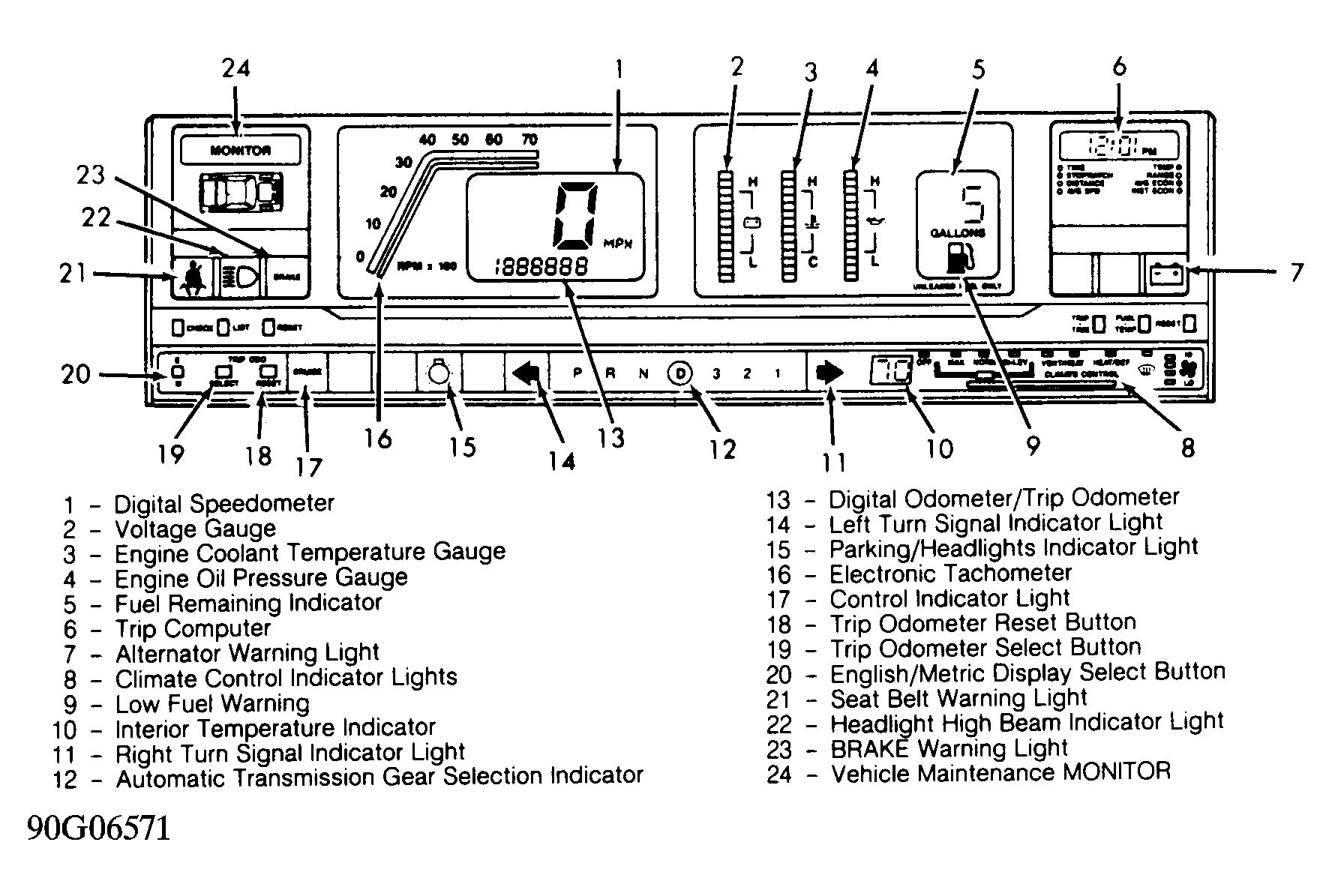

Fig 3: Digital Instrument Cluster (1988)
G90G06571Courtesy of CHRYSLER MOTORS.
