Power Mirror Motor Test

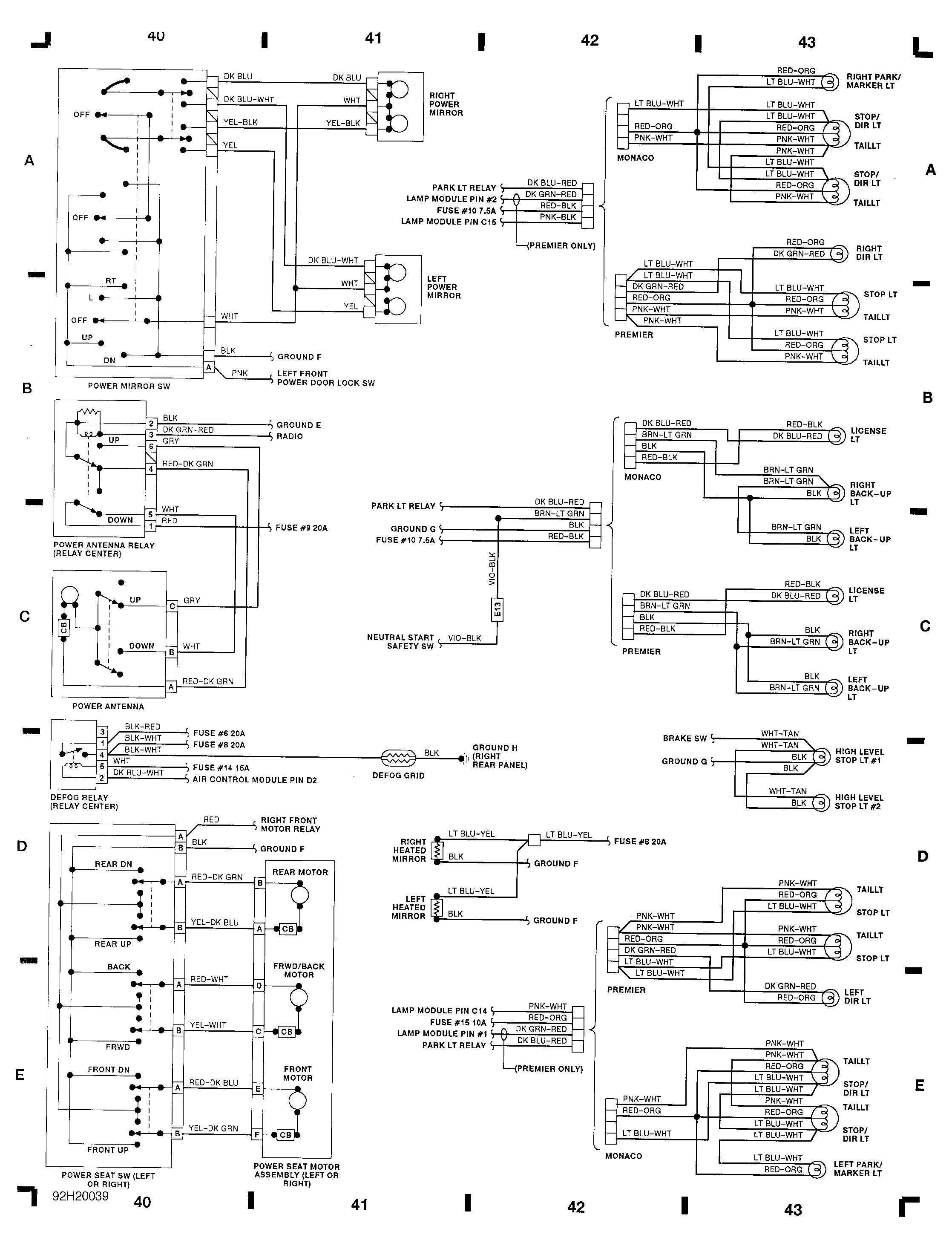

Ground terminal "C" (White wire) of left and right mirror motor connectors. Using a jumper wire, jump power from terminal "A" (Pink wire) of mirror switch harness connector to terminal "A" (Yellow/Black wire) of left and right mirror motor connectors for up and down check. Jump power to terminal "B" (Dark Blue wire) of mirror motor connector. Motors should move and stop at end of mirror travel. Reverse power and ground leads. Motors should move in opposite direction. If either motor does not operate as specified, replace defective motor. See Figure .
