Rear Wiper Switch Test: Eclipse

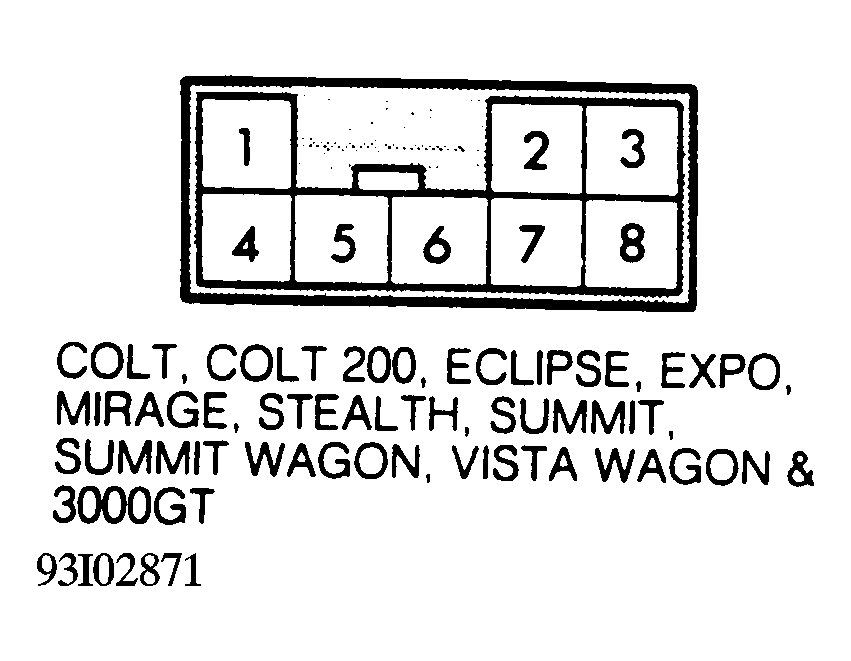

  1. Remove wiper switch from instrument panel and disconnect wiper switch. Place wiper switch in OFF position. Continuity should exist between terminals No. 4 and 5. See Figure and Figure . Place wiper switch in ON position. Continuity should exist between terminals No. 5 and 6.
  2. Place wiper switch in INT position. Continuity should exist between terminals No. 2 and 8, and between terminals No. 4 and 5. Depress washer switch. Continuity should exist between terminals No. 6 and 7. Continuity between terminals No. 1 and 3 should exist in all positions (light circuit).
