NS-4C: Repairing Crank Angle Sensor
NS-4C: Repairing Crank Angle Sensor

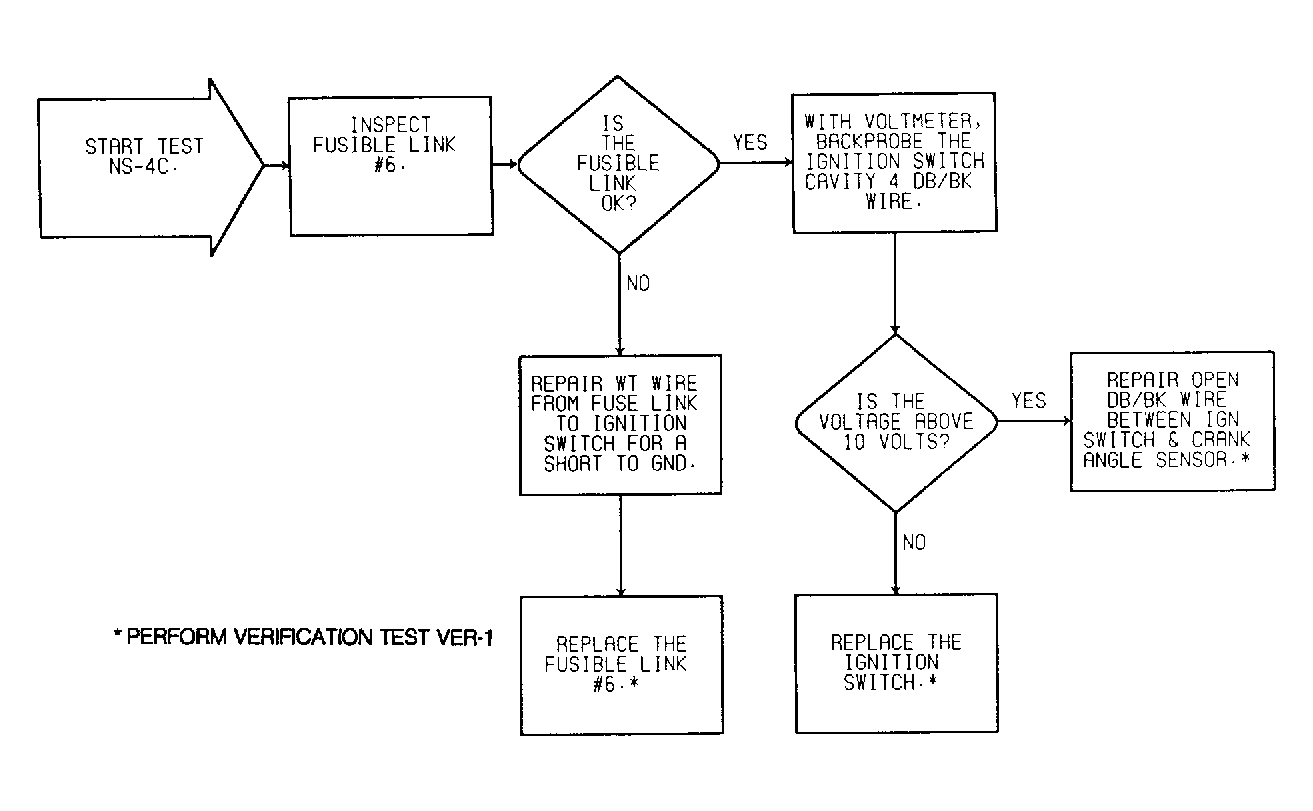

Fig 1: Test NS-4C Flow Chart Repairing Crank Angle Sensor
