NS-6B: Checking DRB-II Communication
NS-6B: Checking DRB-II Communication

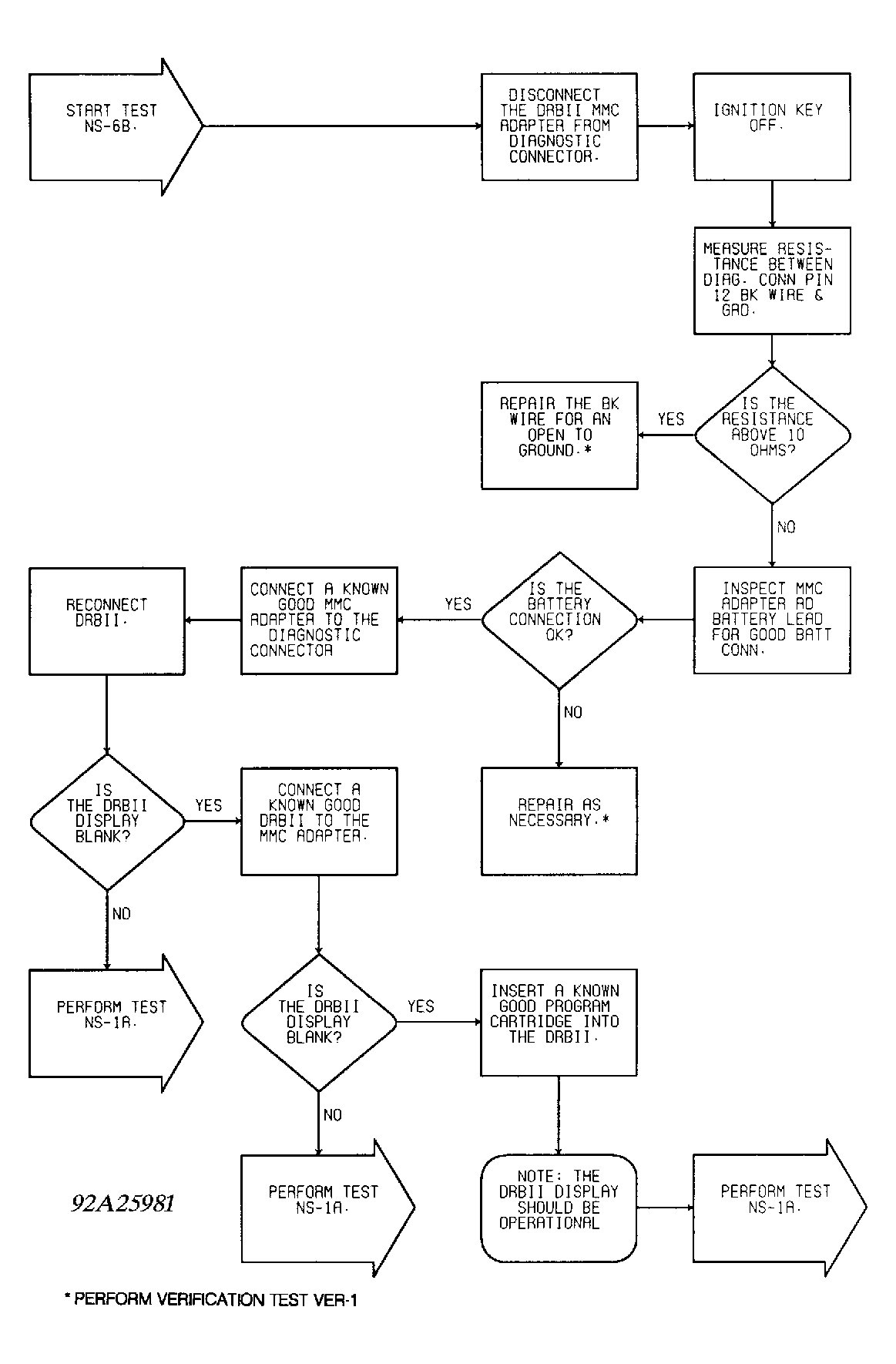

Fig 1: Test NS-6B Flow Chart Checking DRB-II Communication
