NS-6C: Checking DRB-II Communication

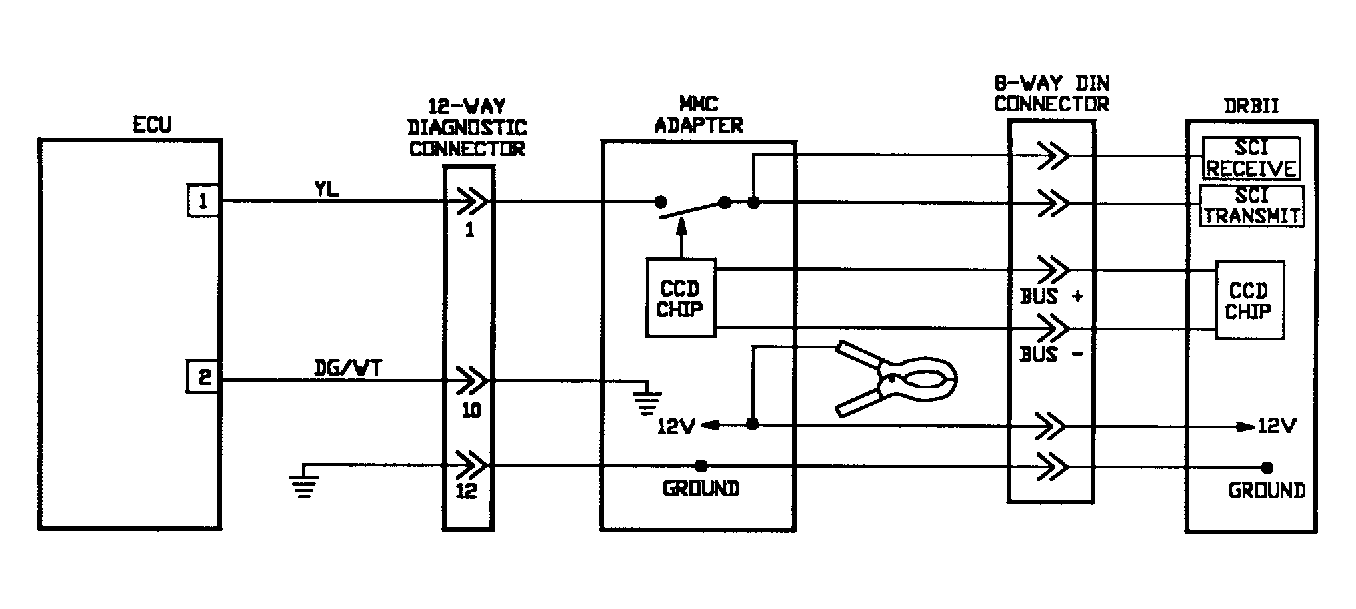

Fig 1: Test NS-6C Schematic (1 Of 3) Checking DRB-II Communication

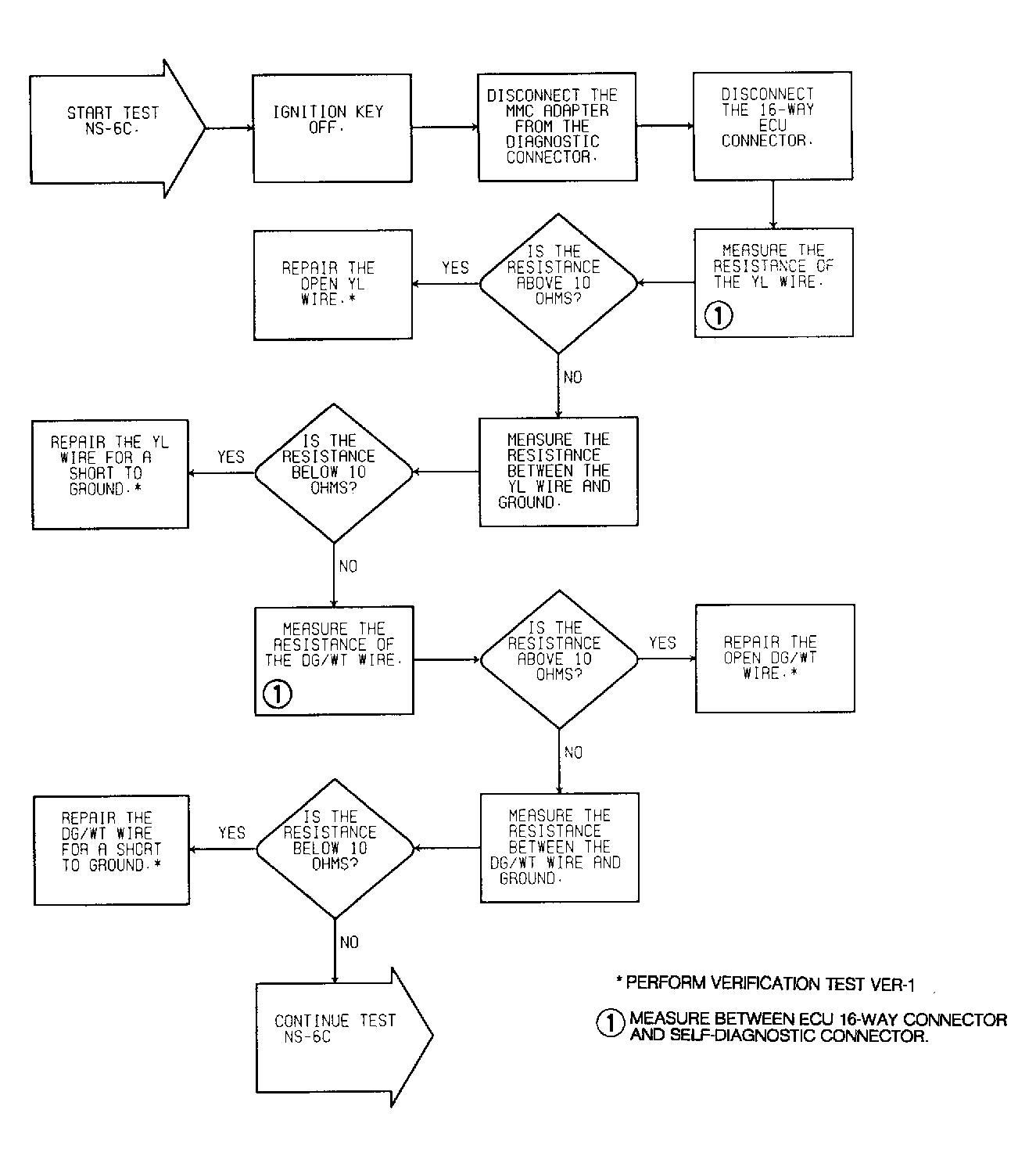

Fig 2: Test NS-6C Flow Chart (1 Of 3) Checking DRB-II Communication

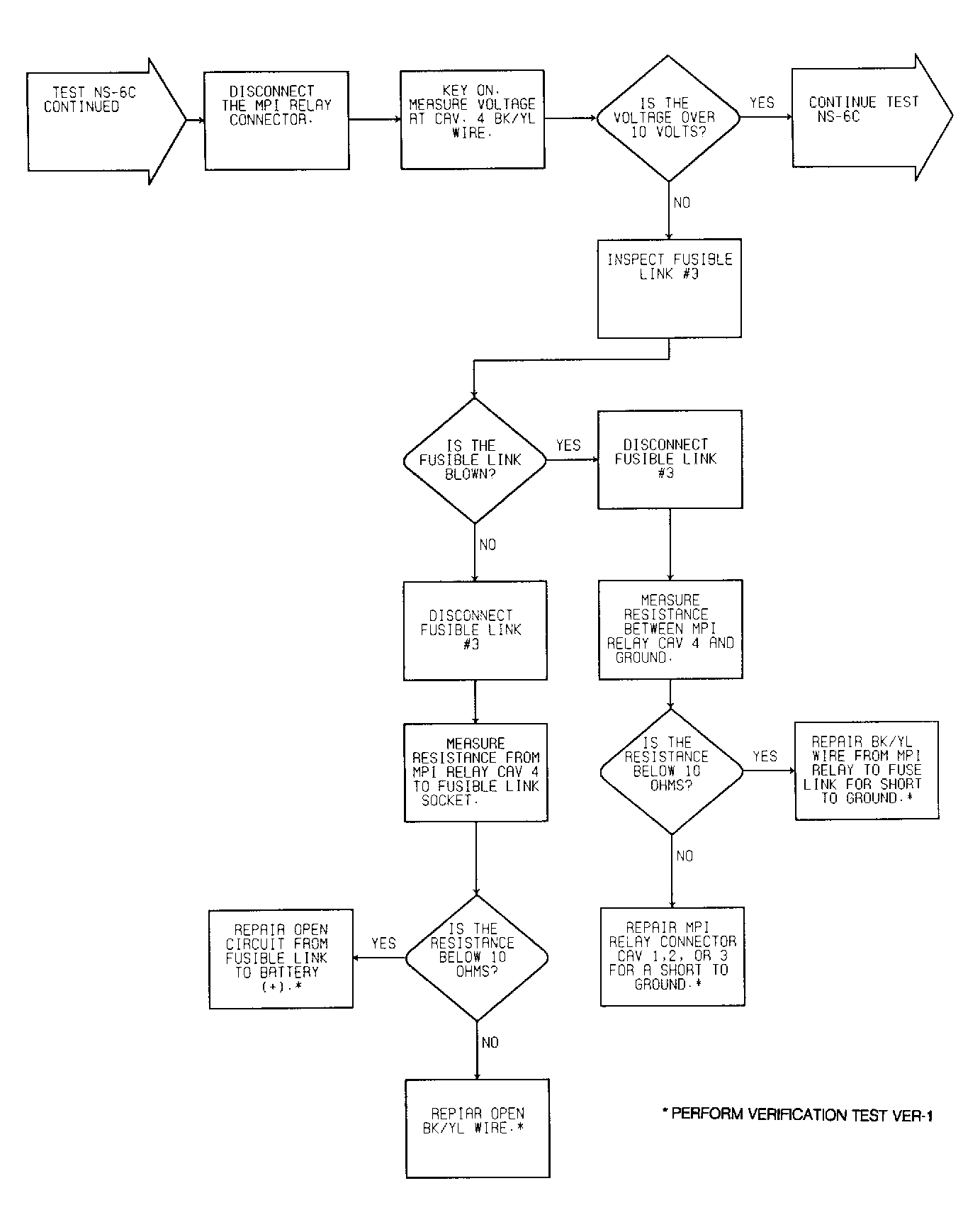

Fig 3: Test NS-6C Flow Chart (2 Of 3) Checking DRB-II Communication

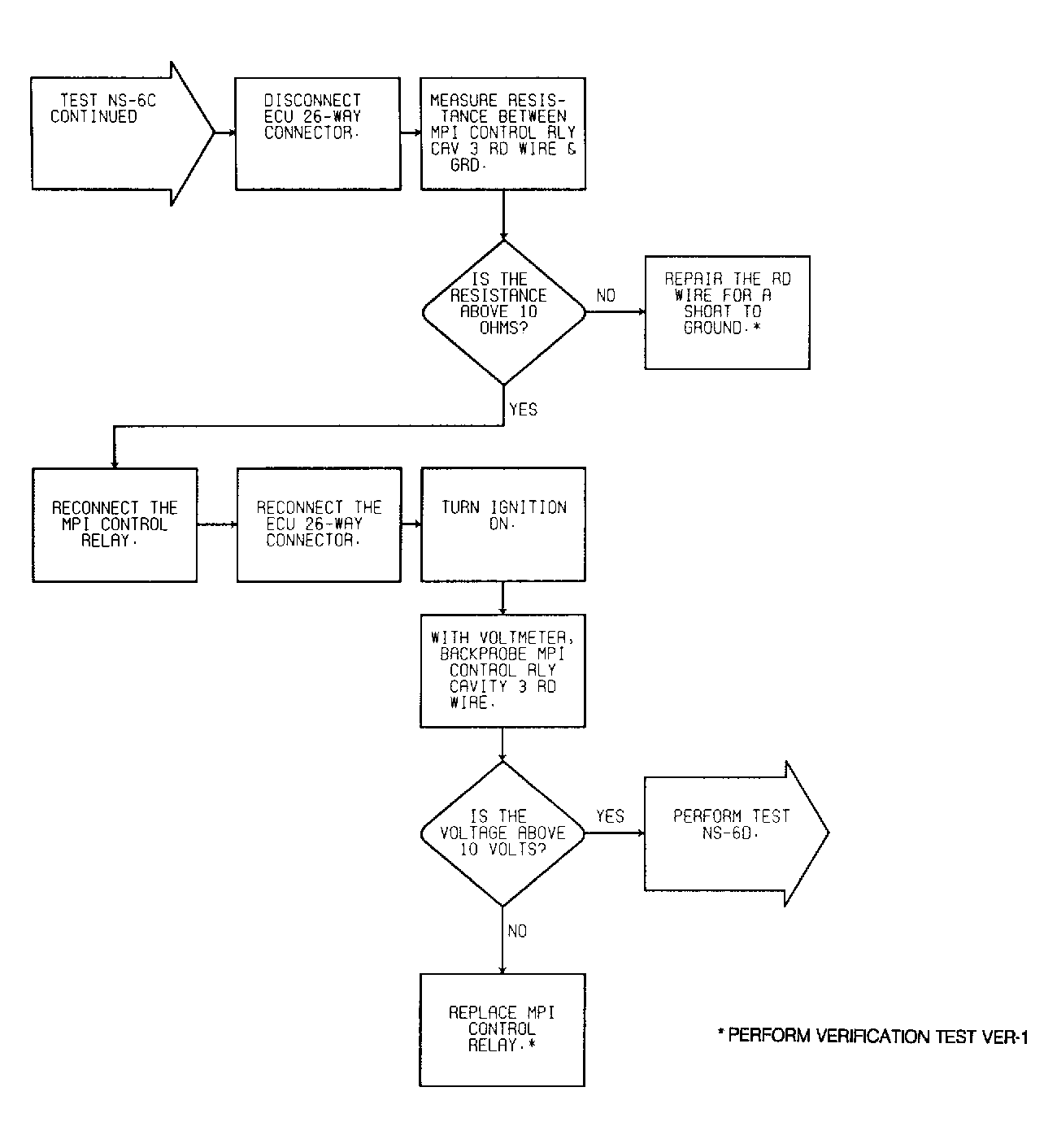

Fig 4: Test NS-6C Flow Chart (3 Of 3) Checking DRB-II Communication
