NS-6D: Checking DRB-II Communication
NS-6D: Checking DRB-II Communication

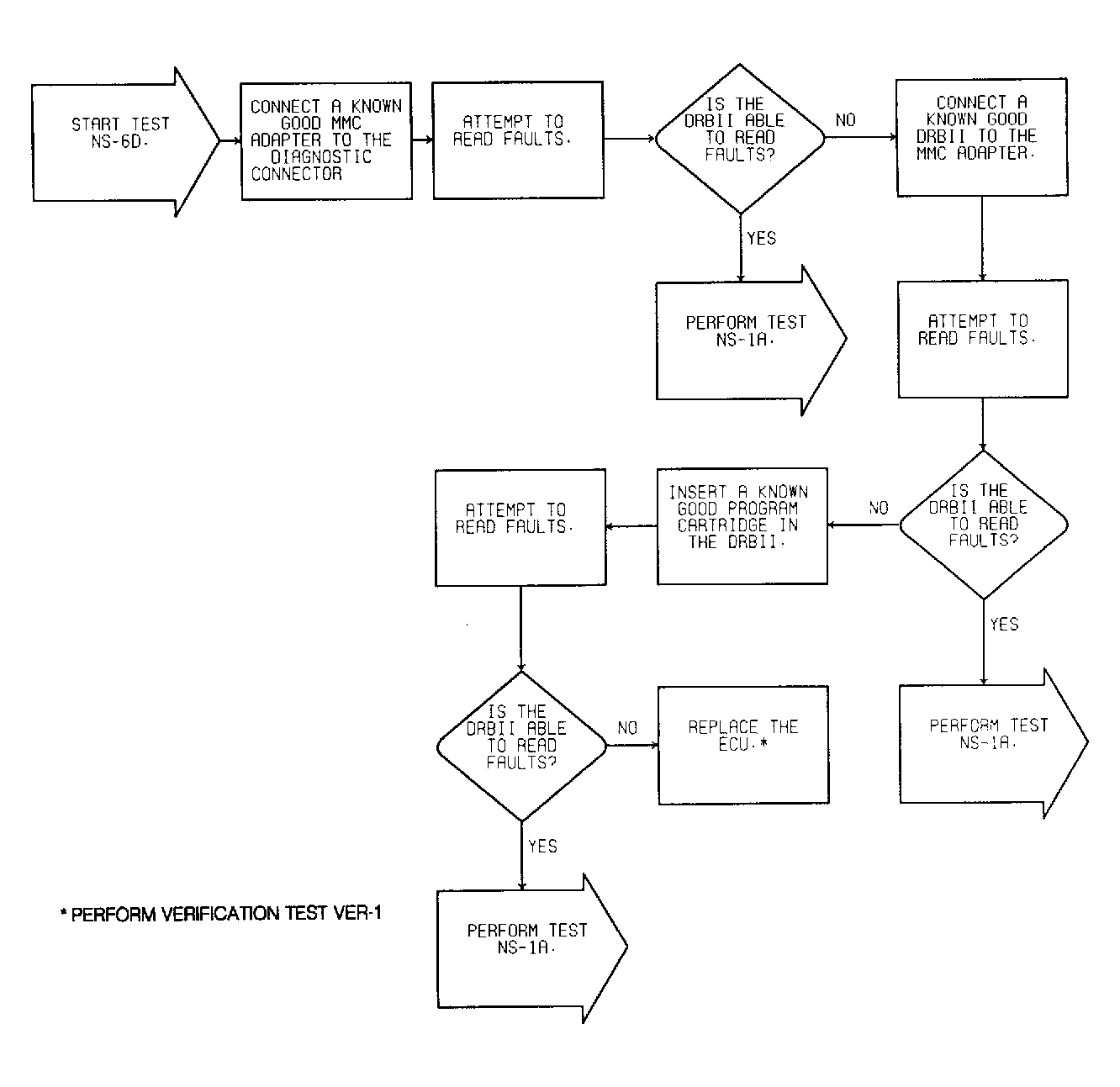

Fig 1: Test NS-6D Flow Chart Checking DRB-II Communication
