Wiring Diagrams
Fig 1: Anti-Lock Brake System Wiring Diagram (Laser & Talon)

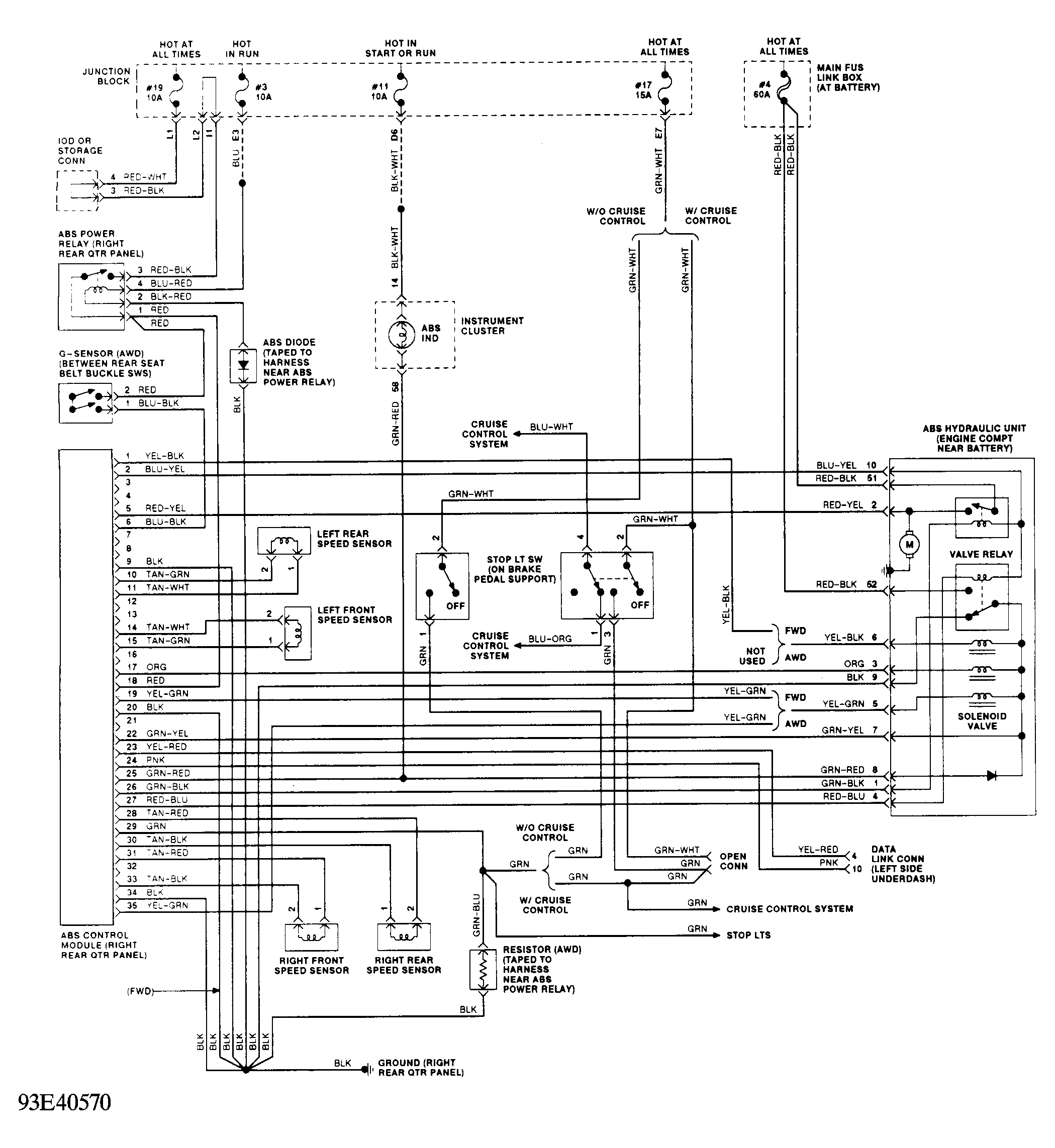

Fig 2: Anti-Lock Brake System Wiring Diagram (1993 Laser & Talon)
