Blower Resistor Test

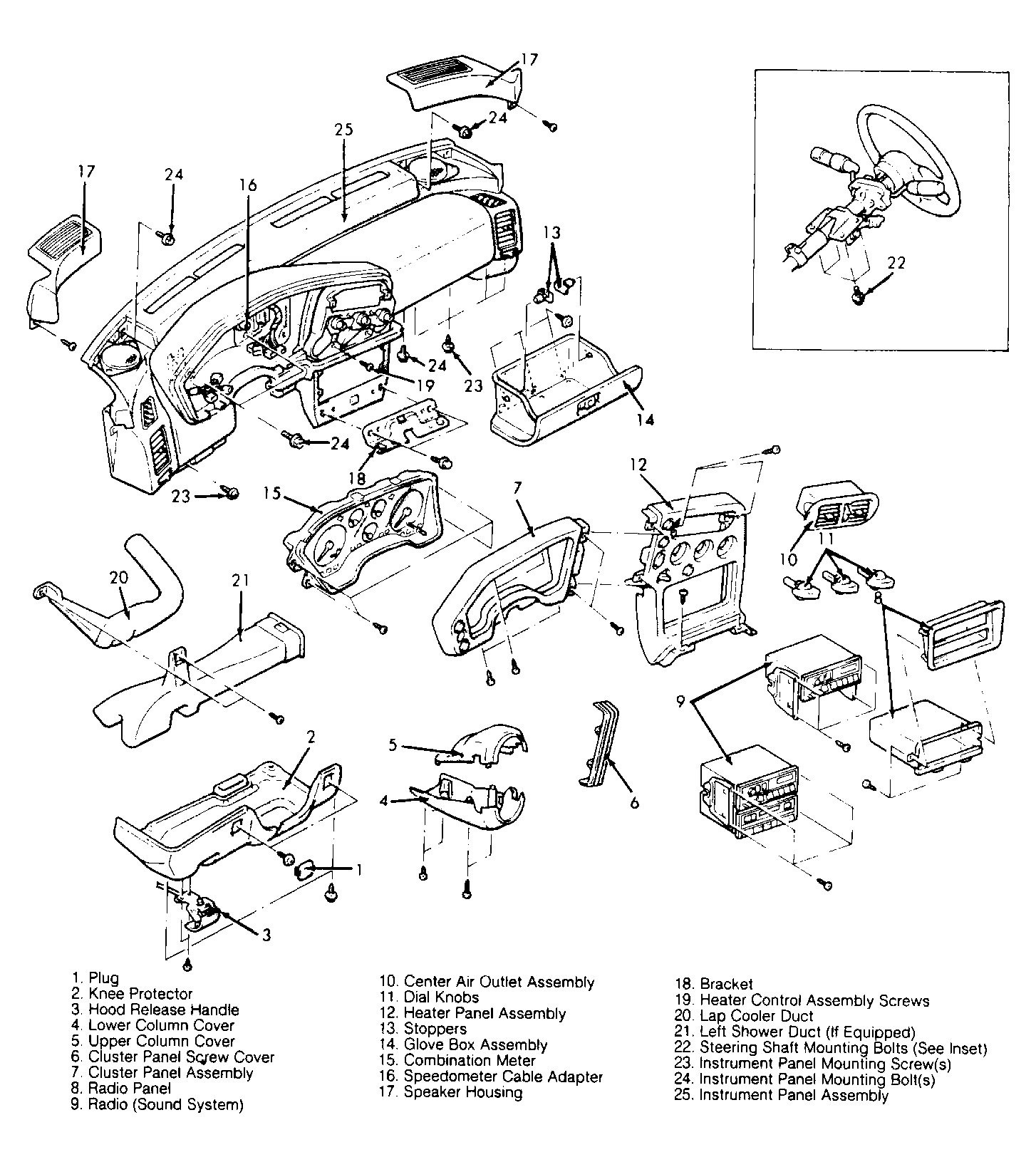

Open glove box, and remove stopper. See Figure. Tilt glove box down and forward. Disconnect blower resistor connector. See Fig 1. Using an ohmmeter, measure resistance between resistor terminals as shown in BLOWER RESISTOR SPECIFICATIONS table. If resistance is not within specification, replace blower resistor.
BLOWER RESISTOR SPECIFICATIONS
| Terminals | Ohms |
|---|---|
| 3 & 2 | 1.70-1.96 |
| 3 & 4 | 0.81-0.93 |
| 3 & 1 | 0.29-0.33 |
