Component Location

AUTOMATIC SEAT BELT COMPONENT LOCATIONS

Application

⁽¹⁾ Symbol

Automatic Seat Belt Control Unit

Fig 5 "C"

Automatic Seat Belt Motor

Fig 6 "E"

Automatic Seat Belt Motor Relay

Fig 6 "D"

Buckle Switch

Fig 8 "G"

Buzzer

Fig 12 "K"

Door Latch Switch

Fig 3 "B"

Fasten Switch

Fig 2 "A"

Fuse Panel (Interior Junction Block

Fig 4 Under Left Side Of Instrument Panel.

Key Reminder Switch

Fig 10 "I"

Outer Switch

Fig 7 "F"

Release Switch

Fig 9 "H"

Seat Belt Warning Light

Fig 11 "J"

Sub Fusible Link No. 6 (Green, 40A)

In Engine Compartment Relay Box, Right Front Corner Of Engine Compartment.

System Ground No. 8

Behind Left Kick Panel, Above Passing Control Relay.

Body Ground No. 9

Rear Of Vehicle, On Liftgate Latch.

Body Ground No. 11

Under Driver's Seat, On Front Floor Crossmember.

⁽¹⁾	To view symbols and component location overview, see Fig 1 .

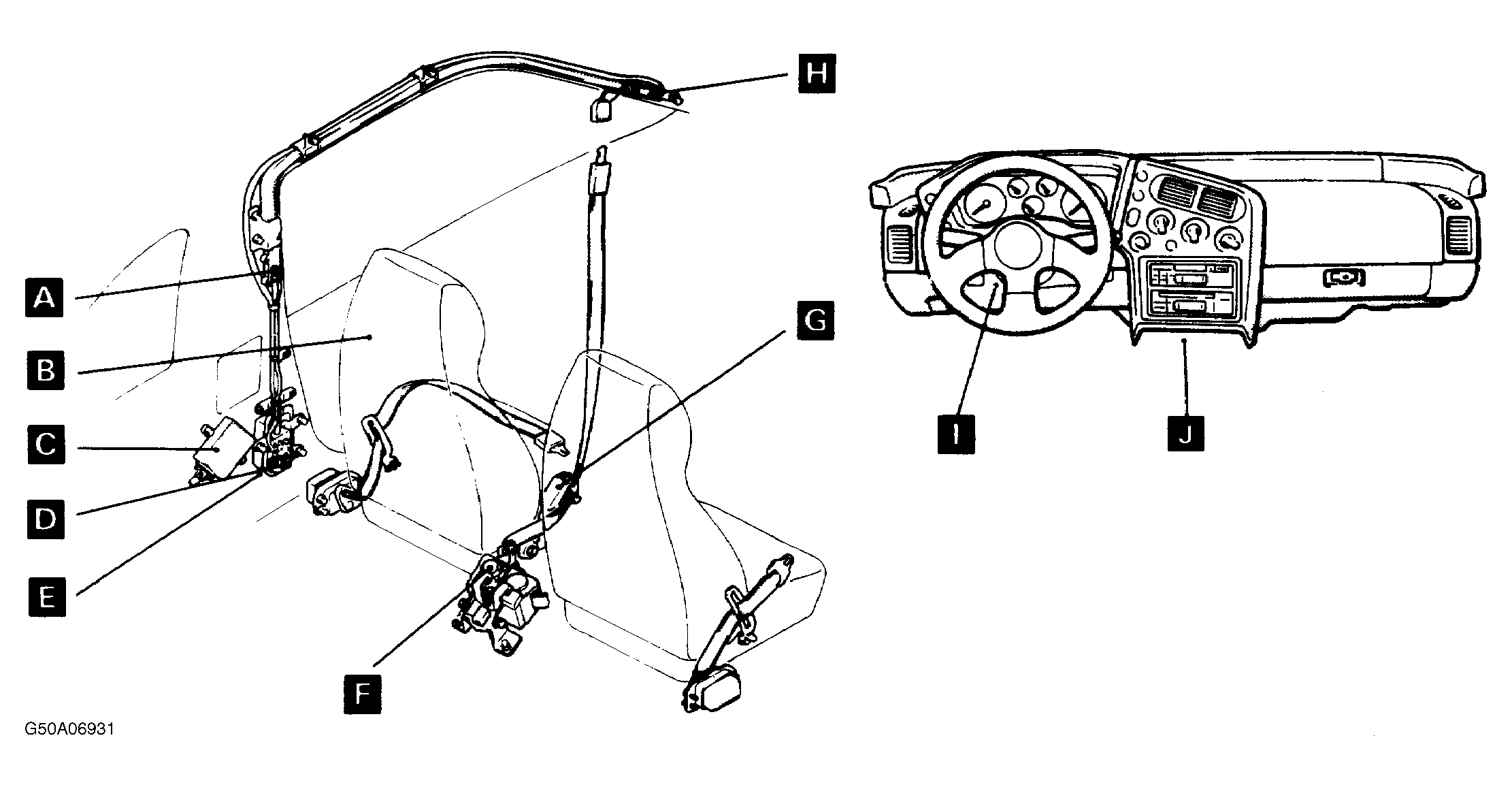

Fig 1: Automatic Seat Belt Component Locations

Courtesy of CHRYSLER MOTORS

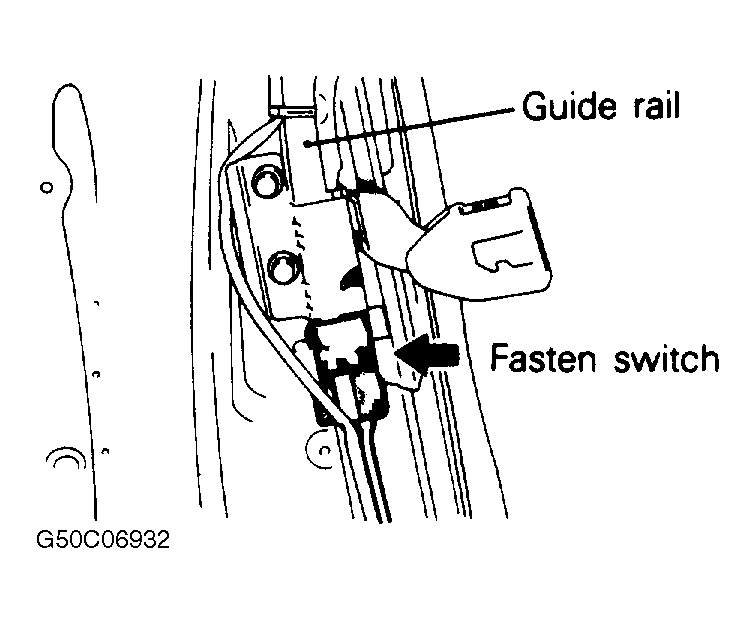

Fig 2: Guide Rail & Fasten Switch (Symbol A)

Courtesy of CHRYSLER MOTORS

Fig 3: Door Latch Switch (Symbol B)

Courtesy of CHRYSLER MOTORS

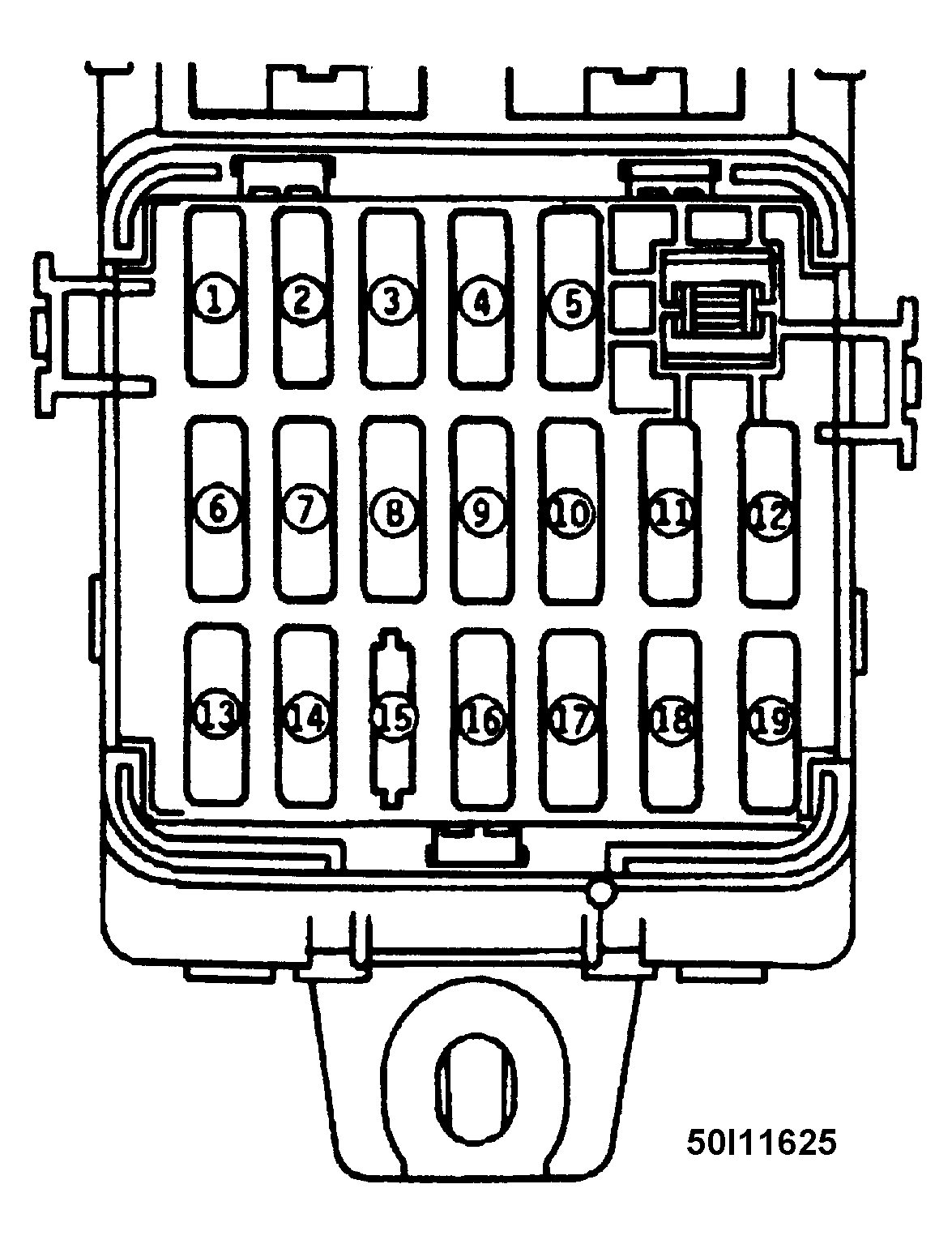

Fig 4: Fuse Panel Component Identification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA, INC.

Fig 5: Automatic Seat Belt Control Unit (Symbol C)

Courtesy of CHRYSLER MOTORS

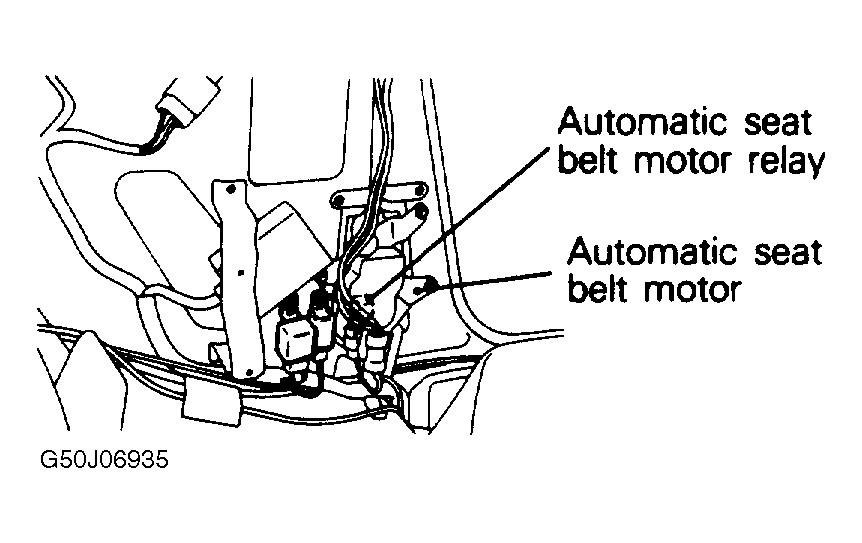

Fig 6: Automatic Seat Belt Motor Relay & Motor (Symbol D, E)

Courtesy of CHRYSLER MOTORS

Fig 7: Outer Switch (Symbol F)

Courtesy of DAIMLERCHRYSLER CORP.

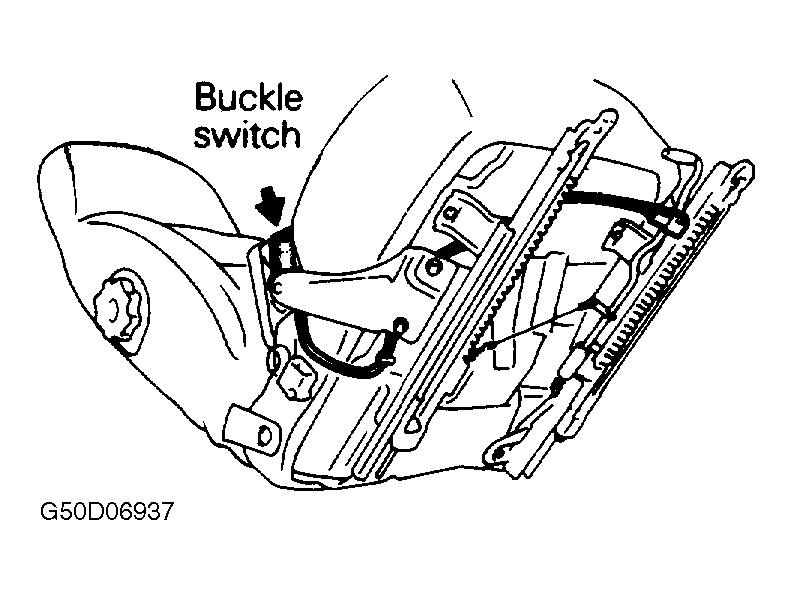

Fig 8: Buckle Switch (Symbol G)

Courtesy of CHRYSLER MOTORS

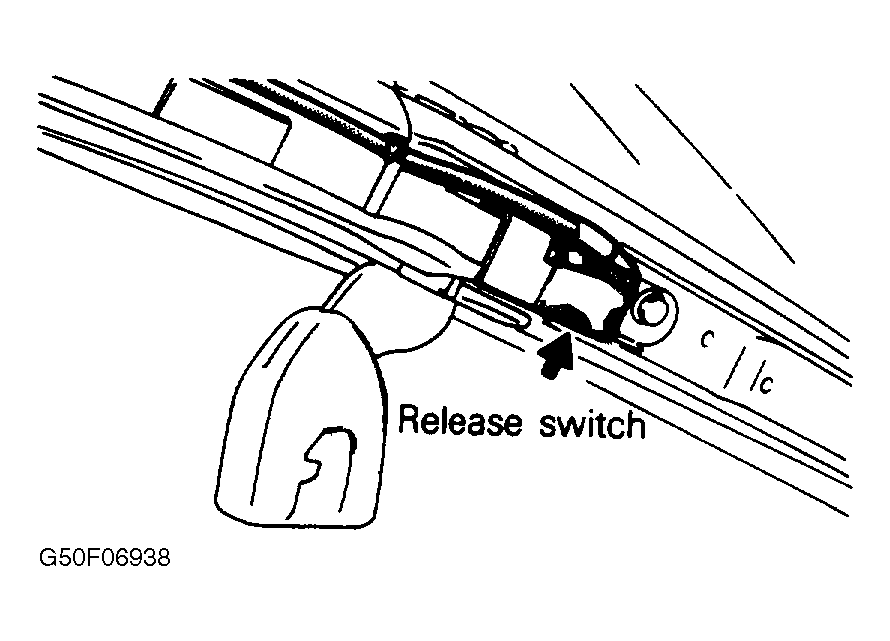

Fig 9: Release Switch (Symbol H)

Courtesy of CHRYSLER MOTORS

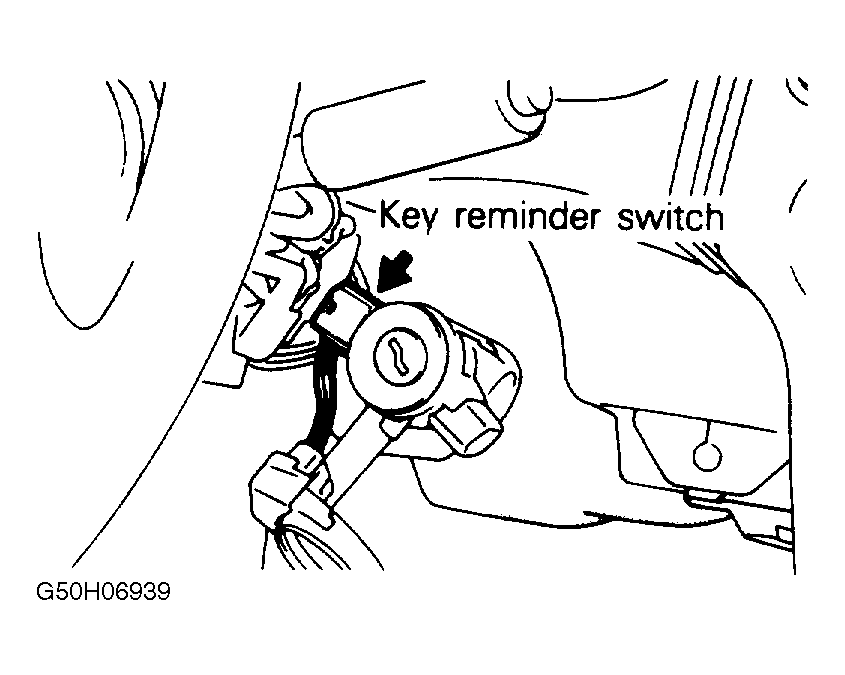

Fig 10: Key Reminder Switch (Symbol I)

Courtesy of CHRYSLER MOTORS

Fig 11: Seat Belt Warning Light (Symbol J)

Courtesy of CHRYSLER MOTORS

Fig 12: Buzzer (Symbol K)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
