Circuit Tests
During testing, diagnostic procedure(s) may also be referred to as a numbered chart. When performing circuit test, refer to the appropriate wiring diagrams. See WIRING DIAGRAMS .
AUTOMATIC SEAT BELT CIRCUIT TESTING
| Diagnostic Procedure | Circuit Test | (1) Figure | ||
|---|---|---|---|---|

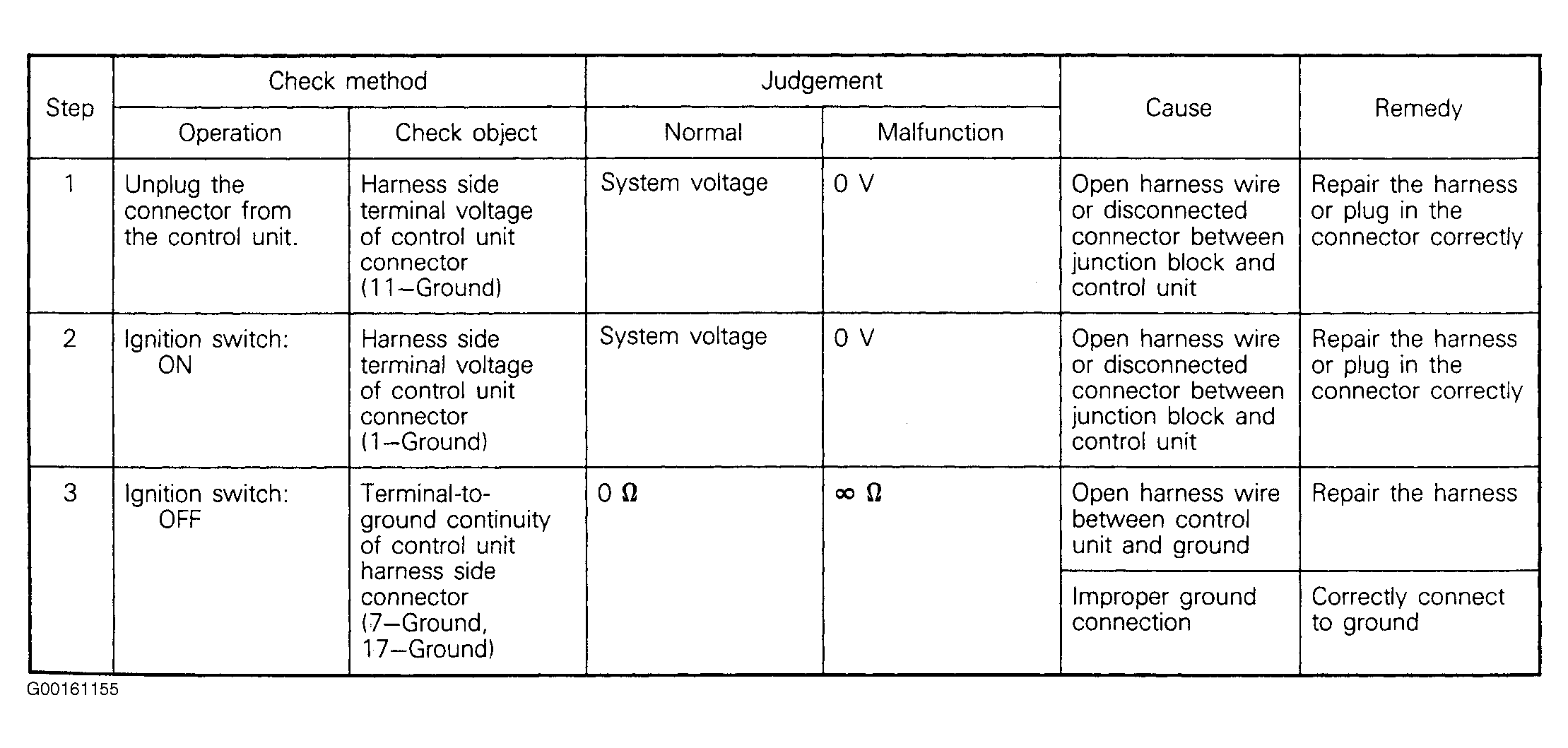

| Chart No. 1 | Control Unit Power Supply & Ground Circuit | Fig 1 | ||

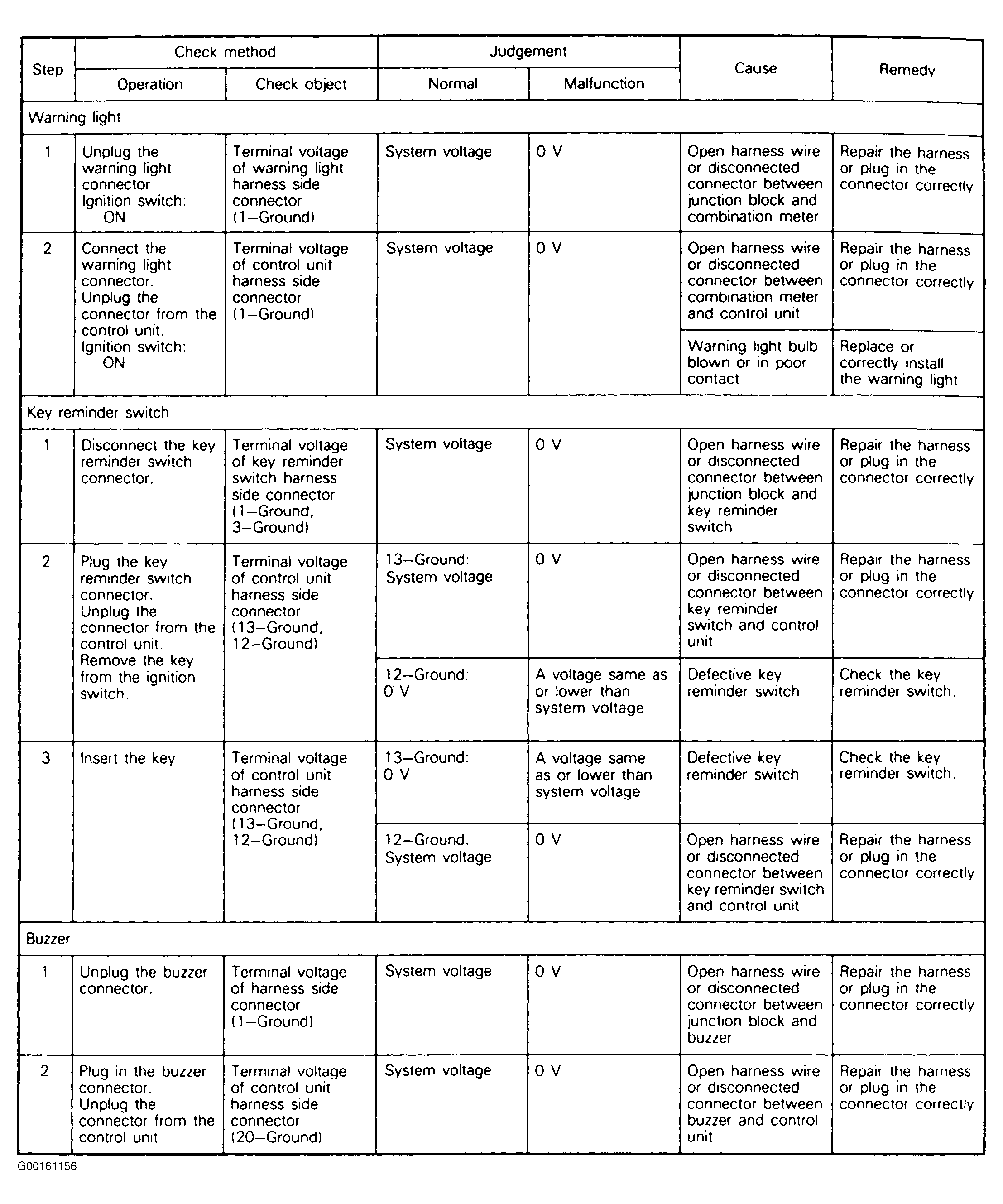

| Chart No. 2 | Buzzer Circuit | Fig 2 | ||
| Chart No. 2 | Key Reminder Switch Circuit | Fig 2 | ||
| Chart No. 2 | Seat Belt Warning Light Circuit | Fig 2 | ||

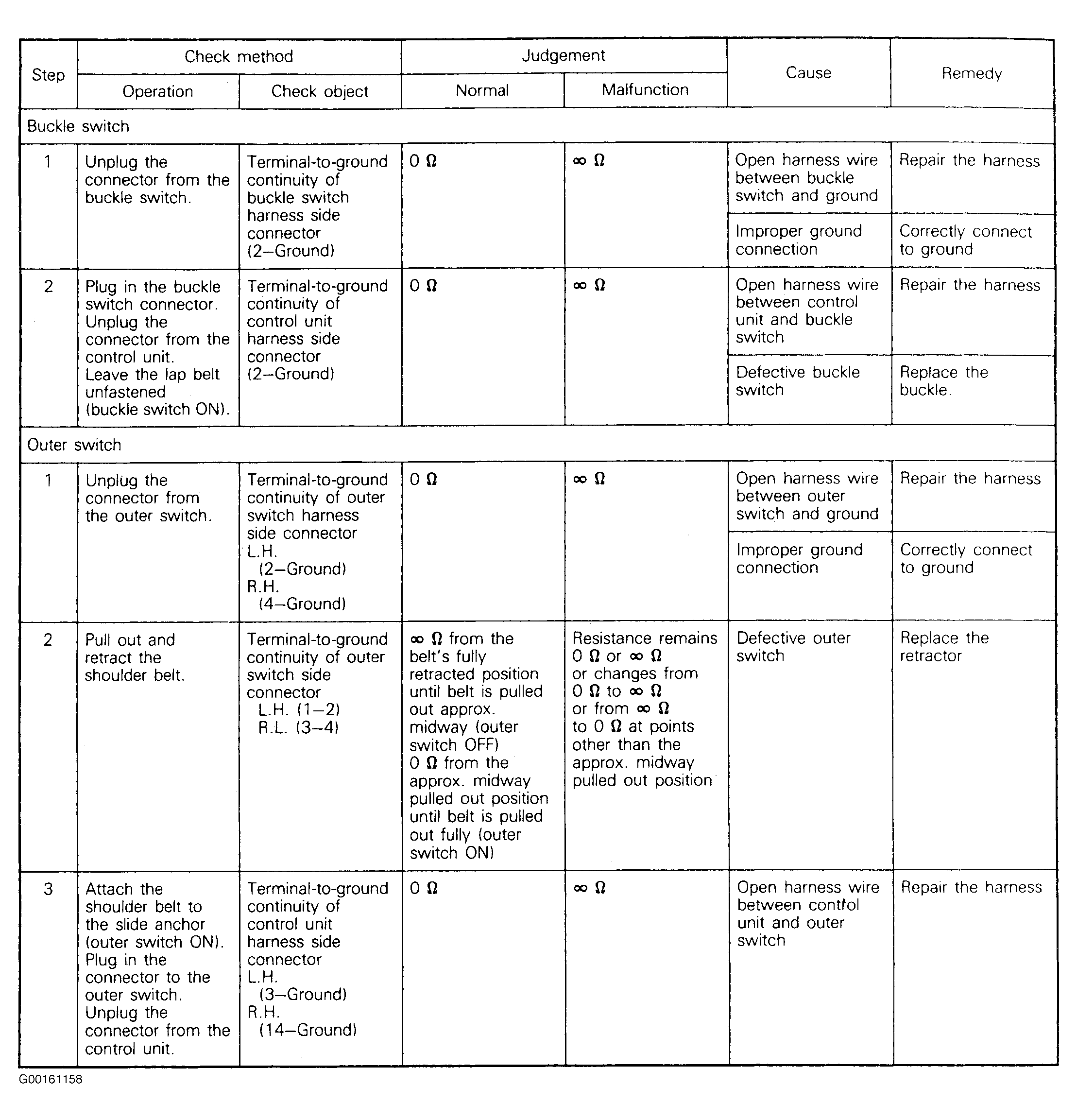

| Chart No. 3 | Buckle Switch Circuit | Fig 3 | ||
| Chart No. 3 | Outer Switch Circuit | Fig 3 | ||

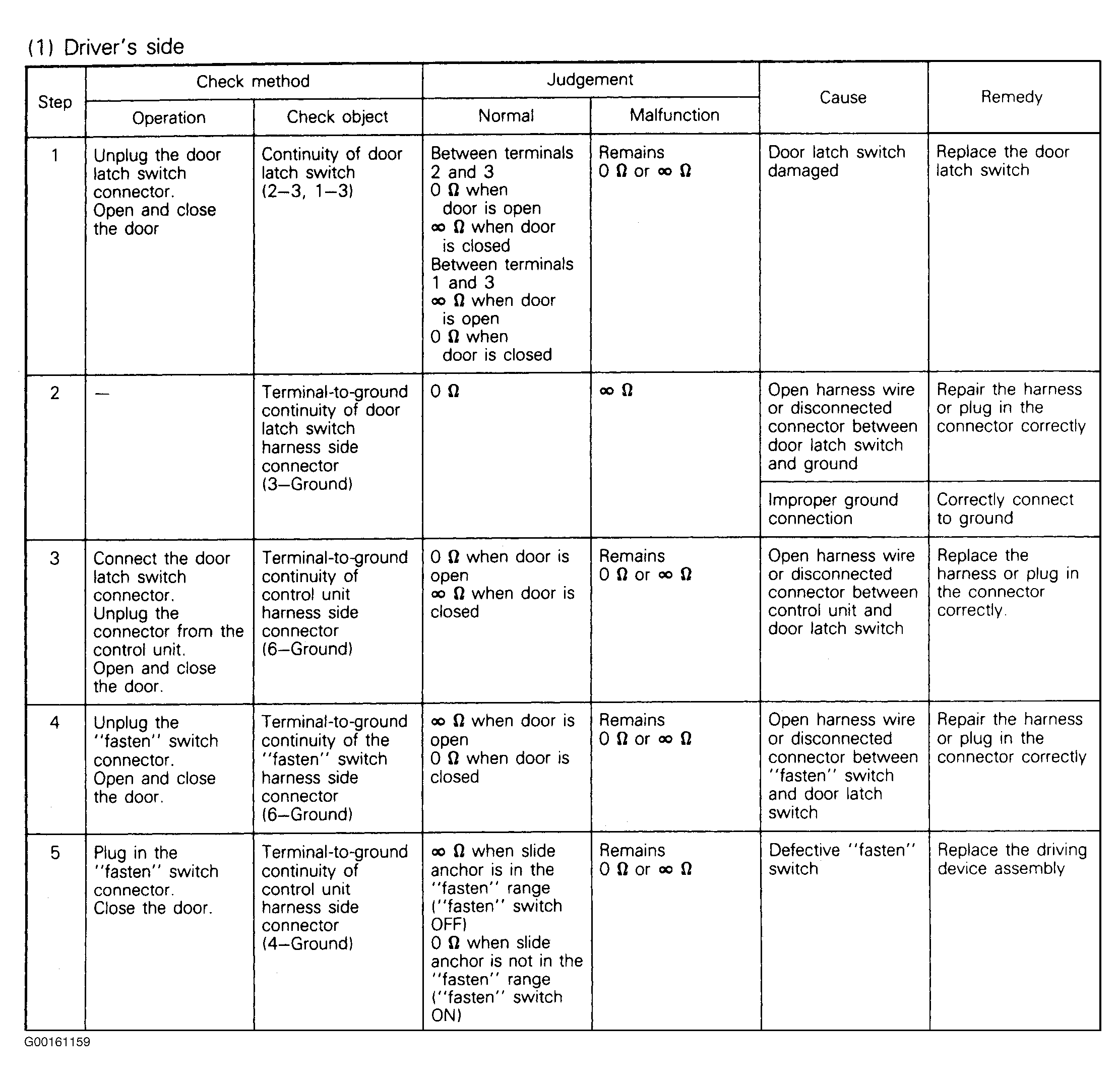

| Chart No. 4 | Fasten Switch Circuit (Driver's Side) | Fig 4 | ||
| Chart No. 4 | Latch Switch Circuit (Driver's Side) | Fig 4 | ||
| Chart No. 4 | Latch Switch Circuit (Passenger's Side) | Fig 5 | ||
| Chart No. 4 | Fasten Switch Circuit (Passenger's Side) | Fig 5 | ||
| Chart No. 4 | Release Switch Circuit (Passenger's Side) | Fig 5 | ||

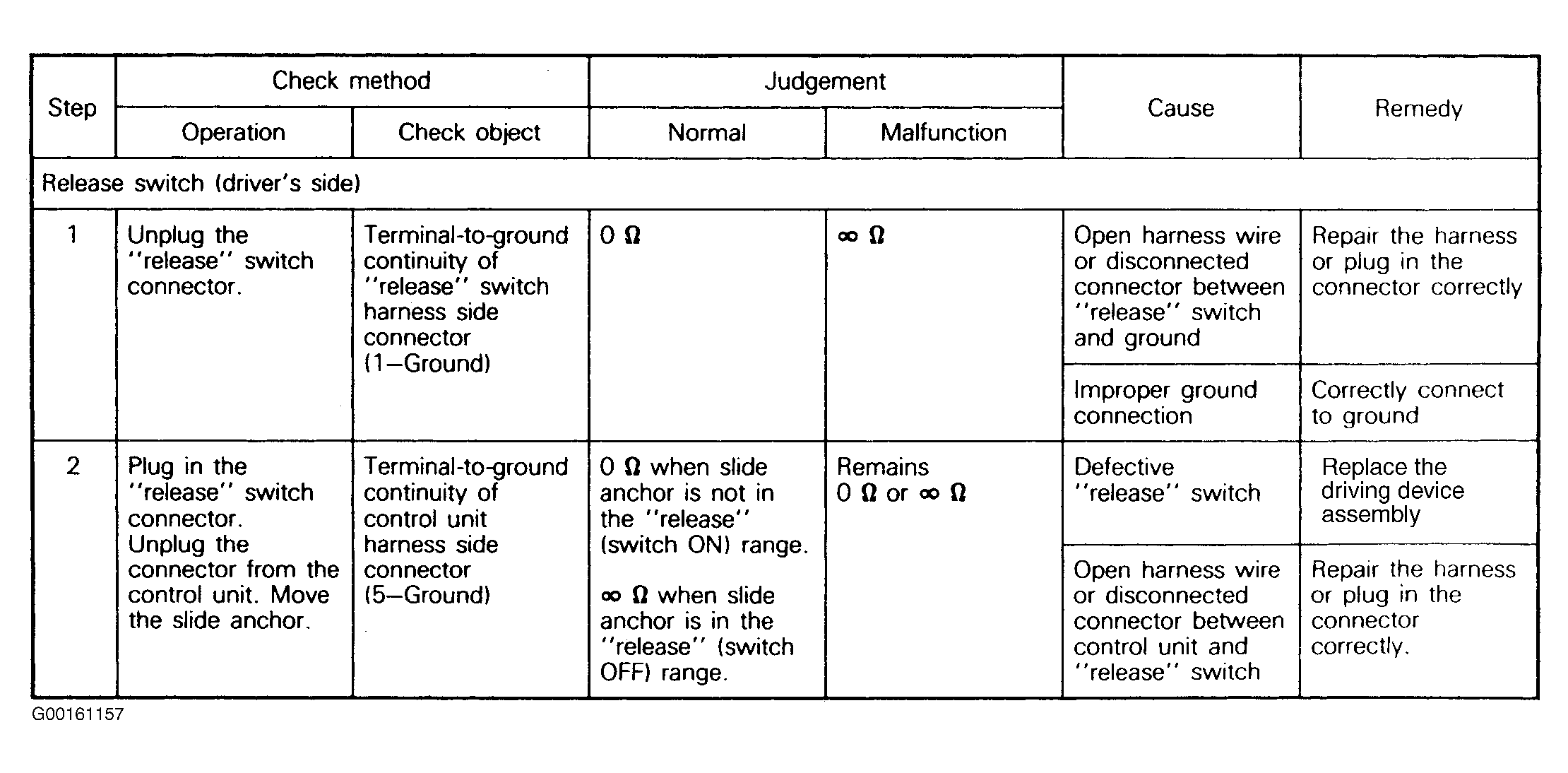

| Chart No. 4 | Release Switch Circuit (Driver's Side) | Fig 6 | ||

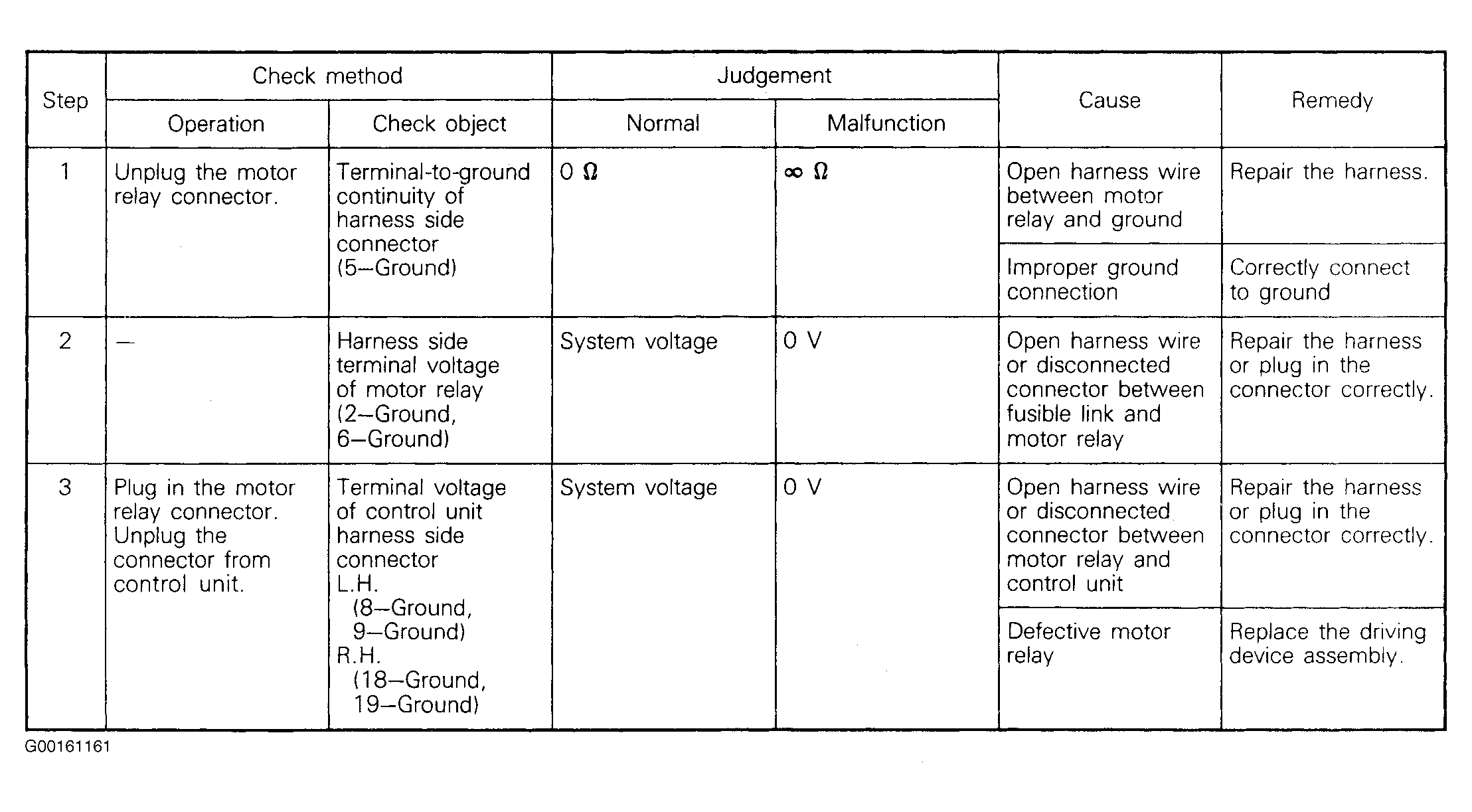

| Chart No. 5 | Motor Supply & Drive Circuits | Fig 7 | ||
|
||||

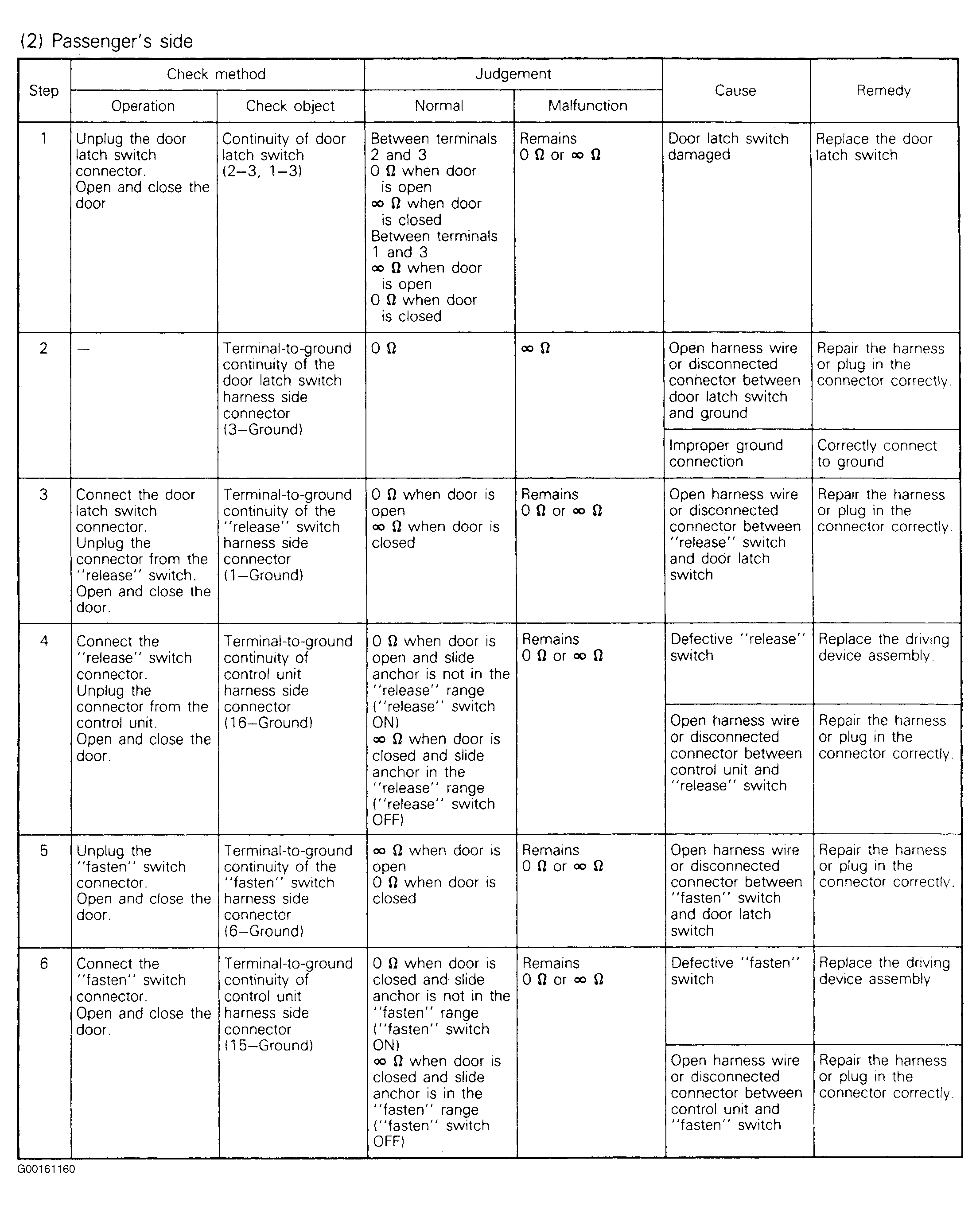

Fig 5: Diagnostic Procedure (Chart No. 4): Latch, Release & Fasten Switch Circuit (Passenger's Side)
