Wiring Diagrams

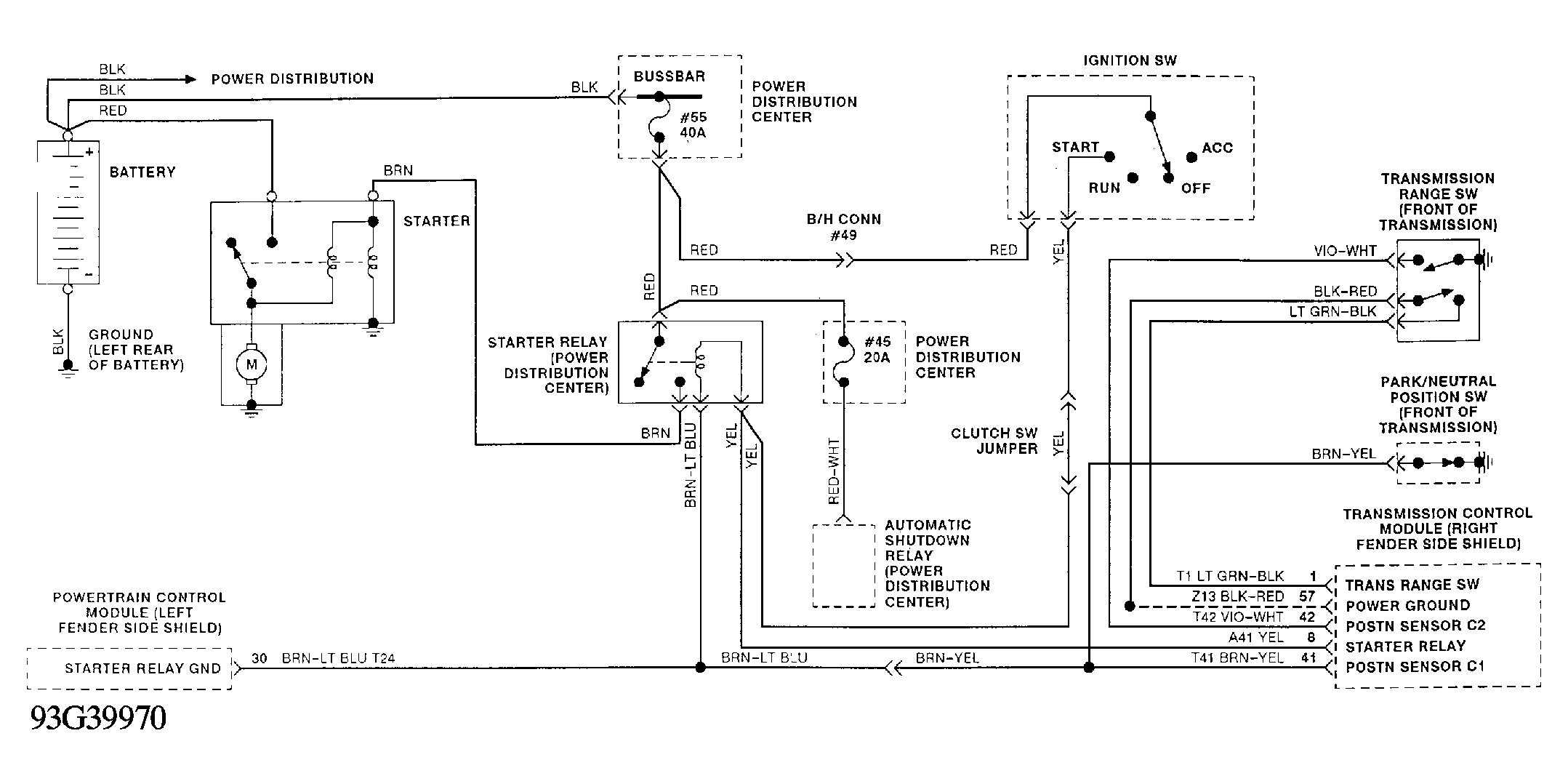

Fig 1: Starter Circuit (Acclaim, LeBaron Sedan & Spirit)

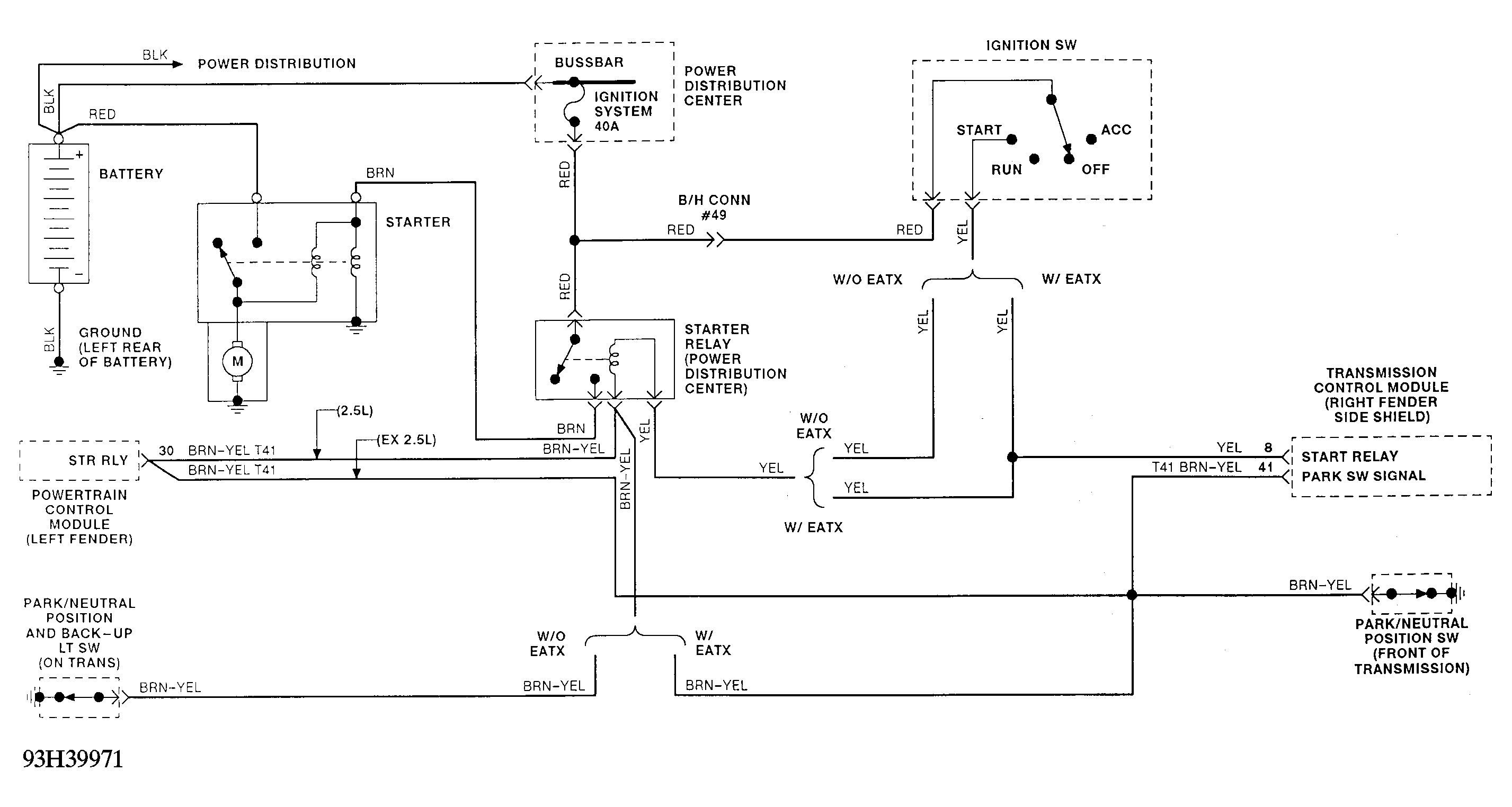

Fig 2: Starter Circuit (Concorde, Intrepid & Vision)

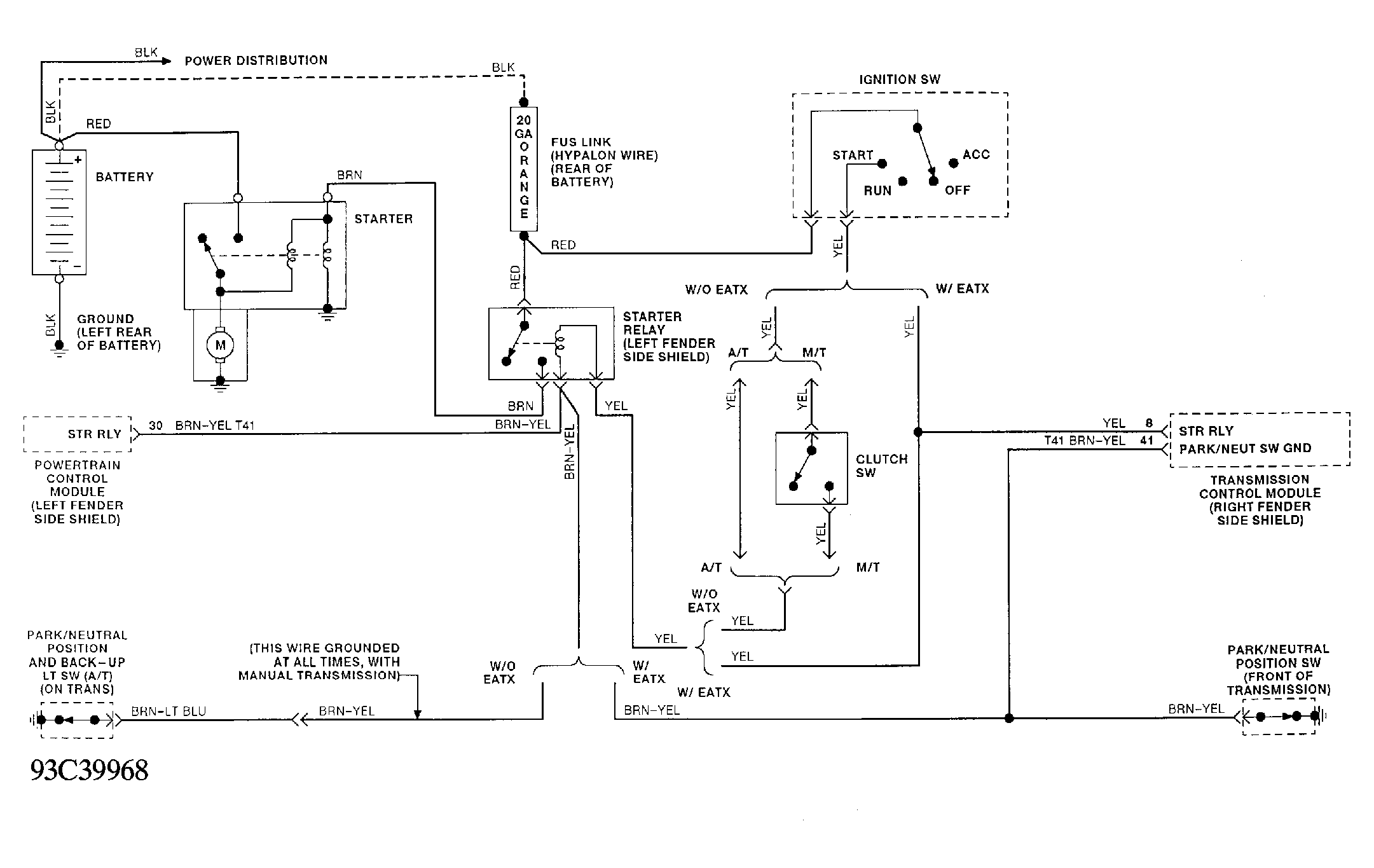

Fig 3: Starter Circuit (Daytona & LeBaron Convertible/Coupe W/EATX)

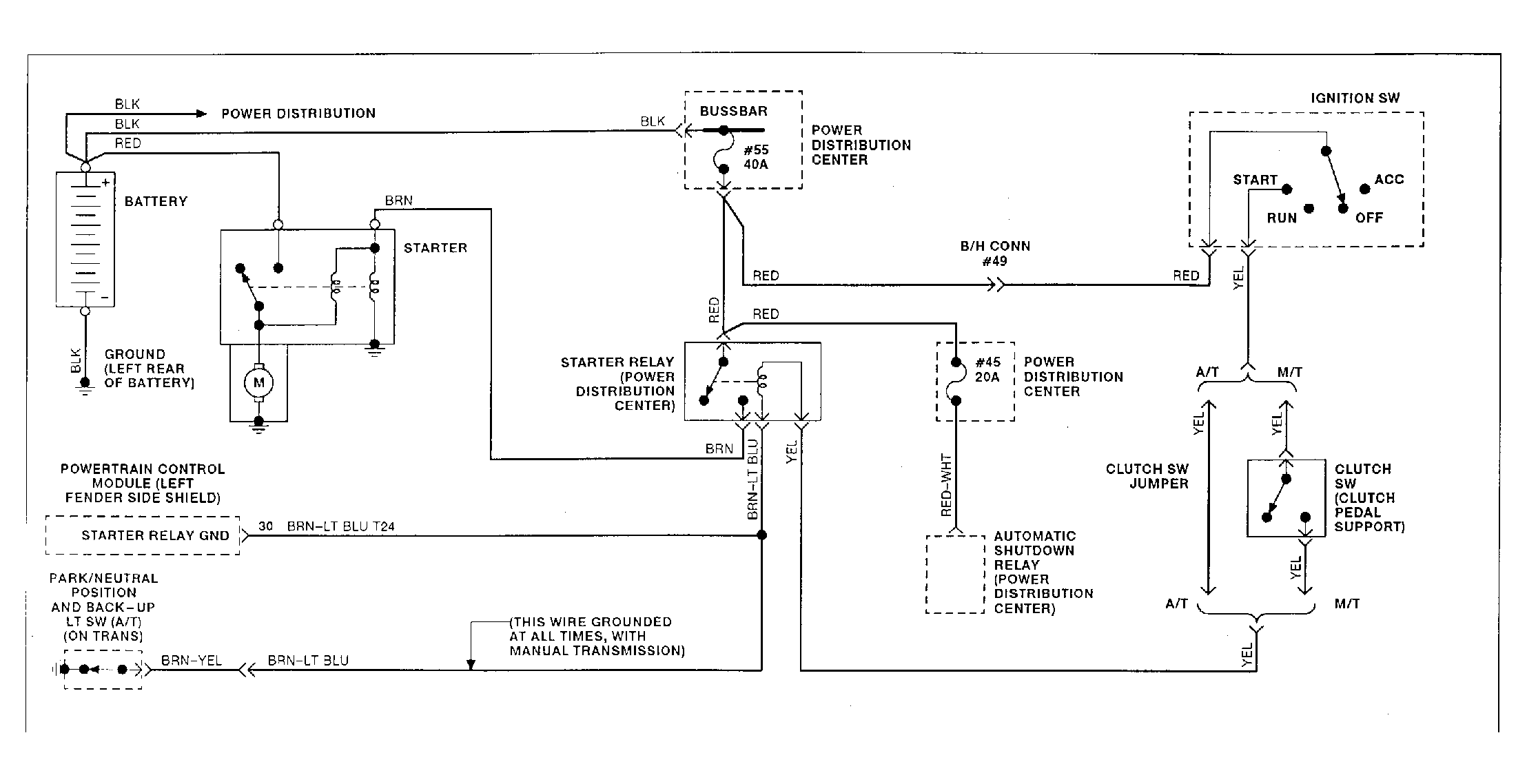

Fig 4: Starter Circuit (Daytona & LeBaron Convertible/Coupe W/O EATX)

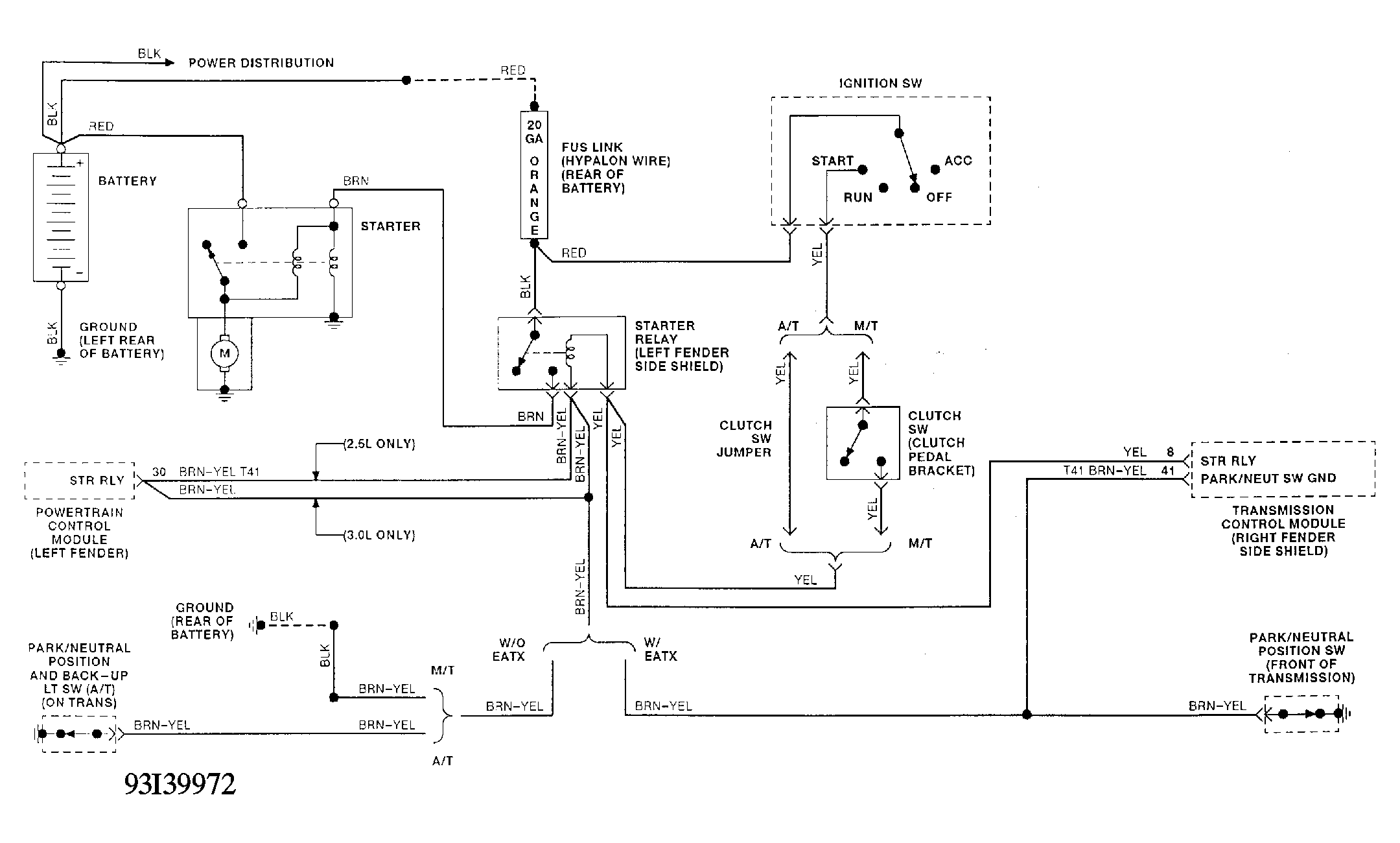

Fig 5: Circuit (Dynasty, Imperial, New Yorker & Fifth Avenue)

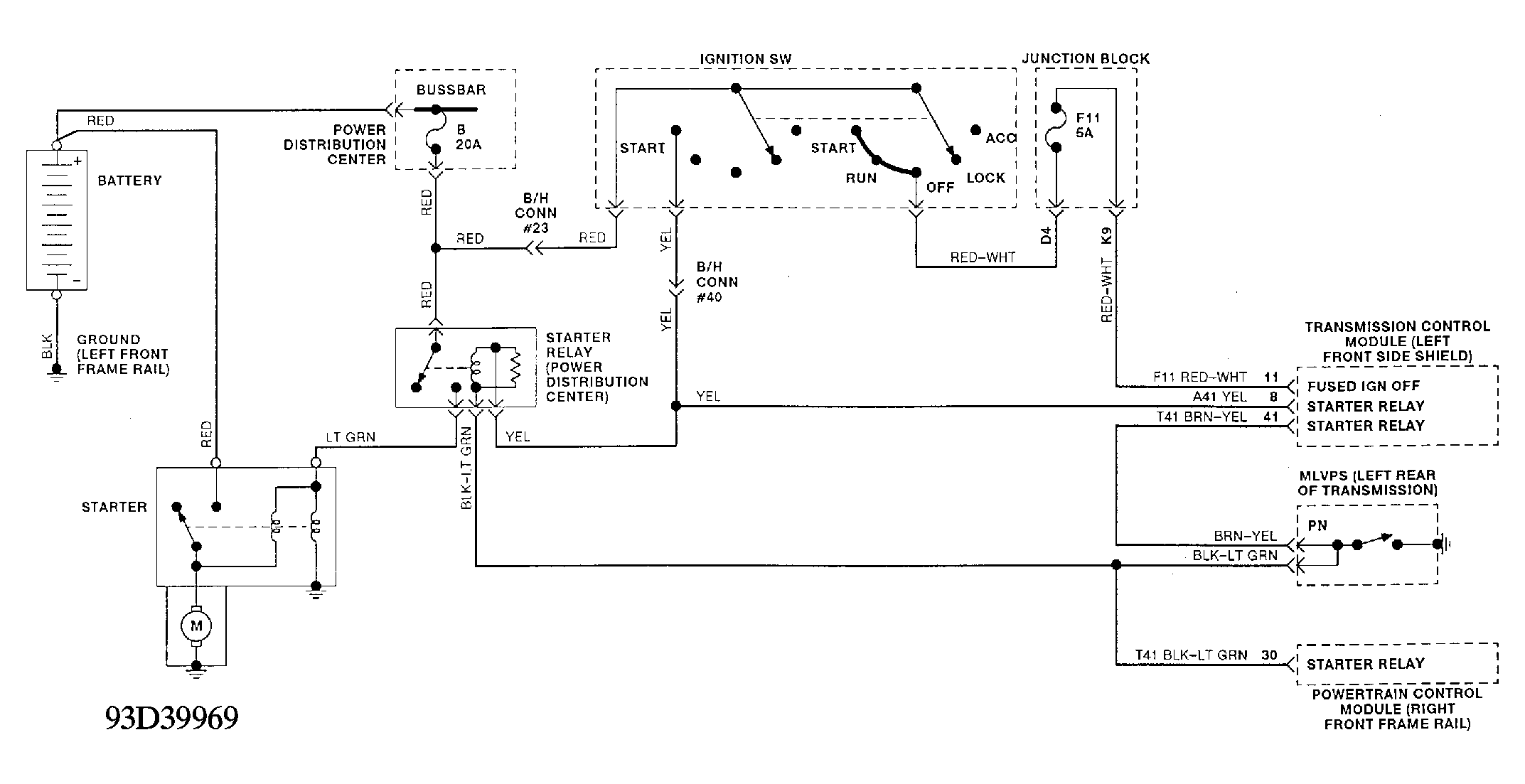

Fig 6: Starter Circuit (Shadow & Sundance)
