Eagle
›
1994
›
Summit LX, Automatic
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Wiring Diagrams
Wiring Diagrams

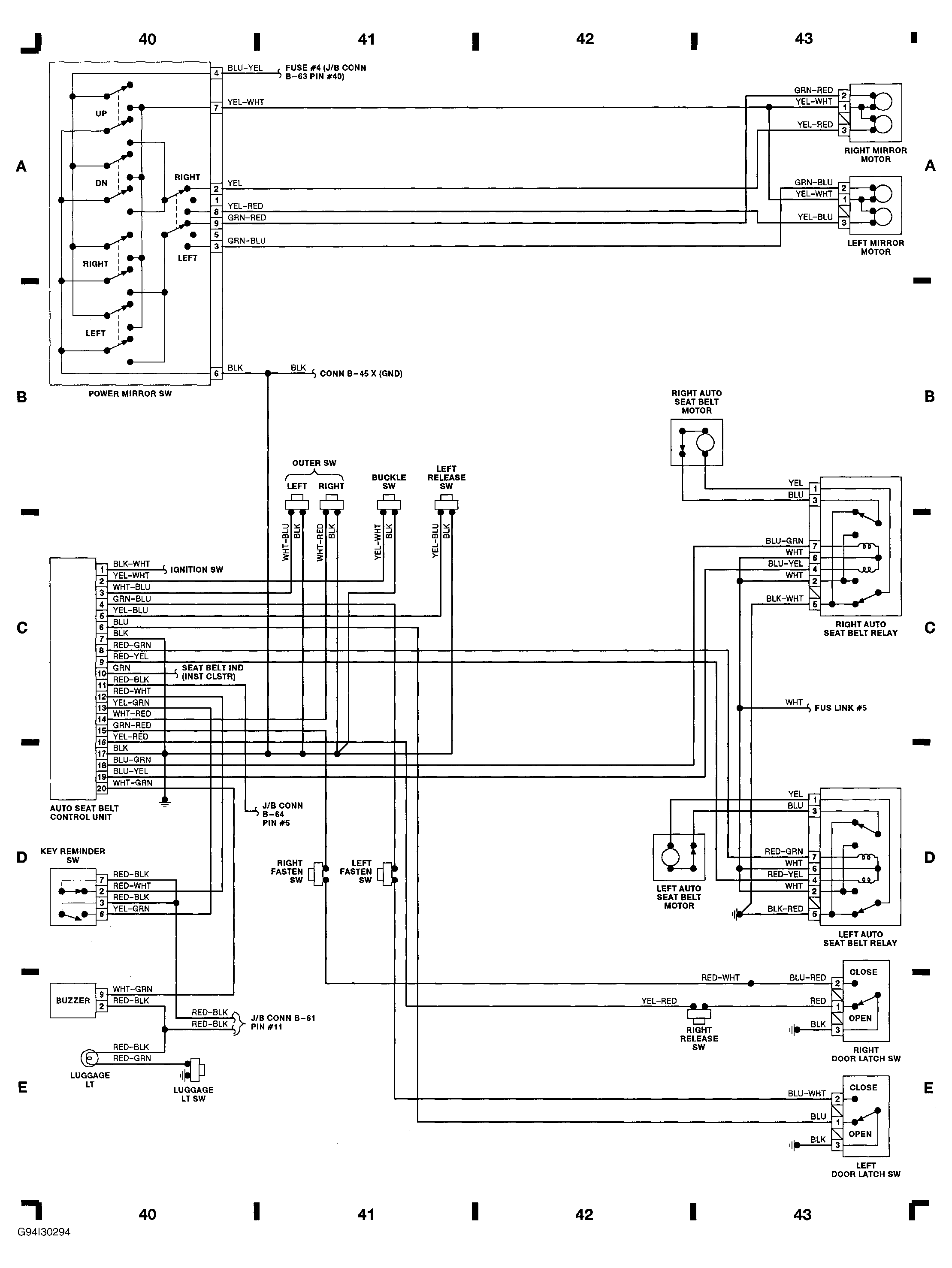

Fig 1: Power Mirror Switch & Passive Restraint (Auto Seat Belt) Control Unit (1993 Grid 40-43)
Fig 2: Passive Restraint Circuit Diagram (1994)
