Blower Resistor
WARNING: This page is about a different car, the 1994 Plymouth Colt, 1994 Mitsubishi Mirage, 1994 Eagle Summit, and 1994 Dodge Colt. However, it is still accessible from the selected car via links, so may be relevant.

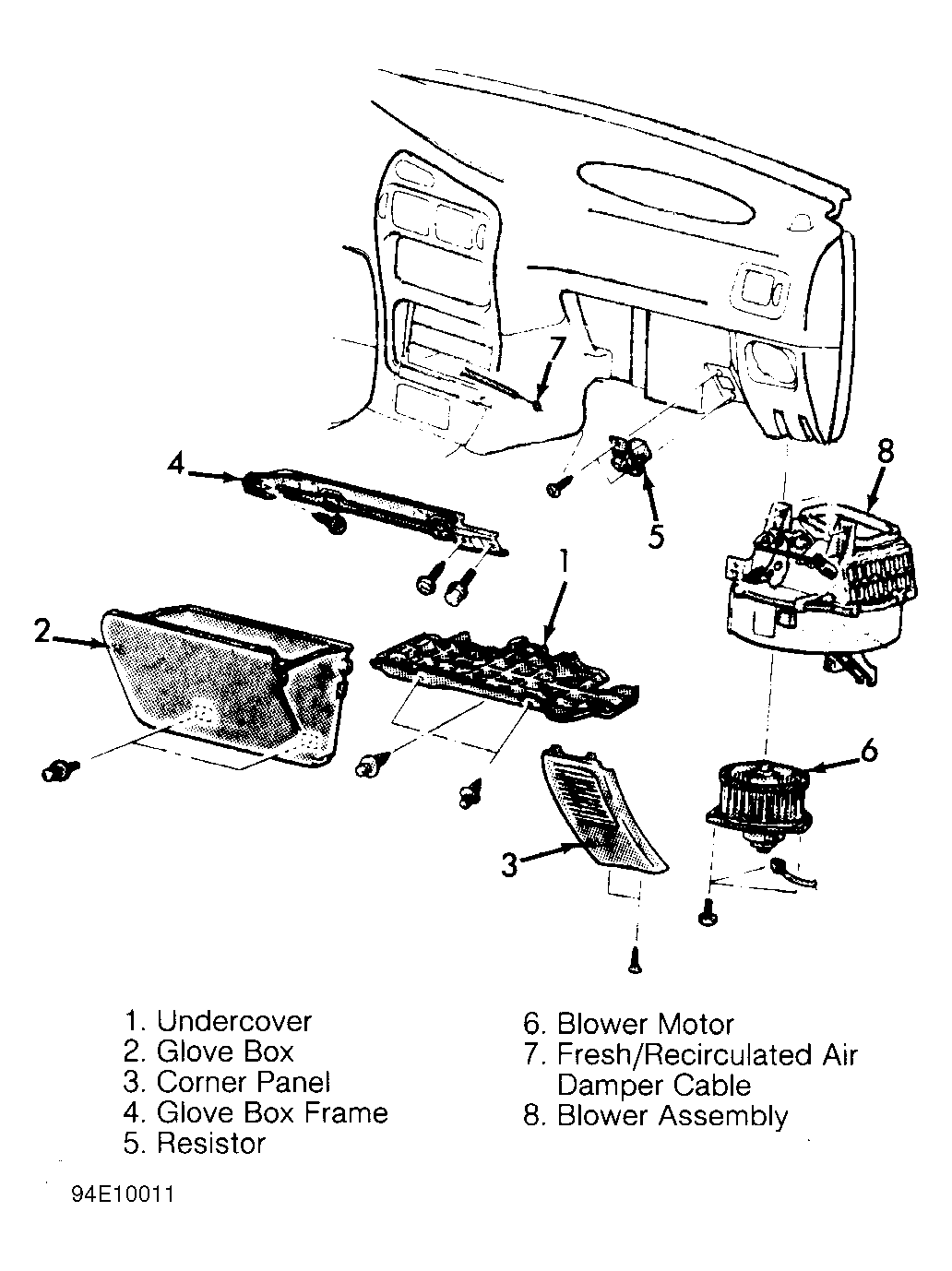

Disconnect connector from resistor. See Fig 1. Using ohmmeter, measure resistance between indicated resistor terminals. See BLOWER MOTOR RESISTOR RESISTANCE table. See Fig 2. If resistance is not as specified, replace blower resistor.
BLOWER MOTOR RESISTOR RESISTANCE
| Terminal No. | Ohms |
|---|---|
| 3 & 2 | 2.21 |
| 3 & 4 | 0.97 |
| 3 & 1 | 0.35 |
