Power Window Motor

Remove door trim panel and waterproof shield. Remove glass retaining screws and glass. See Fig 1 . Remove motor and slider assembly retaining bolts and remove motor and slider assembly from door. To install, reverse removal procedure.

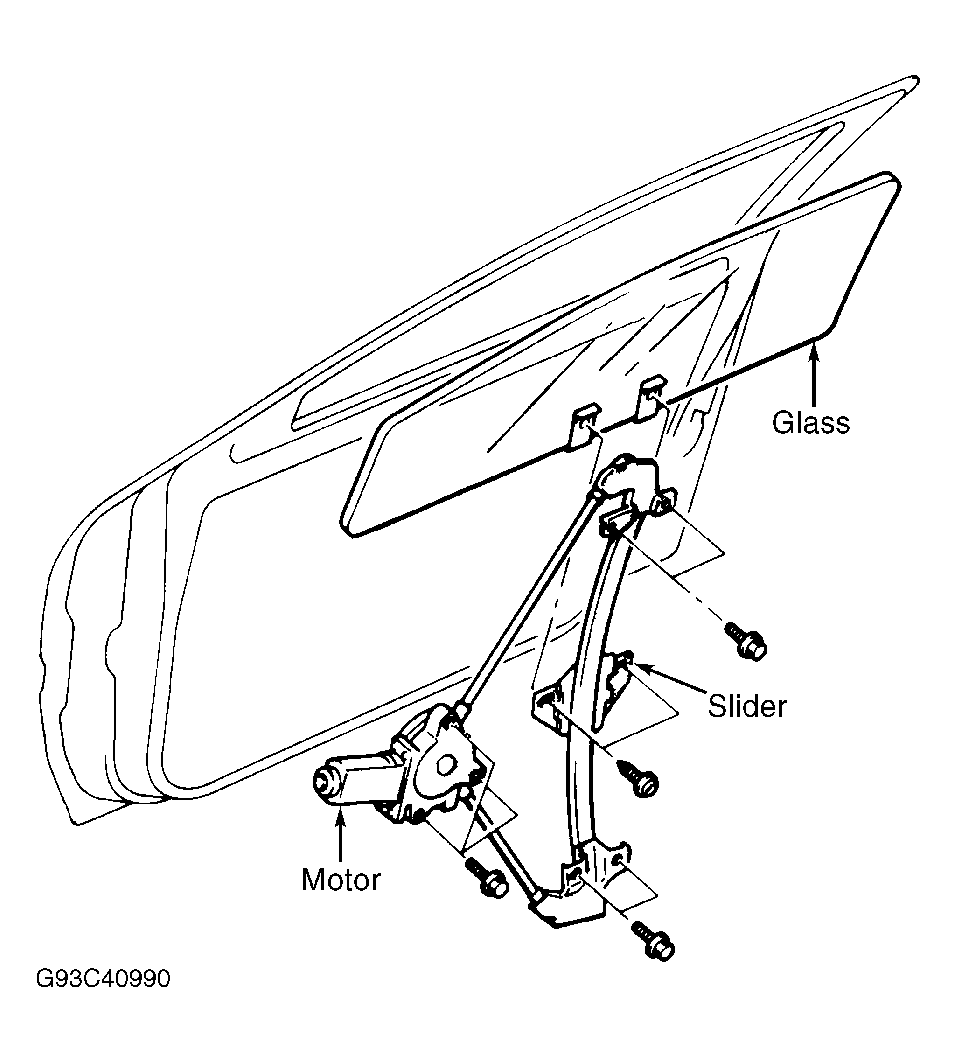

Fig 1: Removing Power Window Motor & Slider Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
