Maintenance Information
›
Service Point Locations
Service Point Locations

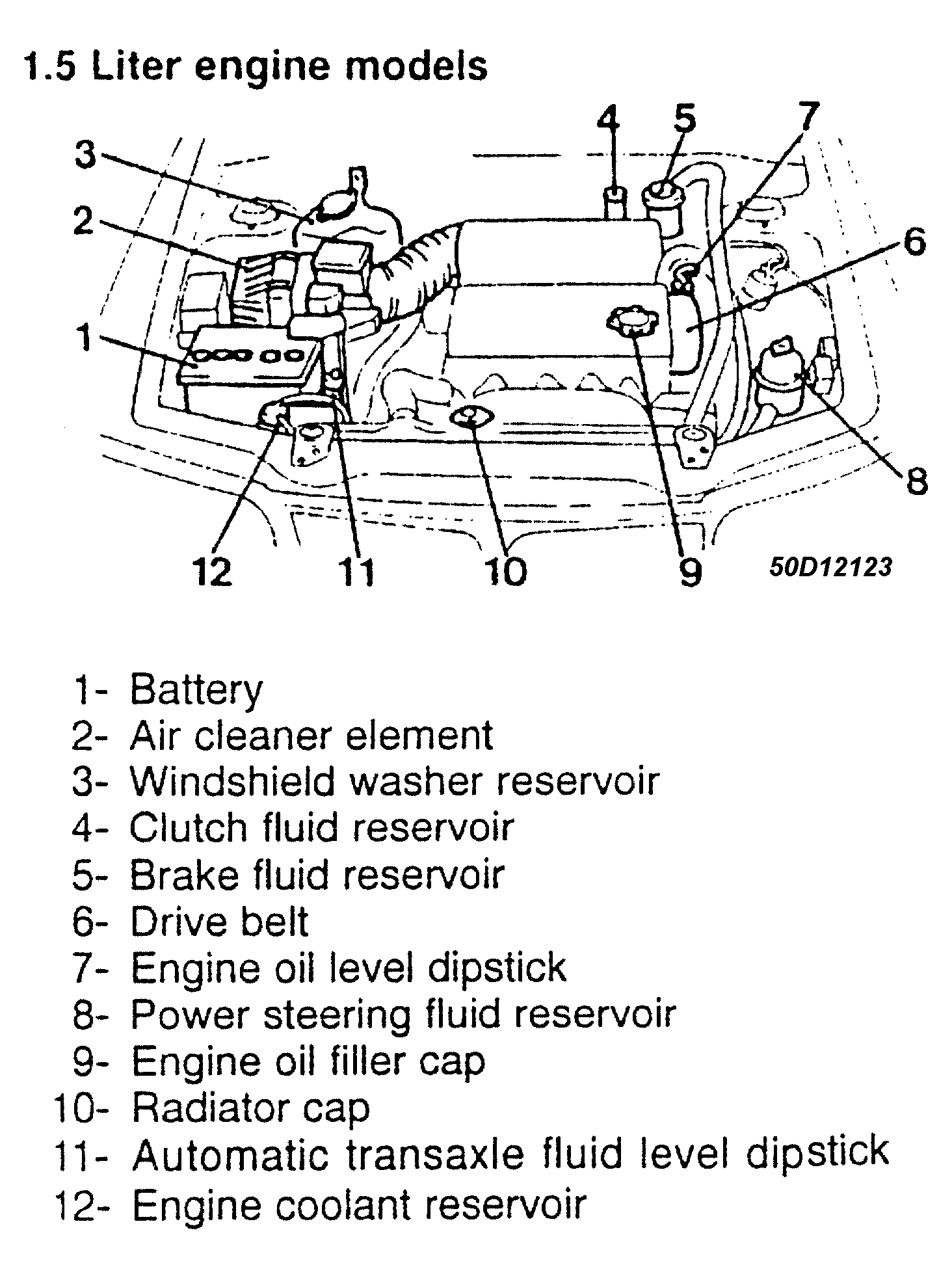

Fig 1: Service Point Locations (1.5L)
Courtesy of MITSUBISHI MOTOR CO.

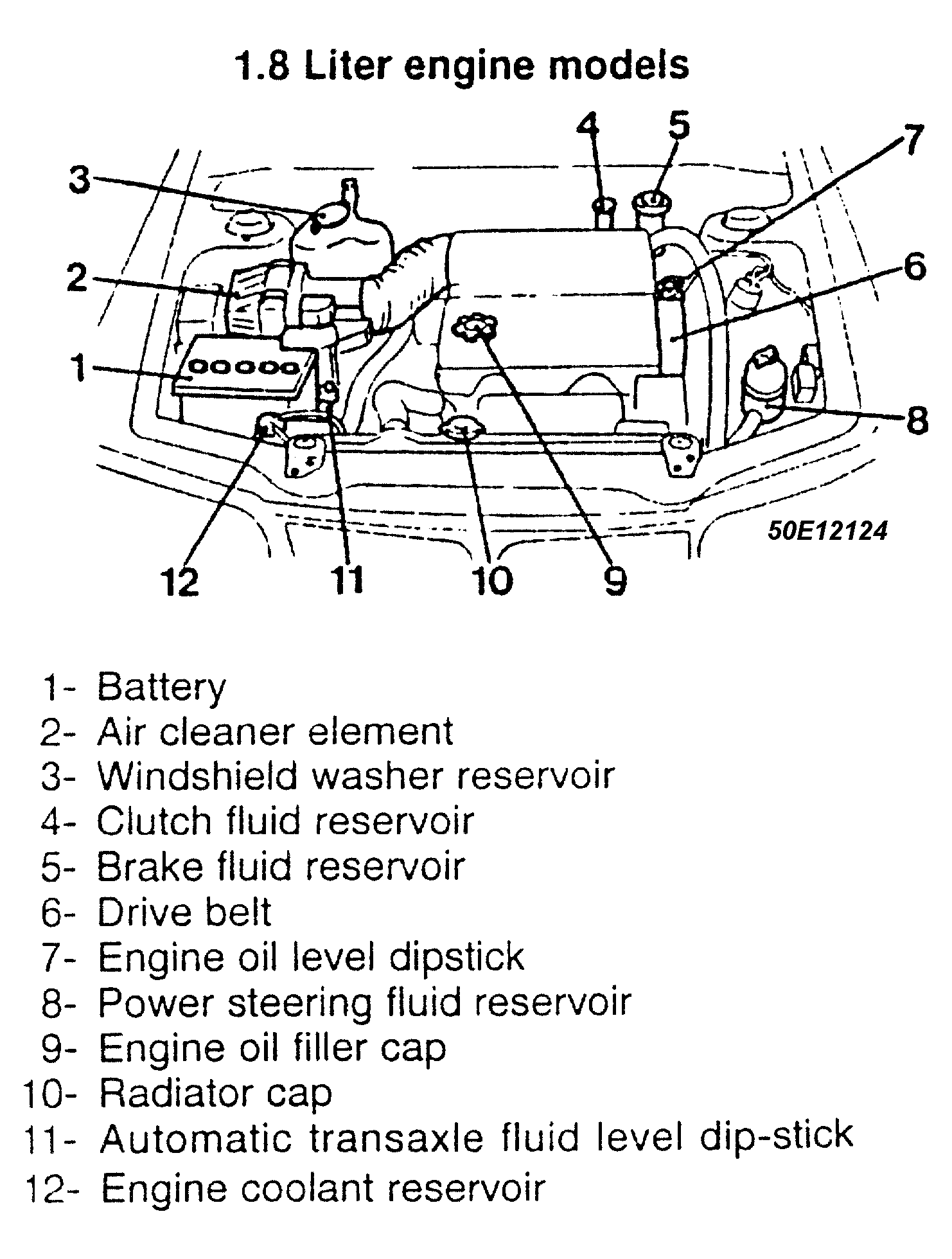

Fig 2: Service Point Locations (1.8L)
Courtesy of MITSUBISHI MOTOR CO.
Courtesy of MITSUBISHI MOTOR CO.
Courtesy of MITSUBISHI MOTOR CO.
