Rear Suspension: Description

Rear suspension system is a 3-link type with "U"-shaped torsion axle beam. See Fig 1 .

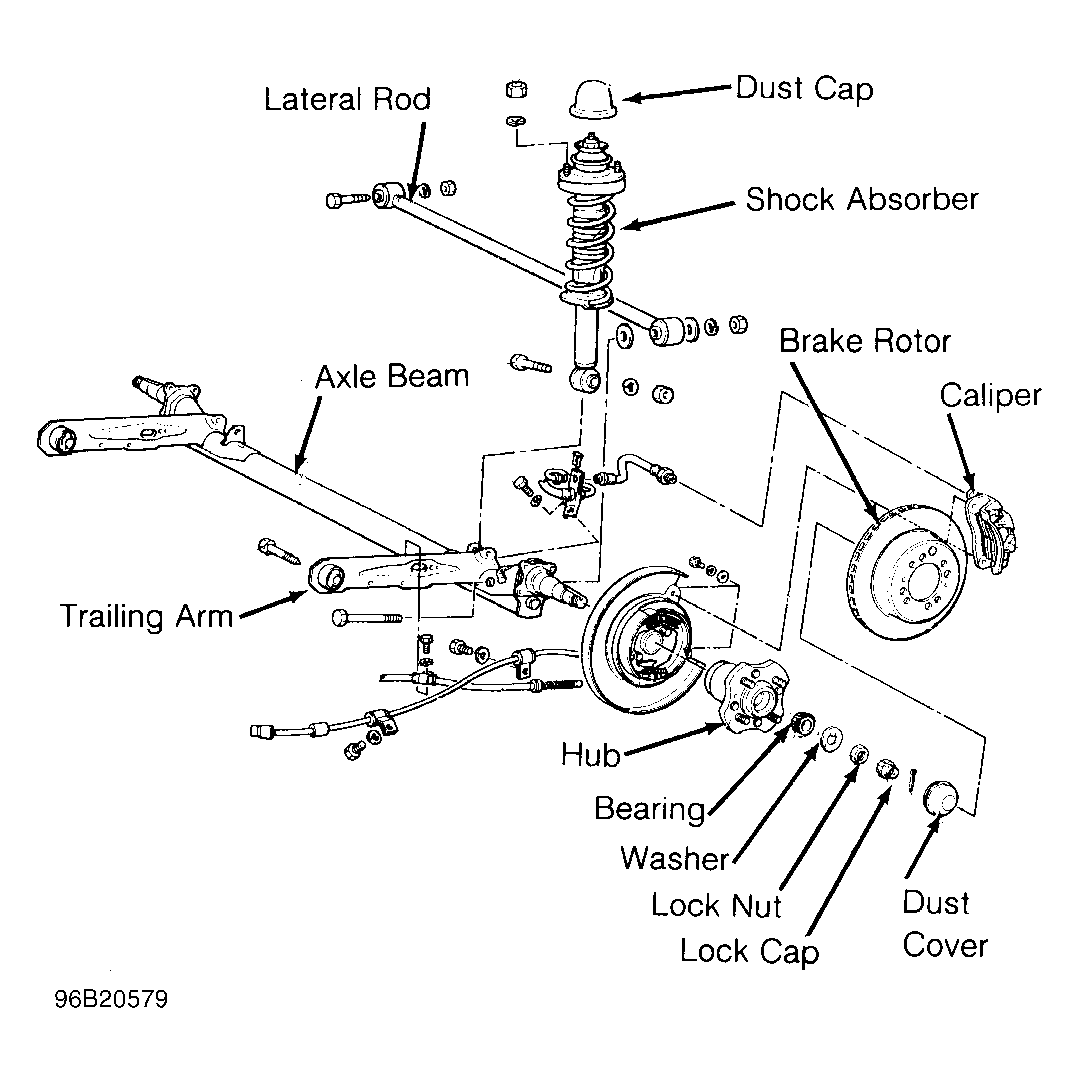

Fig 1: Exploded View Of Rear Suspension (Typical)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
