Door Lock Power Relay

NOTE: Following testing applies to door lock power relay "2" for keyless entry systems (if equipped).

Check continuity of relay using following charts. See Fig 1 . Replace relay as needed. For relay location, see Fig 2 .

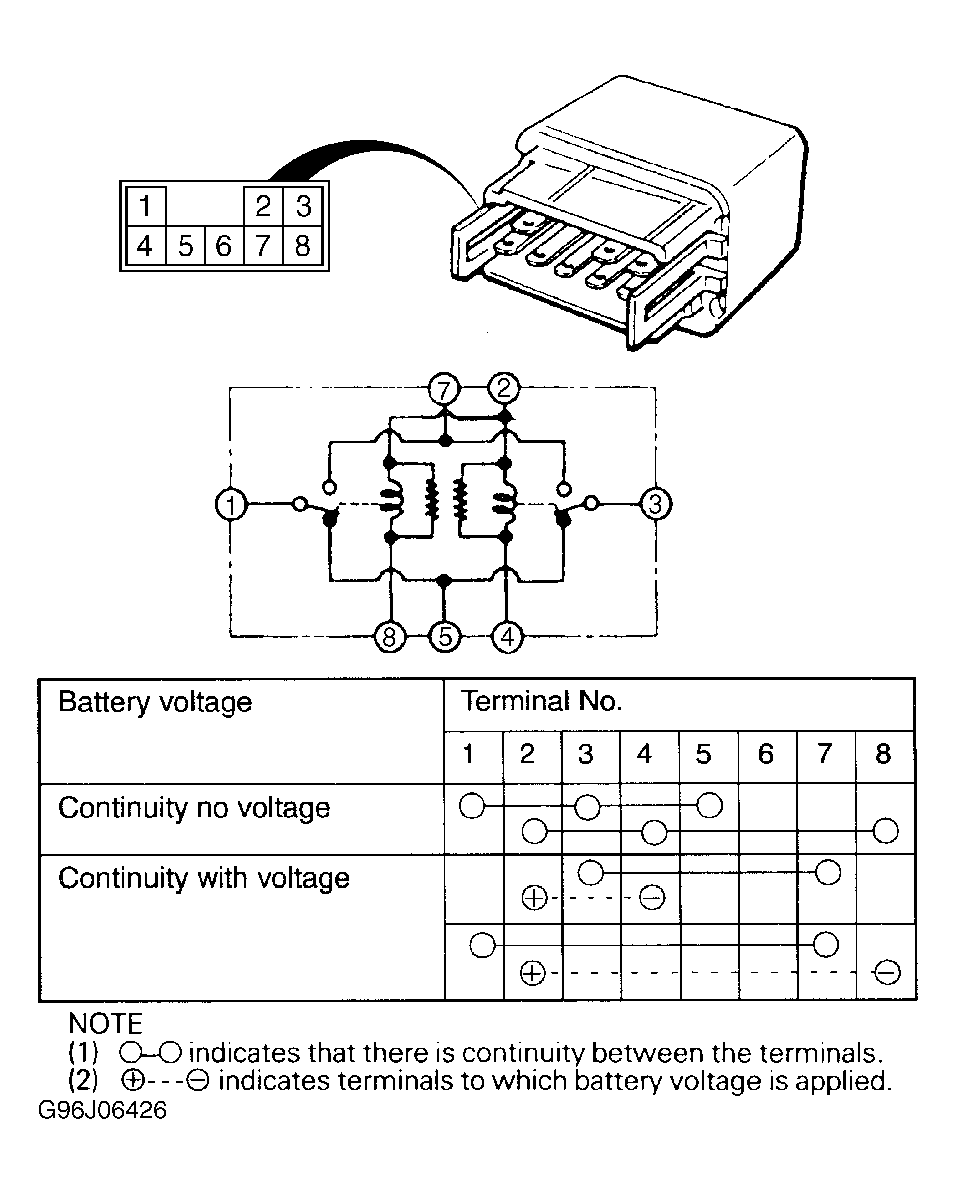

Fig 1: Testing Door Lock Power Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Door Lock Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
