Camshaft Position (CMP) Sensor

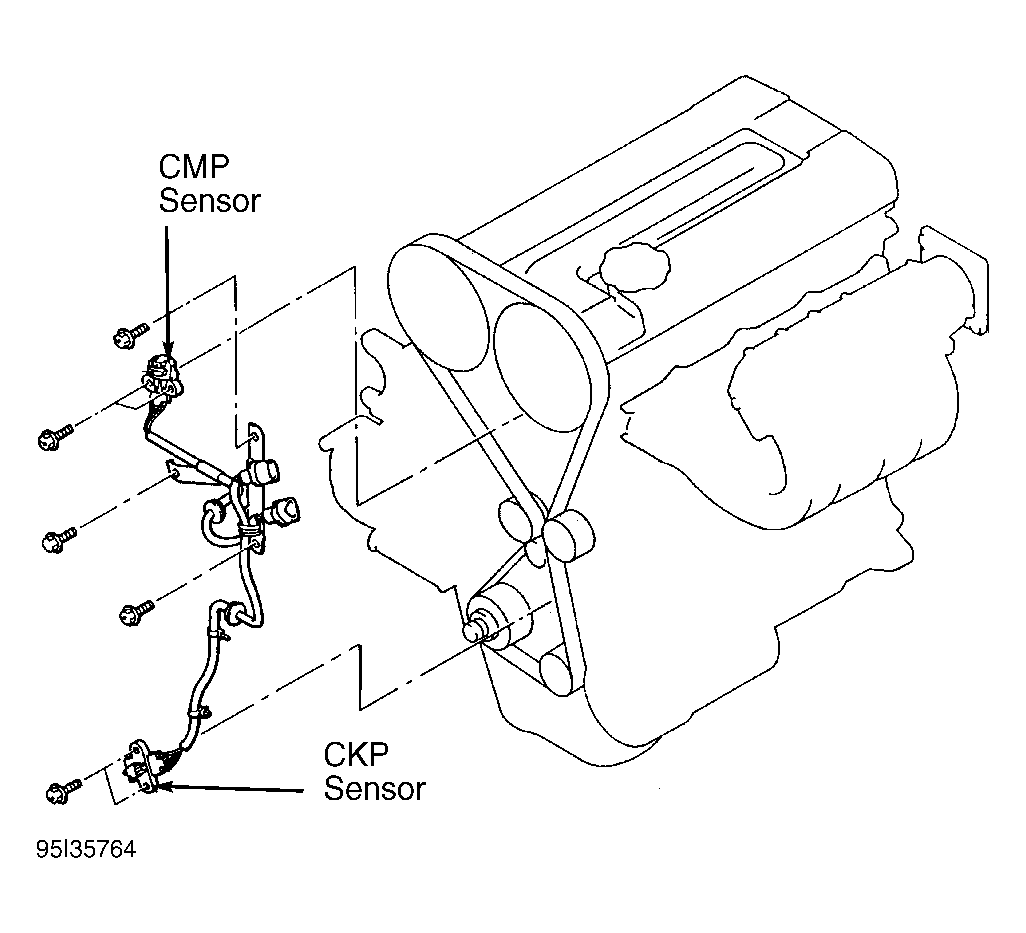

CMP sensor is mounted below left camshaft in front of engine. See Fig 1 . ECM determines TDC based on pulse signals received from CMP sensor. ECM uses this information along with CKP sensor signal to determine MFI timing.
