Engine Compartment Relay Box

On non-turbo models engine compartment relay box is located on driver's side of engine compartment. Turbo models have the relay box located on the passenger side of engine compartment. See Fig 1 and Fig 2 .

Fig 1: Identifying Fusible Links & Fuse Locations (1 Of 2)

Courtesy of CHRYSLER CORP.

Fig 2: Identifying Fusible Link & Fuse Locations (2 Of 2)

Courtesy of CHRYSLER CORP.

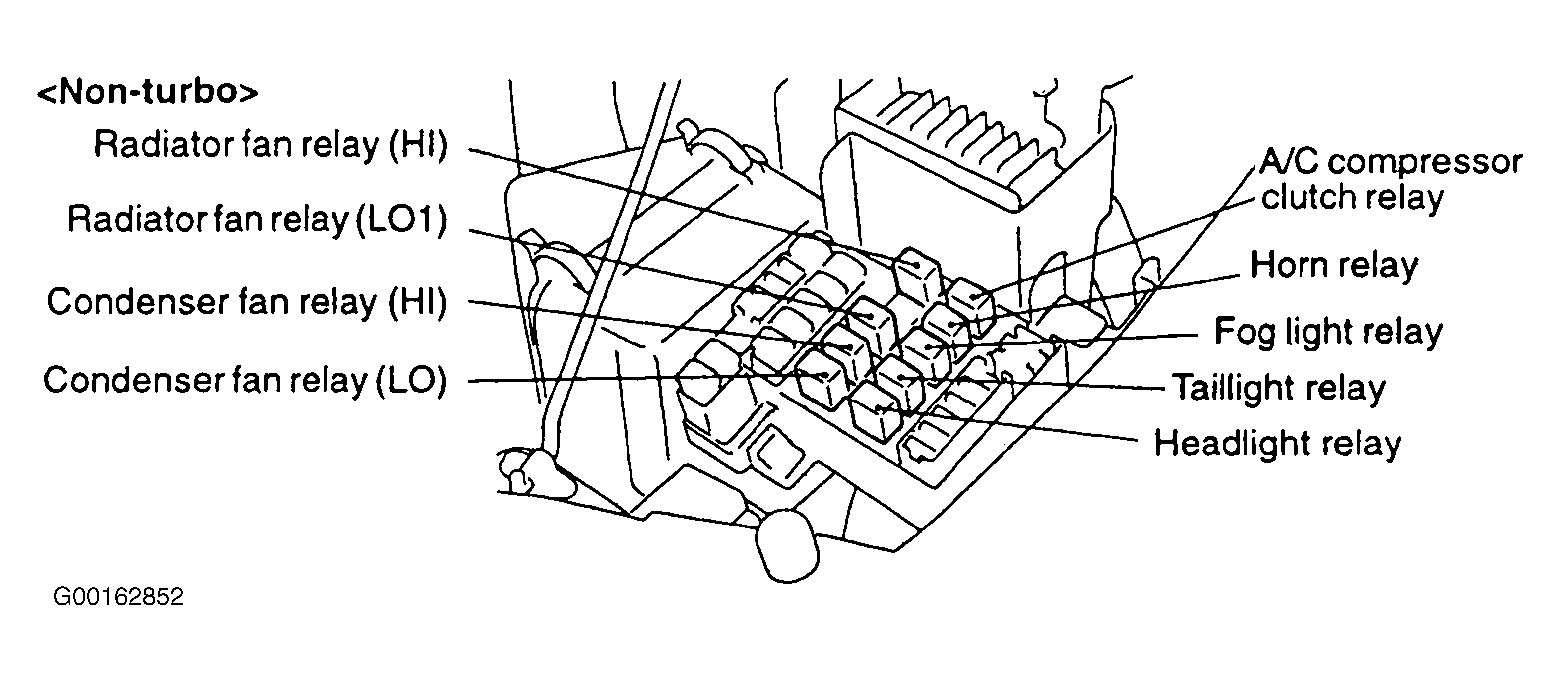

Fig 3: Identifying Engine Compartment Relay Box Relays (Non-Turbo)

Courtesy of CHRYSLER CORP.

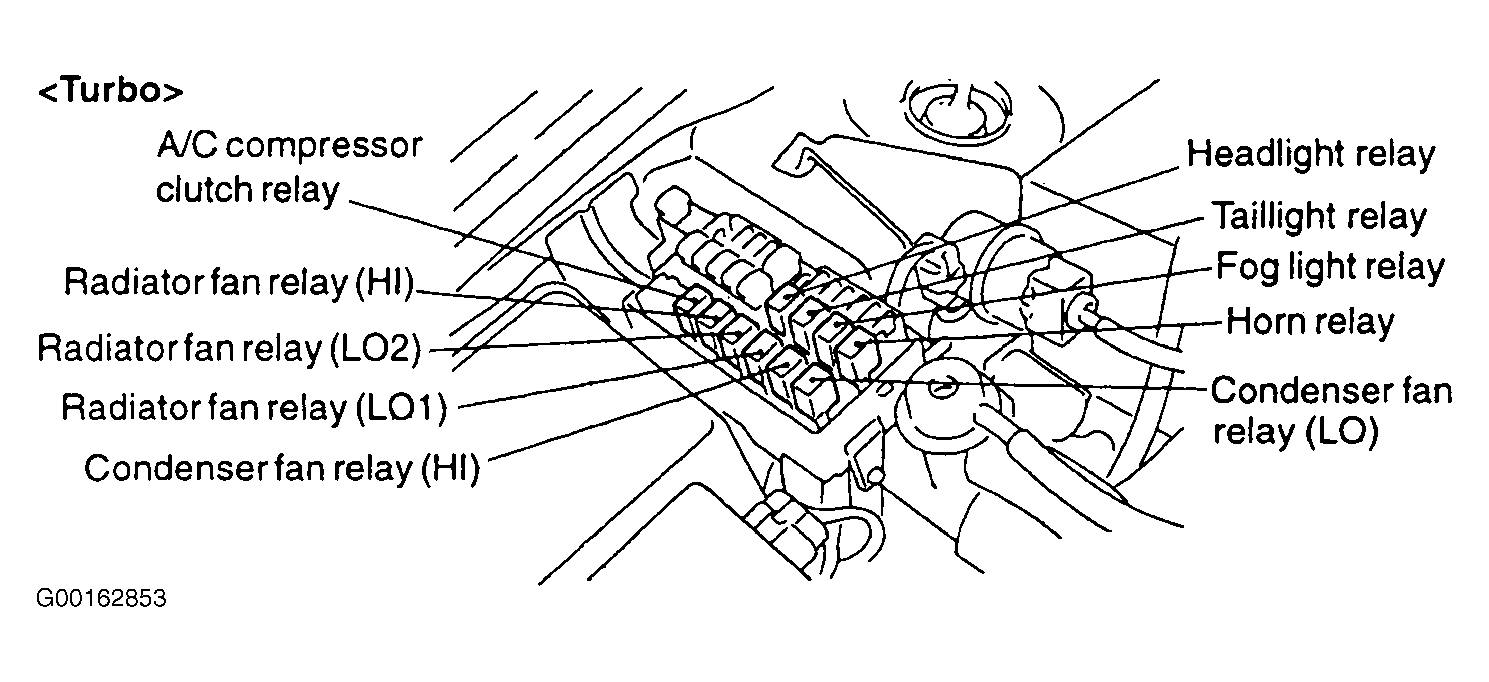

Fig 4: Identifying Engine Compartment Relay Box Relays (Turbo)

Courtesy of CHRYSLER CORP.

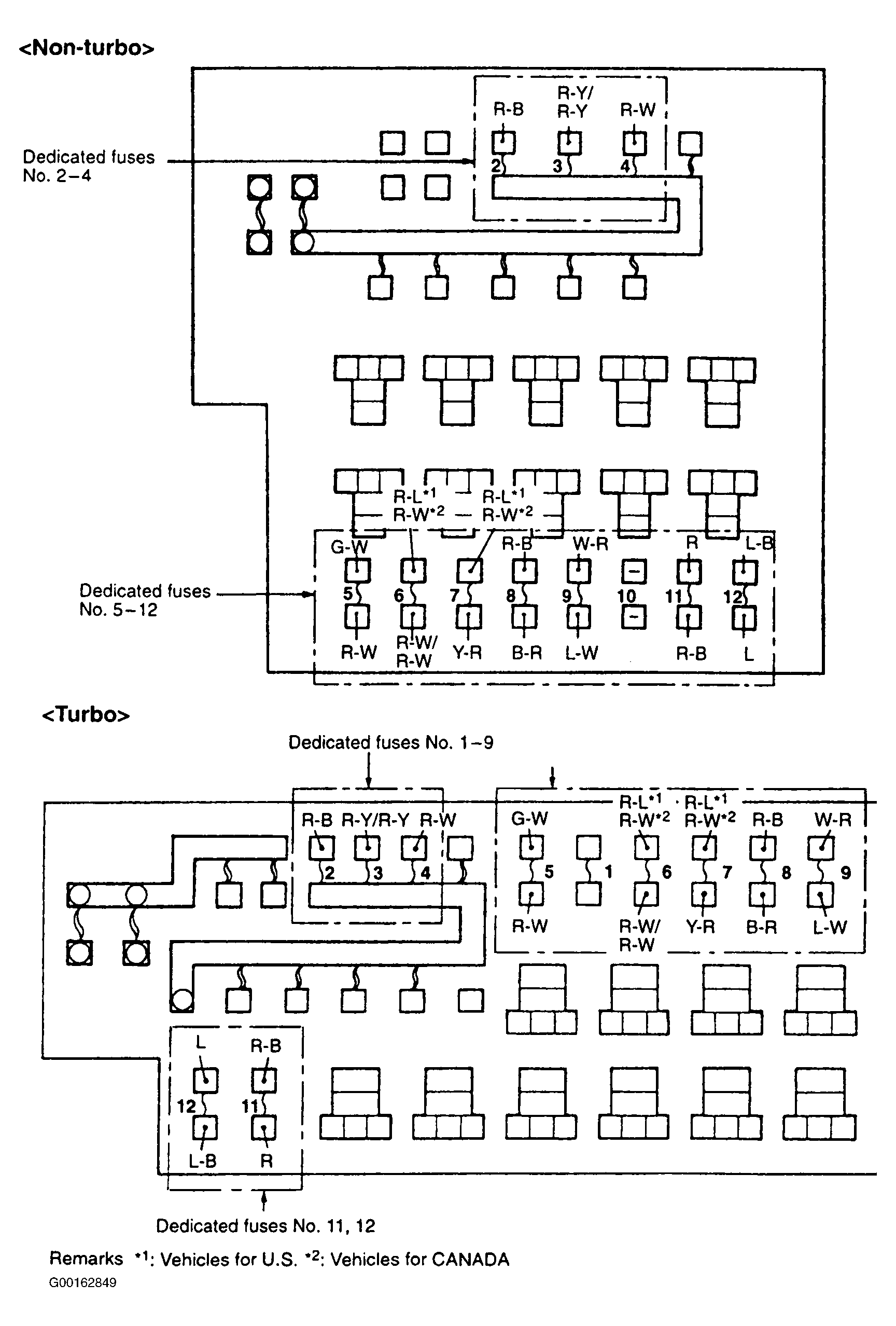

Fig 5: Identifying Engine Compartment Relay Box Components

Courtesy of CHRYSLER CORP.

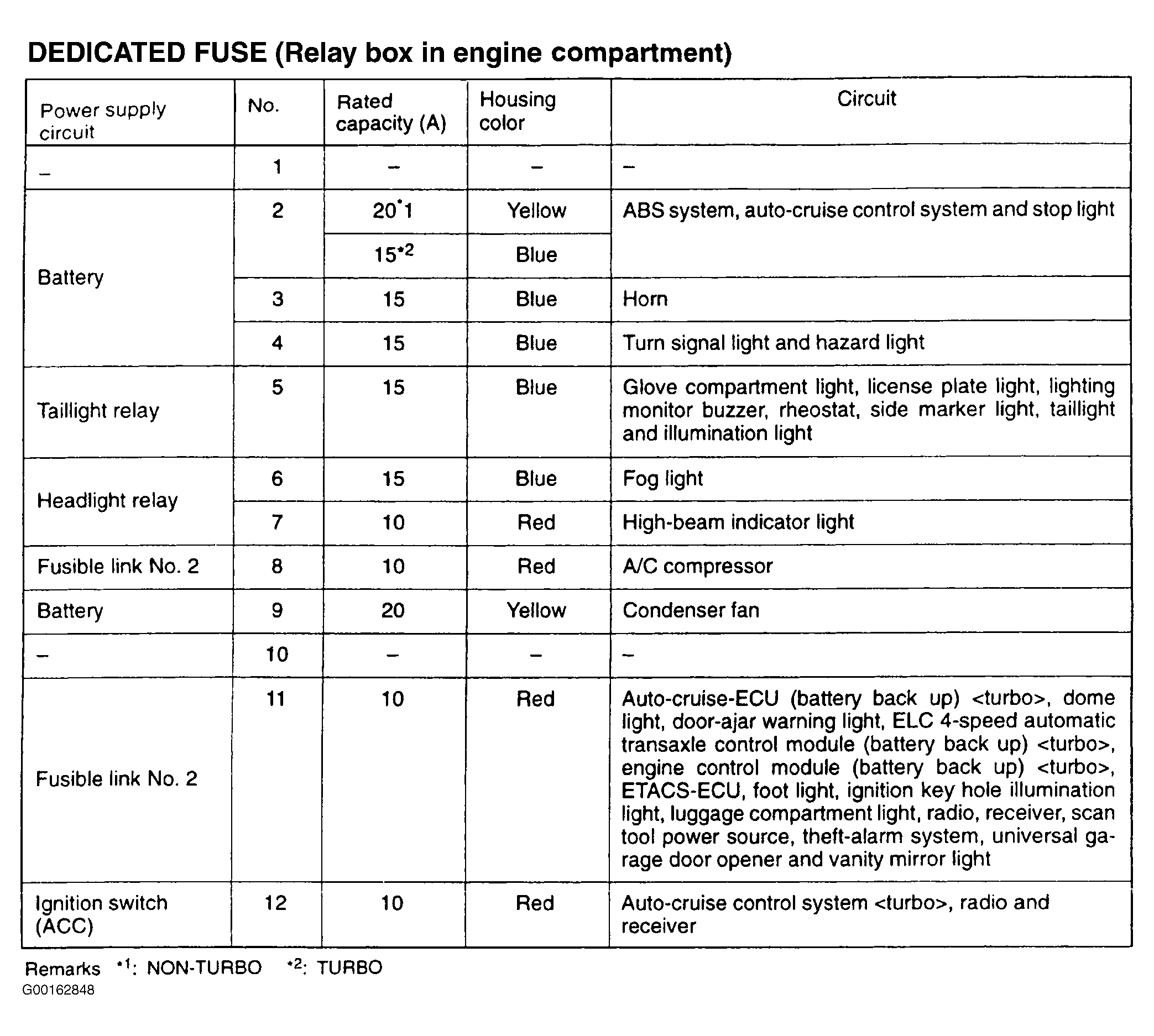

Fig 6: Engine Compartment Relay Box Fuse Legend

Courtesy of CHRYSLER CORP.

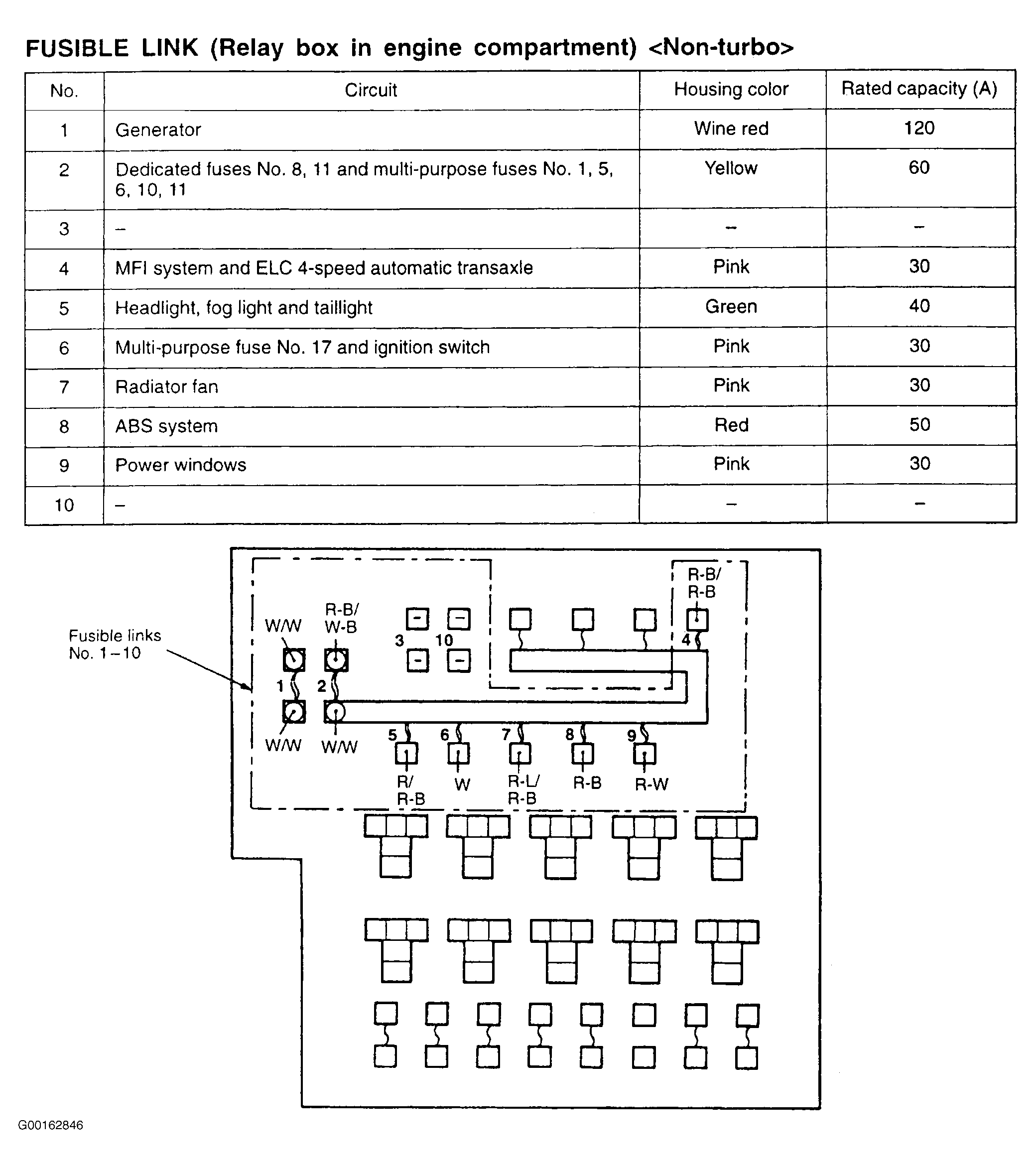

Fig 7: Engine Compartment Relay Box Fusible Link Legend (Non-Turbo)

Courtesy of CHRYSLER CORP.

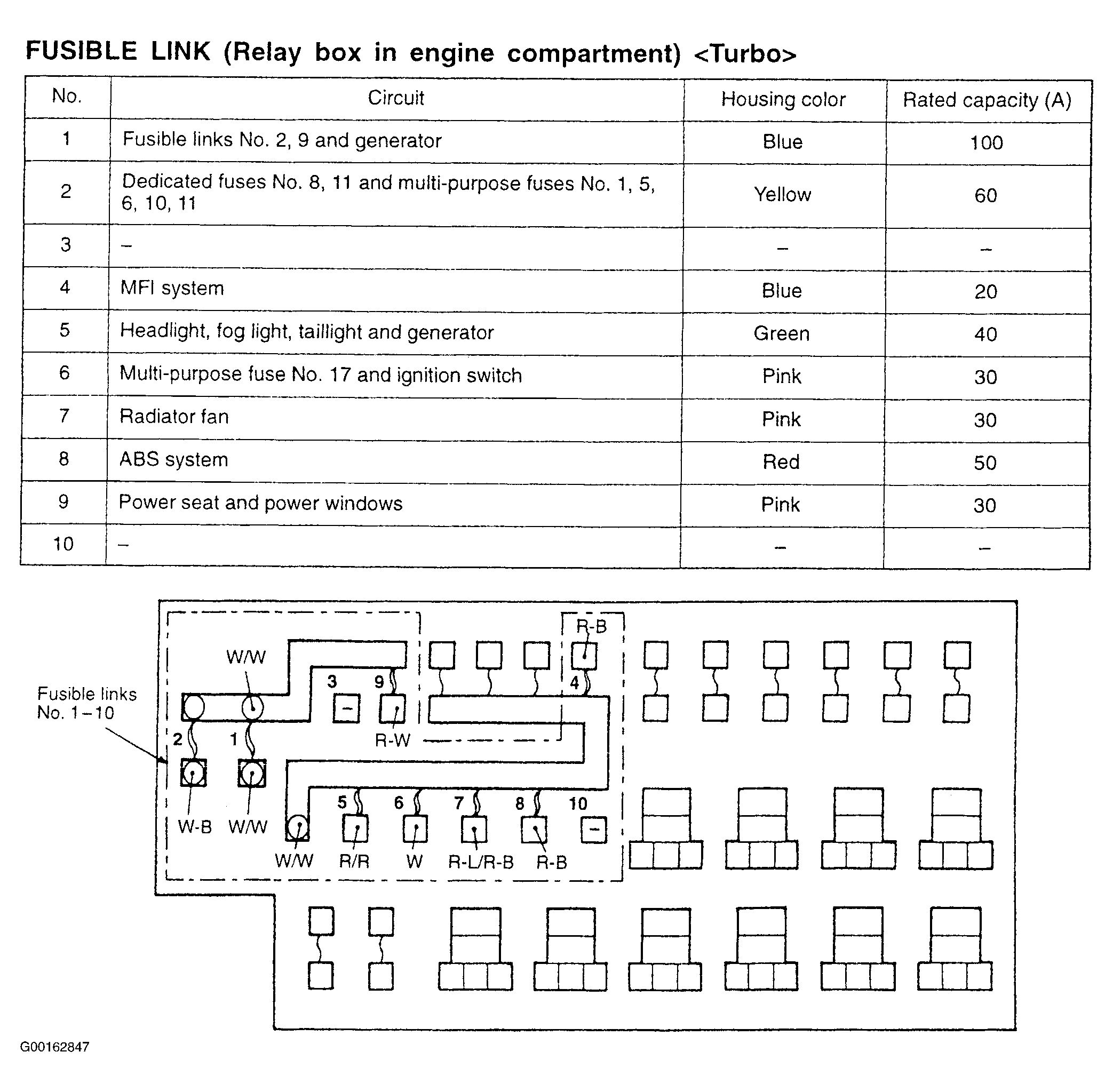

Fig 8: Engine Compartment Relay Box Fusible Link Legend (Turbo)

Courtesy of CHRYSLER CORP.
