Fuel Rail & Injectors: Installation

Install NEW "O" rings. Apply a small amount of engine oil to fuel system component "O" rings. DO NOT allow engine oil to enter fuel rail. To complete installation, reverse removal procedure.

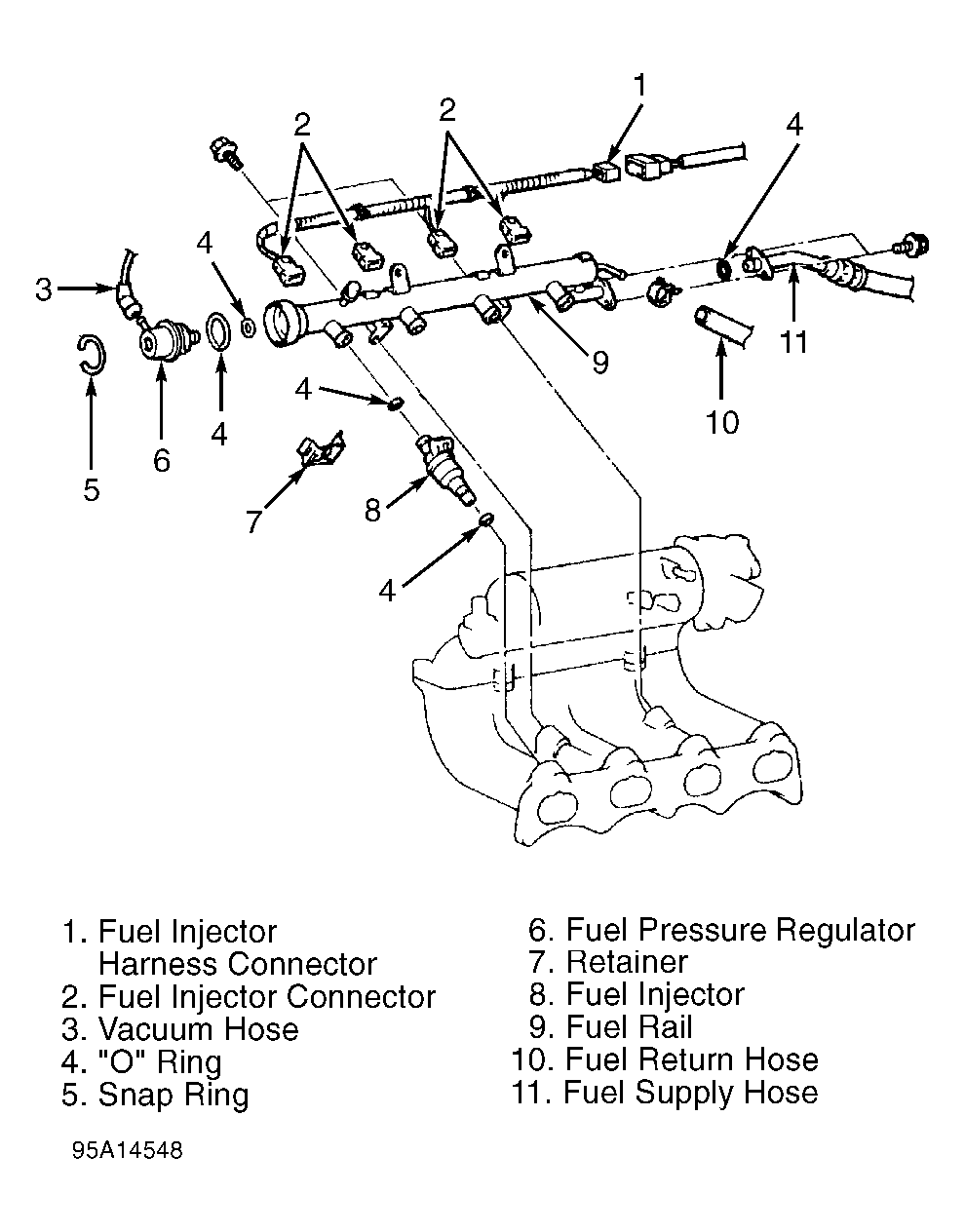

Fig 1: Identifying Fuel Rail & Injector Components
G95A14548Courtesy of CHRYSLER CORP.
