Wiring Diagrams

Fig 1: Power Door Lock With Remote Keyless Entry System Wiring Diagram

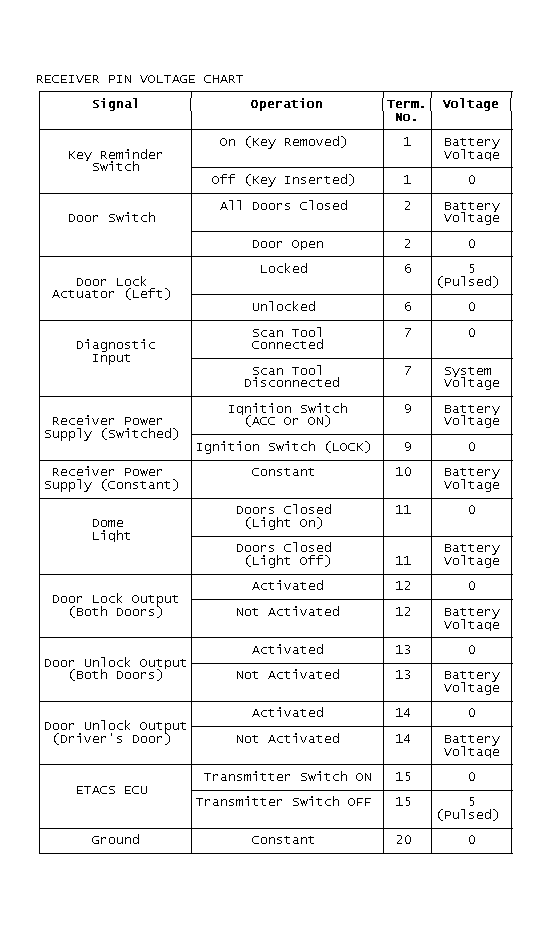

Fig 2: RECEIVER PIN VOLTAGE CHART
GB0043586
