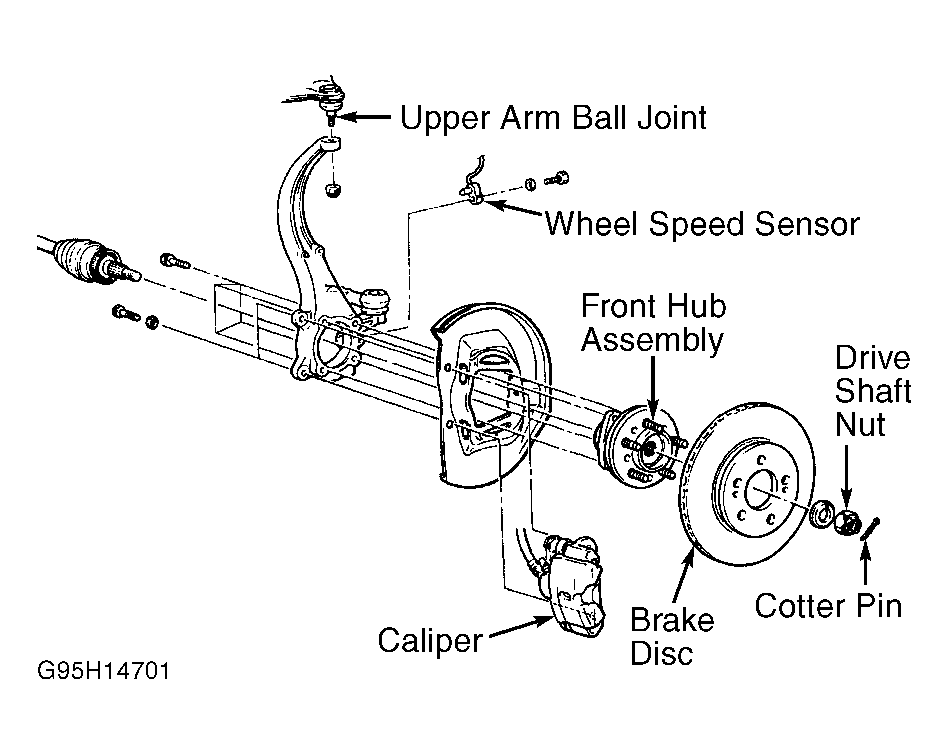

Front Hub Assembly: Installation
To install, reverse removal procedure. Use NEW upper arm ball joint nut. When installing drive shaft washer and nut, washer must be installed with chamfered edge toward nut. Tighten nut to specification. See TORQUE SPECIFICATIONS . If nut does not align with cotter pin hole, tighten nut to a maximum of 188 ft. lbs. (255 N.m). Use NEW cotter pin.
