Anti-Lock Brake System - Coupe: Description

NOTE: For information on Sebring Convertible anti-lock brake system, see appropriate ANTI-LOCK article.

NOTE: See ANTI-LOCK BRAKE SYSTEMS SAFETY PRECAUTIONS article in GENERAL INFORMATION before servicing any anti-lock brake system.

NOTE: For more information on brake system, see appropriate DISC & DRUM article.

The Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during heavy braking. This allows operator to maintain steering control while stopping vehicle in shortest distance possible. Major components consist of the following: Hydraulic Control Unit (HCU), 4 Wheel Speed Sensors (WSS) and WSS rotors, ABS Electronic Control Unit (ABS-ECU) and ABS warning light. See Fig 1 and Fig 2 . ABS has a self-diagnostic system which communicates over the Data Link Connector (DLC) to indicate system malfunctions and for use in system trouble shooting.

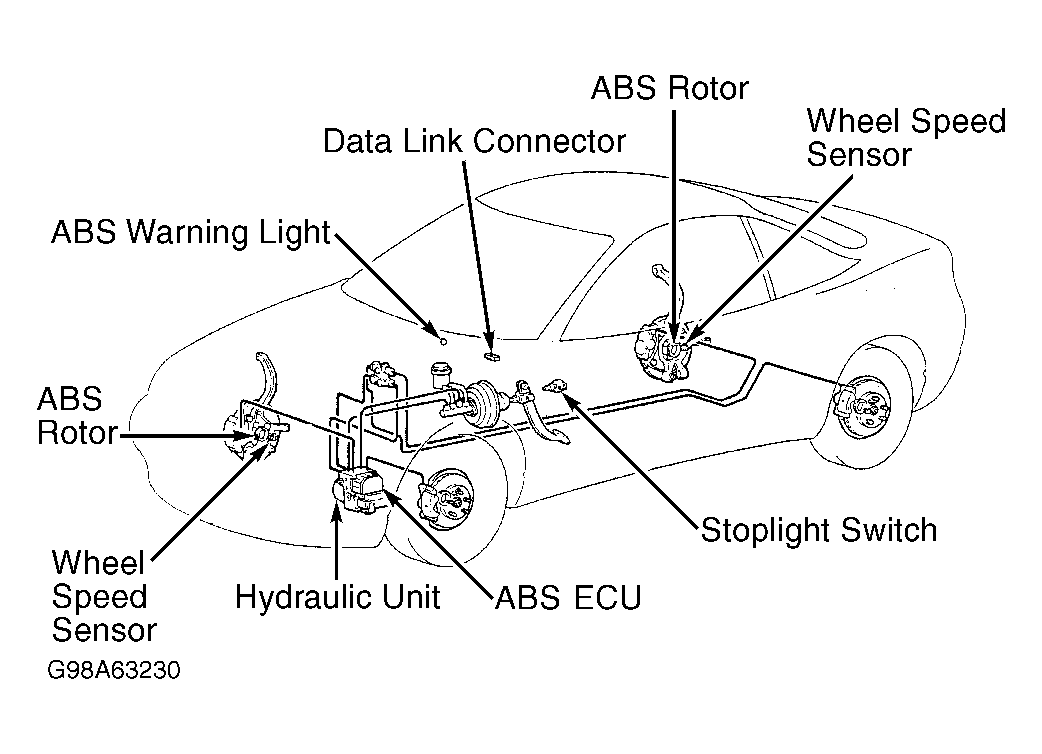

Fig 1: Locating Anti-Lock Brake System (ABS) Components (FWD)

Courtesy of CHRYSLER CORP.

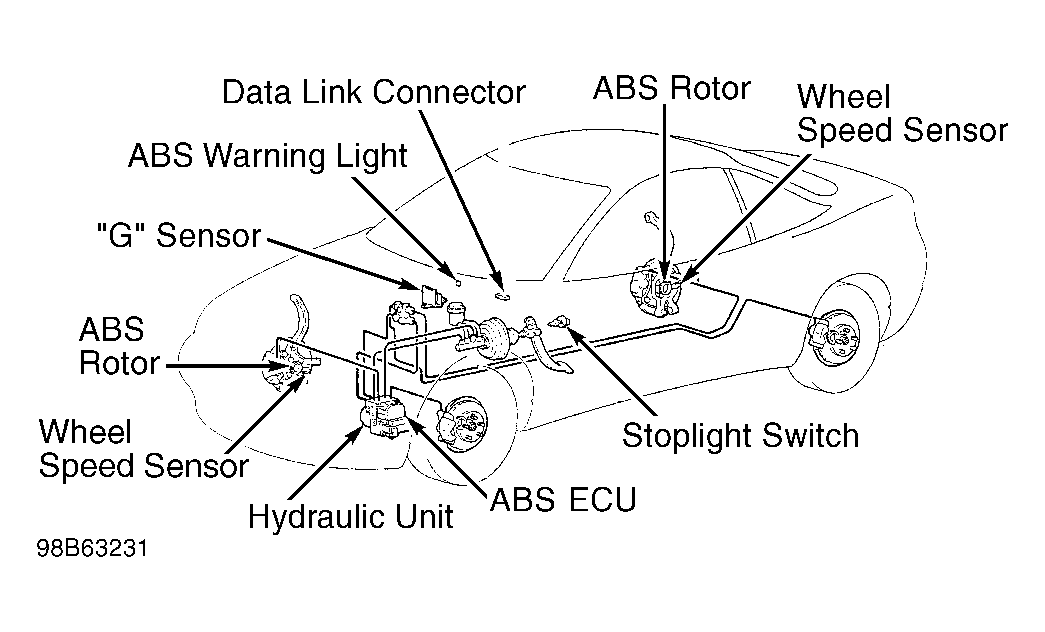

Fig 2: Locating Anti-Lock Brake System (ABS) Components (AWD)

Courtesy of CHRYSLER CORP.
