Float Level

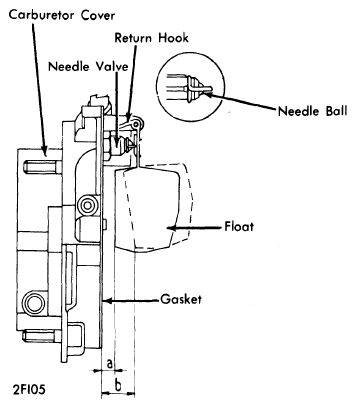

- Remove carburetor body cover and make sure that needle valve is tight. Hold cover vertical so that weight of float does not lower ball in needle valve (see illustration).
- With float arm just touching ball, float should be specified clearance from cover (with gasket in place). If clearance is not correct, bend float arms to obtain correct clearance.
- Check to make sure that float travel is to specification, if not, adjust as necessary.
