Parts Replacement: Brushes

To ensure best results, brushes should be replaced with a new brush holder as a complete assembly. Before installing holder assembly, clean all parts of grease and carbon dust, lubricate bearings with suitable grease (Fiat MR 3).

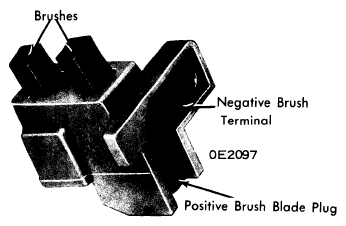

Fig 1: Brush Holder Assembly
G09349568Courtesy of NOT AVAILABLE
