Wiring Diagrams - STRADA: Wiring Diagram

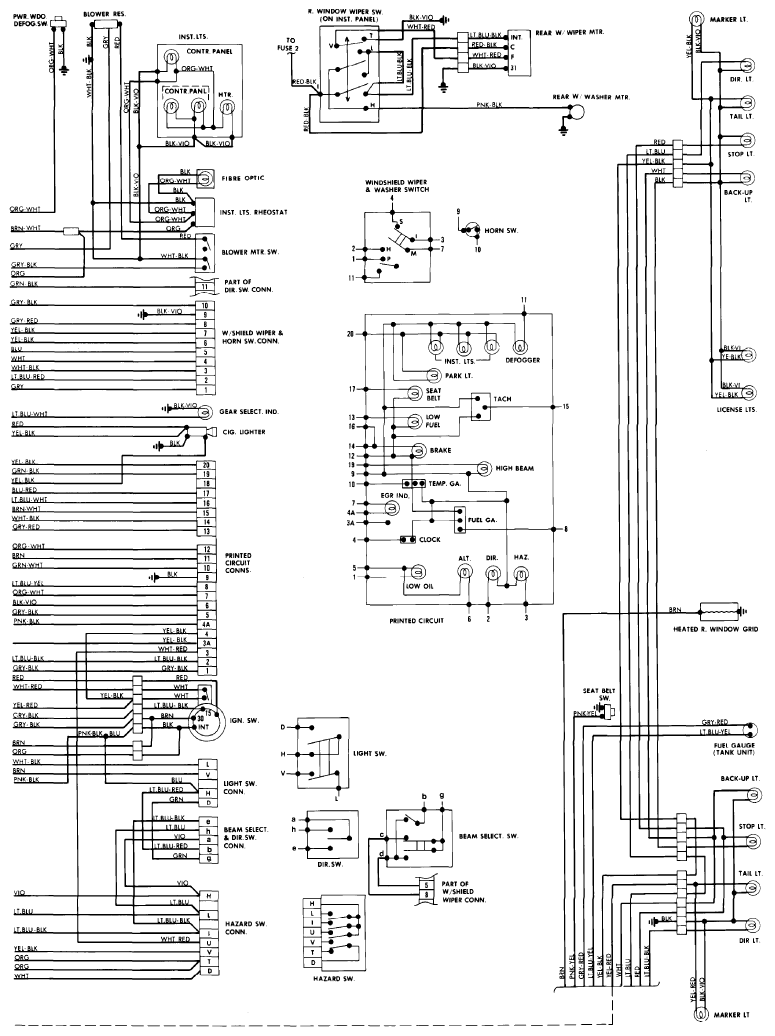

Fig 1: Wiring Diagram - Strada (1 of 4)

Courtesy of NOT AVAILABLE

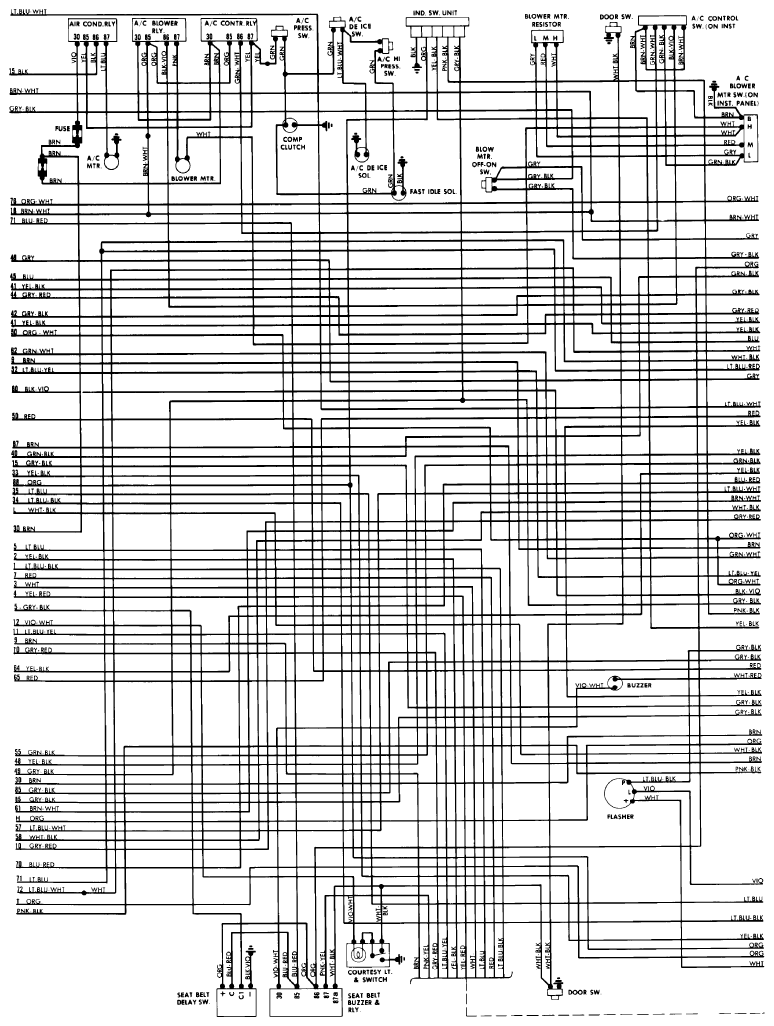

Fig 2: Wiring Diagram - Strada (2 of 4)

Courtesy of NOT AVAILABLE

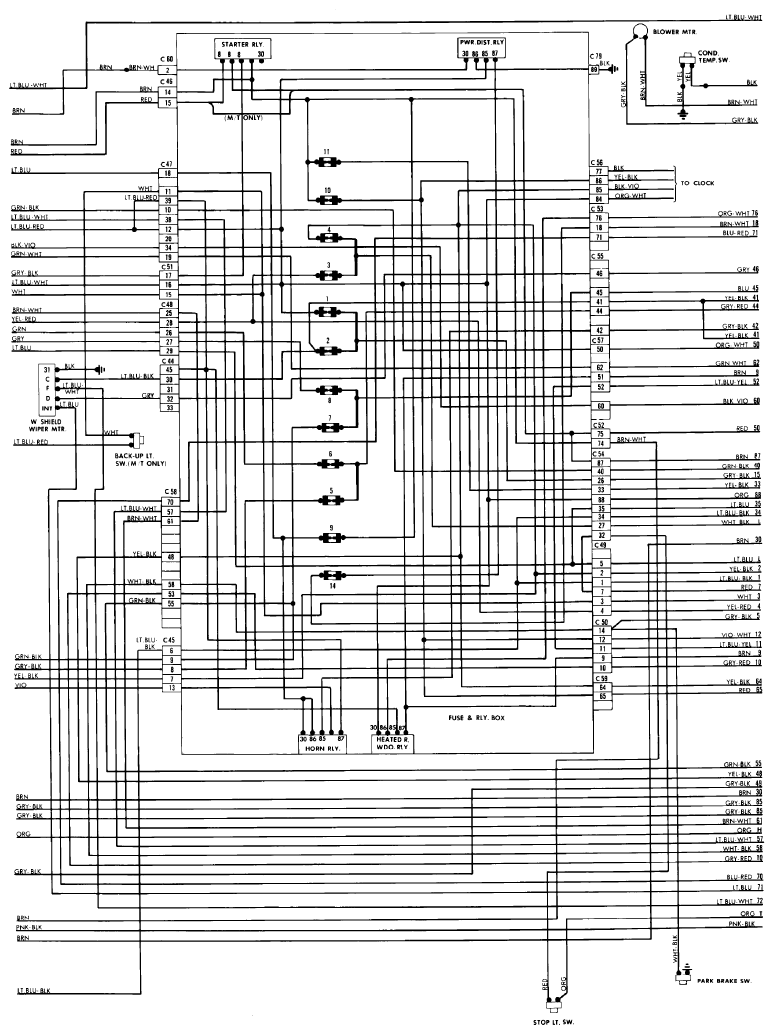

Fig 3: Wiring Diagram - Strada (3 of 4)

Courtesy of NOT AVAILABLE

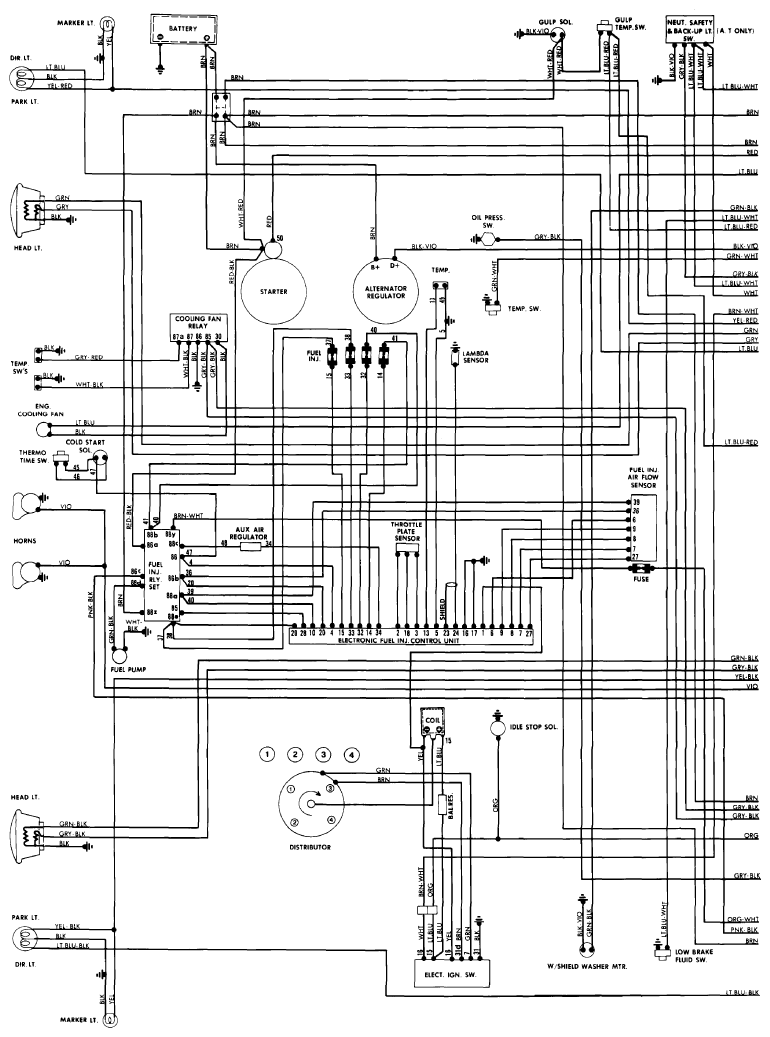

Fig 4: Wiring Diagram - Strada (4 of 4)

Courtesy of NOT AVAILABLE
