Wiper Switch: Installation

To install, reverse removal procedure.

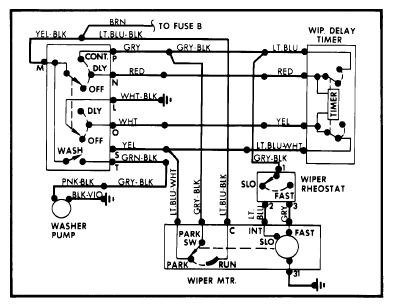

Fig 1: Brava Wiper Wiring Diagram

Courtesy of NOT AVAILABLE

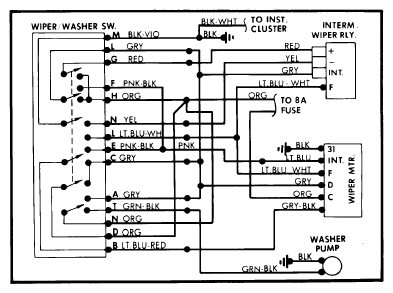

Fig 2: Spider 2000 Wiper Wiring Diagram

Courtesy of NOT AVAILABLE

Fig 3: X1/9 Wiper Wiring Diagram

Courtesy of NOT AVAILABLE

Fig 4: Strada Front Wiper Wiring Diagram

Courtesy of NOT AVAILABLE

Fig 5: Strada Rear Wiper Wiring Diagram

Courtesy of NOT AVAILABLE
