Wiring Diagrams - Spider 2000
›
Wiring Diagrams
›
Engine Compartment
Engine Compartment

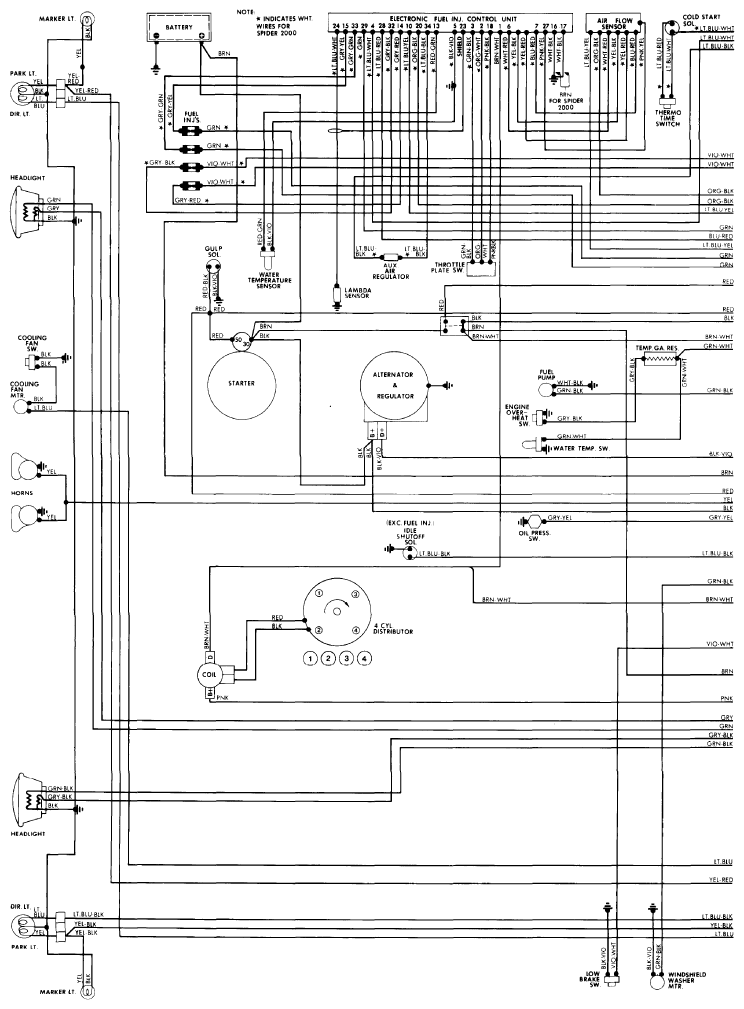

Fig 1: Wiring Diagram - Fiat SPIDER 2000 (1 of 4)
Courtesy of NOT AVAILABLE
Courtesy of NOT AVAILABLE
