Module-Powertrain Control C2

Harness-Family: Engine_16V

Color: BLACK

Gender: FEMALE

Part Number: AHY13392

Part Description: Not Available

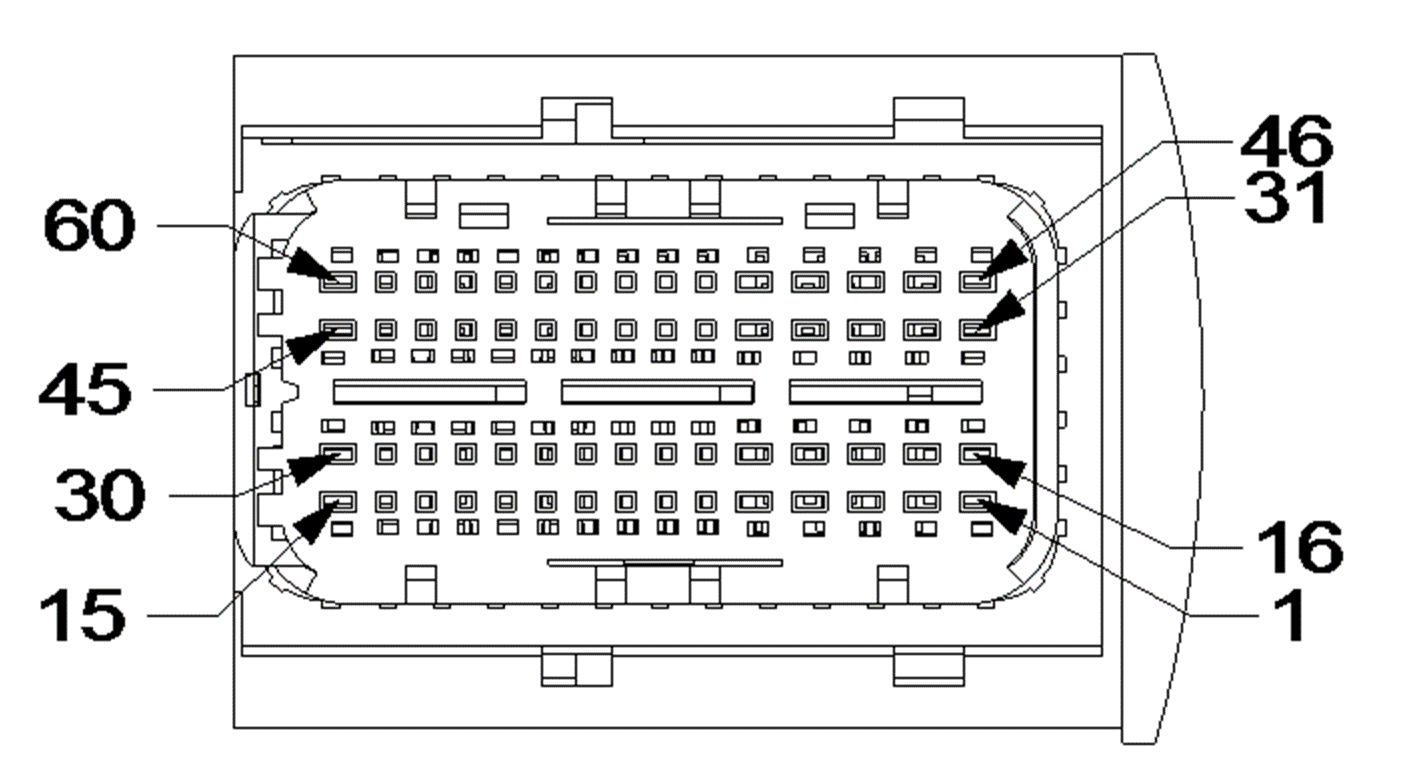

Connector No: D3821M

Option: 16V

Repair Kit Part Number: Not Available

Cavity Count:

Pin	Circuit	Wire Color	Gauge/Size	Function	Option
1	K18	WT	18	COIL CONTROL 3	N/A
10	K42	VT	20	KS 1 SIGNAL	N/A
10	K11	DB	18	INJECTOR CONTROL 1	N/A
11	K942	LB	20	KS 1 RETURN	N/A
11	K12	BK	18	INJECTOR CONTROL 2	N/A
12	G0008	DB	18	OIL VISCOSITY SIGNAL	N/A
12	K13	BR	18	INJECTOR CONTROL 3	N/A
13	K14	RD	18	INJECTOR CONTROL 4	N/A
14	K24	GY	20	CKP SIGNAL	N/A
14	K70	YL	18	EVAP PURGE SOL SIGNAL	N/A
14	K925	GY	20	CKP GROUND	N/A
16	K17	YL	18	COIL CONTROL 2	N/A
17	K19	RD	18	COIL CONTROL 1	N/A
17	K2	OR	20	ECT SIGNAL	N/A
18	K14	BK	18	INJECTOR CONTROL 4	N/A
18	K1	BR	20	MAP SIGNAL	N/A
19	K13	BR	18	INJECTOR CONTROL 3	N/A
2	K15	WT	18	COIL CONTROL 4	N/A
2	K22	OR	20	TP 1 SIGNAL	N/A
21	K922	OR	20	TP SENSOR RETURN	N/A
22	K944	WT	20	CMP GROUND	N/A
23	K900	WT	20	SENSOR GROUND	N/A
24	K900	BR	20	SENSOR GROUND	N/A
24	K925	LB	20	CKP GROUND	N/A
25	K922	WT	20	TP SENSOR RETURN	N/A
25	K147	BK	20	KNOCK SENSOR 1 SHIELD CIRCUIT	N/A
26	K942	RD	20	KS 1 RETURN	N/A
27	K44	GY	20	CMP SIGNAL	N/A
27	K441	GY	20	CMP SIGNAL 2	N/A
29	K925	WT	20	CKP GROUND	N/A
29	K24	WT	20	CKP SIGNAL	N/A
3	K11	DB	18	INJECTOR CONTROL 1	N/A
3	K122	GY	20	TP 2 SIGNAL	N/A
30	K01	DB	18	COLD START SOLENOID CONTROL	N/A
31	N35	BR	14	VVA SOLENOID 2 RETURN	N/A
32	N33	BK	14	VVA SOLENOID 1 RETURN	N/A
33	N39	BR	14	VVA SOLENOID 4 RETURN	N/A
33	K21	PK	20	IAT SIGNAL	N/A
34	N37	BK	14	VVA SOLENOID 3 RETURN	N/A
36	K958	BR	18	OIL VISCOSITY SENSOR GROUND	N/A
36	F855	WT	20	5 VOLT SUPPLY	N/A
37	K125	GY	20	GEN FIELD CONTROL	N/A
37	Z906	WT	18	GROUND	N/A
38	Z906	WT	18	GROUND	N/A
39	K2	DB	20	ECT SIGNAL	N/A
39	Z906	WT	18	GROUND	N/A
4	K12	WT	18	INJECTOR CONTROL 2	N/A
4	F856	WT	20	5 VOLT SUPPLY	N/A
40	G24	YL	20	EOT SIGNAL	N/A
43	K22	GY	20	TP 1 SIGNAL	N/A
44	G6	GY	20	OIL PRESSURE SIGNAL	N/A
45	K124	WT	18	ETC MOTOR (+)	N/A
46	N34	OR	14	VVA SOLENOID 2 SIGNAL	N/A
47	N32	OR	14	VVA SOLENOID 1 SIGNAL	N/A
48	N38	OR	14	VVA SOLENOID 4 SIGNAL	N/A
49	N36	OR	14	VVA SOLENOID 3 SIGNAL	N/A
5	F851	WT	20	SENSOR REFERENCE VOLTAGE B	N/A
52	K18	WT	18	COIL CONTROL 3	N/A
52	K150	BR	20	TURBOCHARGER SURGE VALVE CONTROL	N/A
53	K70	YL	20	EVAP PURGE SOL SIGNAL	N/A
53	K19	BR	18	COIL CONTROL 1	N/A
53	K52	DB	18	EVAP PURGE CONTROL	N/A
54	F344	DB	20	FUSED ASD RELAY OUTPUT	N/A
54	Z906	WT	18	GROUND	N/A
55	K21	WT	20	IAT SIGNAL	N/A
55	Z906	WT	18	GROUND	N/A
56	K15	YL	18	COIL CONTROL 4	N/A
57	K1	WT	20	MAP SIGNAL	N/A
57	K17	YL	18	COIL CONTROL 2	N/A
58	K37	BR	20	BOOST PRESSURE SIGNAL	N/A
59	K122	YL	20	TP 2 SIGNAL	N/A
6	F851	OR	20	SENSOR REFERENCE VOLTAGE B	N/A
6	K44	GY	20	CMP SIGNAL	N/A
6	F855	OR	20	5 VOLT SUPPLY	N/A
60	K126	RD	18	ETC MOTOR (-)	N/A
60	K76	YL	18	VVT INTAKE CONTROL	N/A
60	K447	RD	18	ETC MOTOR (+)	N/A
61	K124	BK	18	ETC MOTOR (+)	N/A
62	K126	RD	18	ETC MOTOR (-)	N/A
7	F855	WT	20	5 VOLT SUPPLY	N/A
7	K24	VT	20	CKP SIGNAL	N/A
7	F856	WT	20	5 VOLT SUPPLY	N/A
8	Z753	BK	20	CRANKSHAFT POSITION SENSOR SHIELD	N/A
9	K147	NA	20	KNOCK SENSOR 1 SHIELD CIRCUIT	N/A
9	K42	LB	20	KS 1 SIGNAL	N/A
