Module, A/C And Heater: Installation: Installation

NOTE:

Air inlet housing removed from view for clarity.

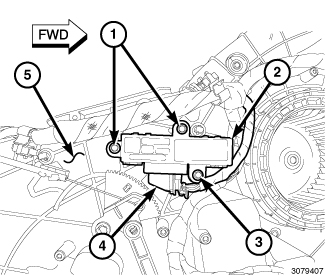

Fig 1: Wire Harness Connector, A/C Heater Module, HVAC Housing, Lower Module Retaining Screw

Courtesy of CHRYSLER GROUP, LLC

Position the A/C heater module (2) to the right side of the HVAC housing (5).
NOTE:
Use a flexible drive socket to remove the lower module retaining screw (3).
Install the three retaining screws (1 and 3) that secure the module to the housing. Tighten the screws to 0.8 N.m (7 in. lbs.).
Connect the wire harness connector (4) to the A/C heater module.
Install the glove box. Refer to GLOVE BOX, INSTRUMENT PANEL, INSTALLATION .
Reconnect the negative battery cable.
