Relay, Auto Shut Down: Description: Description

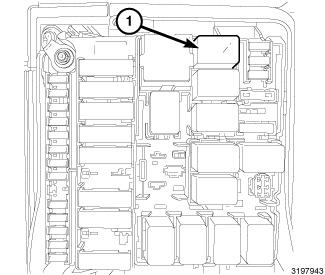

Fig 1: Automatic Shutdown (ASD) Relay

Courtesy of CHRYSLER GROUP, LLC

The 5-pin, 12-volt, Automatic Shutdown (ASD) relay (1) is located in the Power Distribution Center (PDC). Always refer to the label on the power distribution center cover for relay location.
