P1630-Shift Module Motor Control Feedback Signal: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

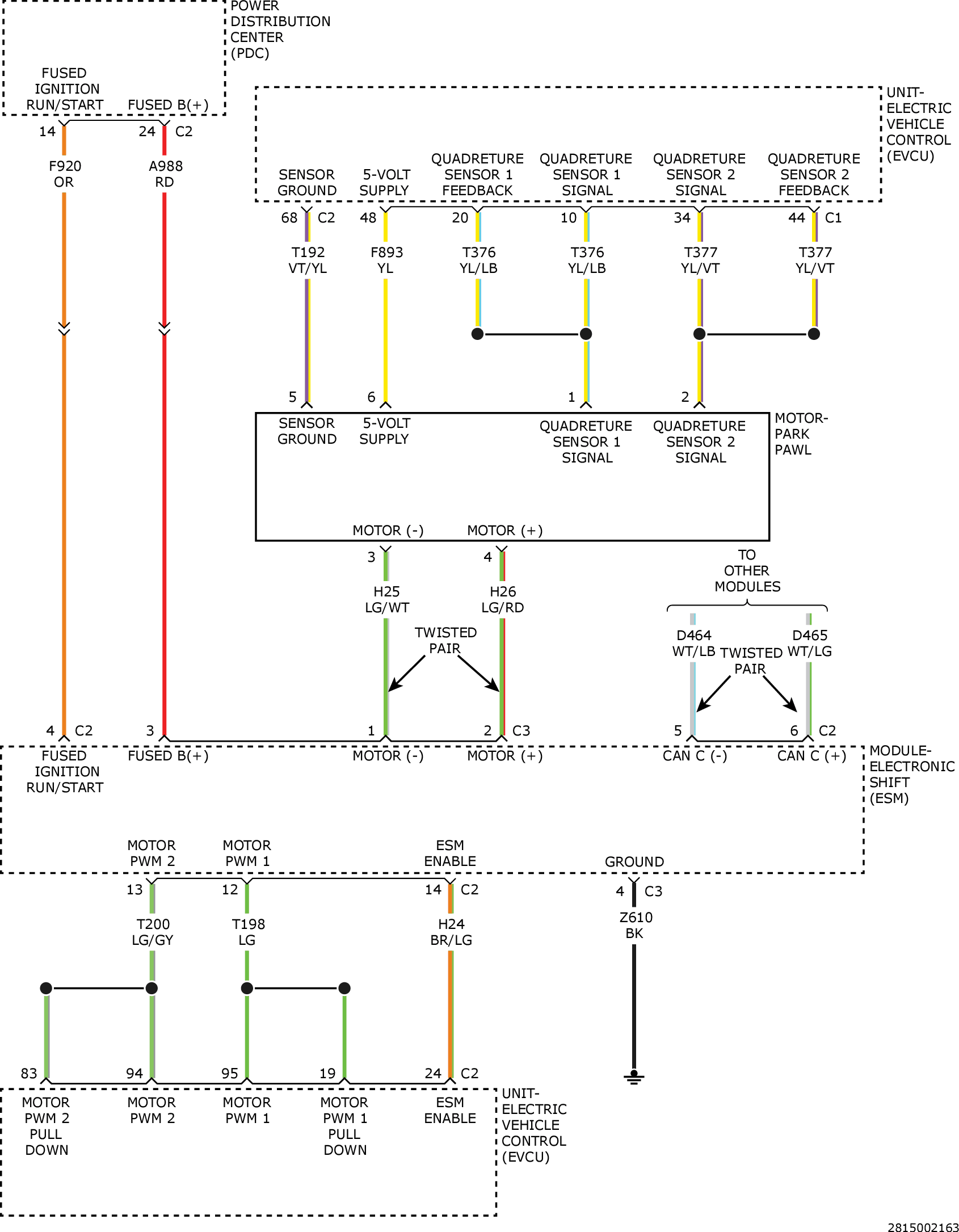

Fig 1: Park Pawl System Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
