P2115-Accelerator Pedal Position Sensor 1 Minimum Stop Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

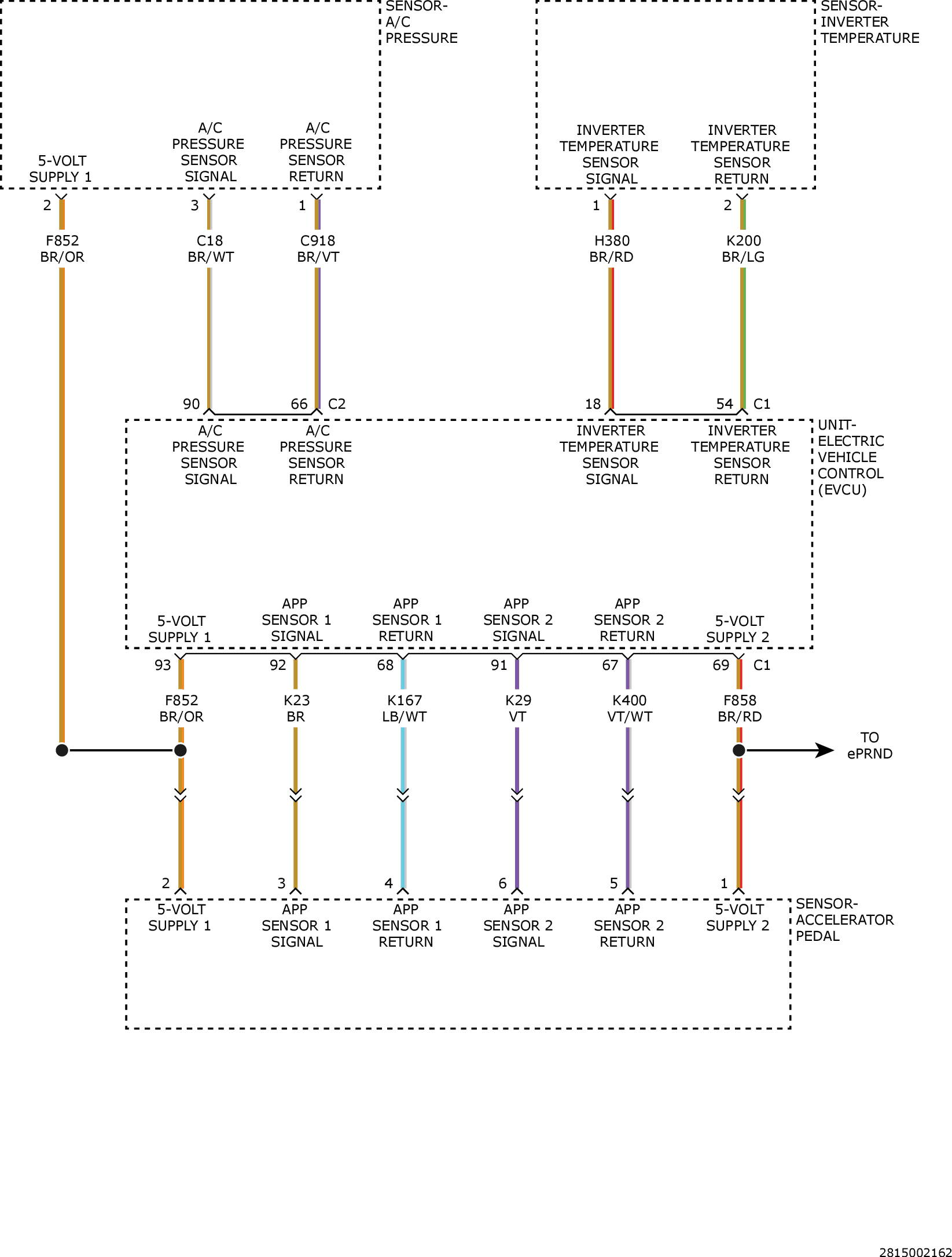

Fig 1: A/C Pressure, Inverter Temperature & Accelerator Pedal Sensors Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
