P0A1F-00-Battery Energy Control Module Internal Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

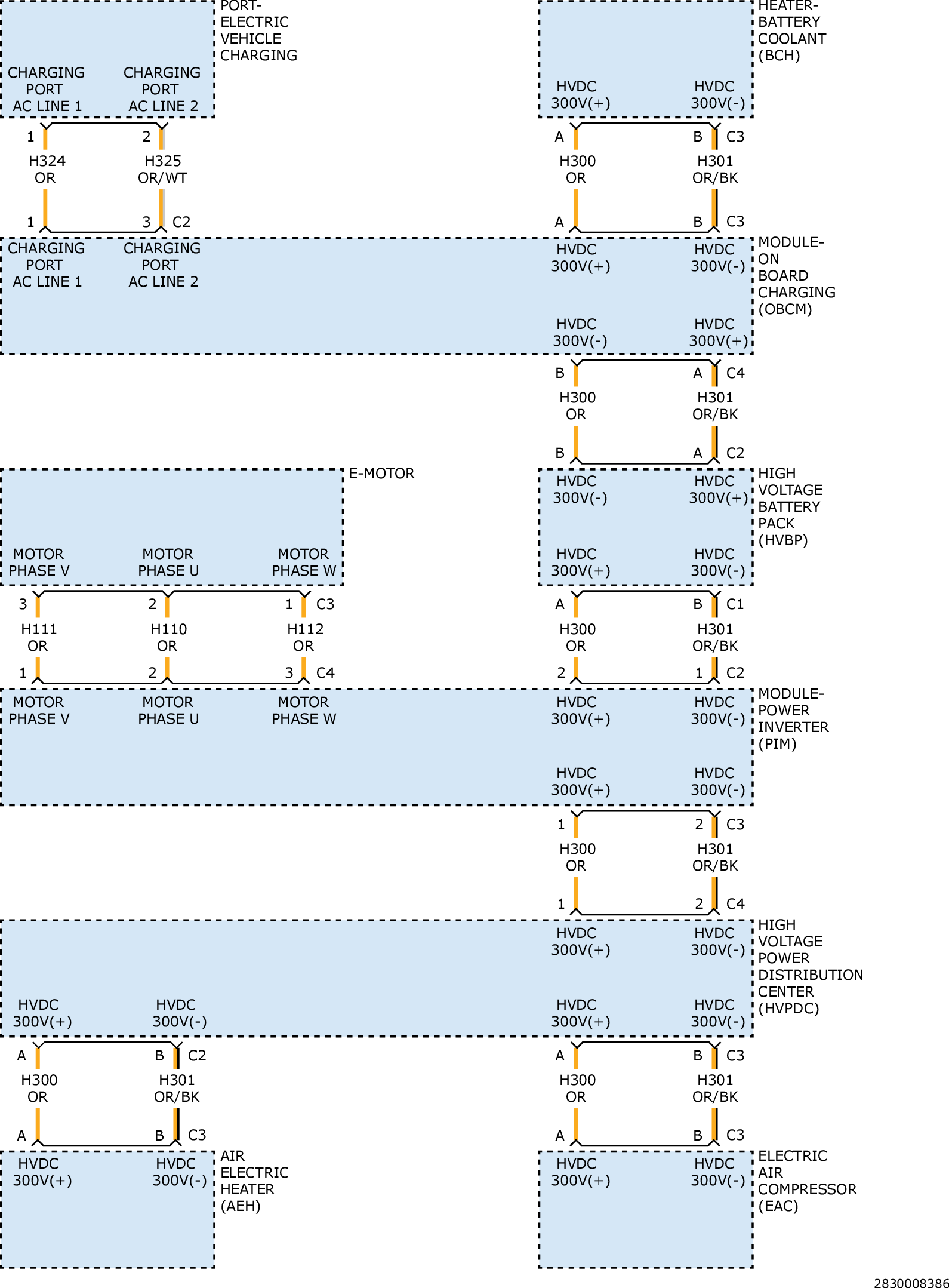

Fig 1: Battery Voltage System Isolation Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
