Mount, Motor: Removal: Right

Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .

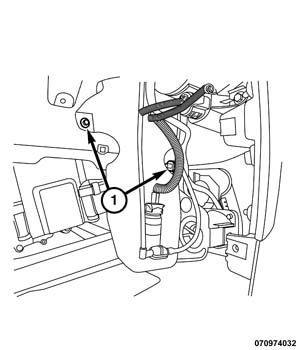

Fig 1: Washer Bottle Bolts
Courtesy of CHRYSLER GROUP, LLC
Remove the two washer bottle bolts (1) and position the washer bottle aside.

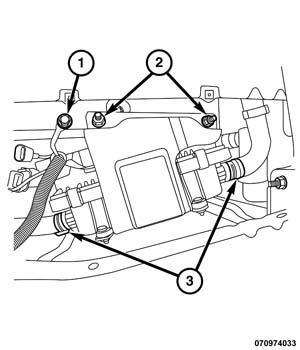

Fig 2: Battery Coolant Heater (BCH) Nuts & Ground Strap Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the Battery Coolant Heater (BCH) ground strap bolt (1).
Remove the two BCH nuts (2).
Support the electric motor with a suitable transmission jack, or similar.

Fig 3: RH Front Motor Mount Through-Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the right motor mount through-bolt (1).
Remove the three right motor mount bolts (2), and remove the right motor mount (1)
