P0CF3-Control Pilot Circuit-Open: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

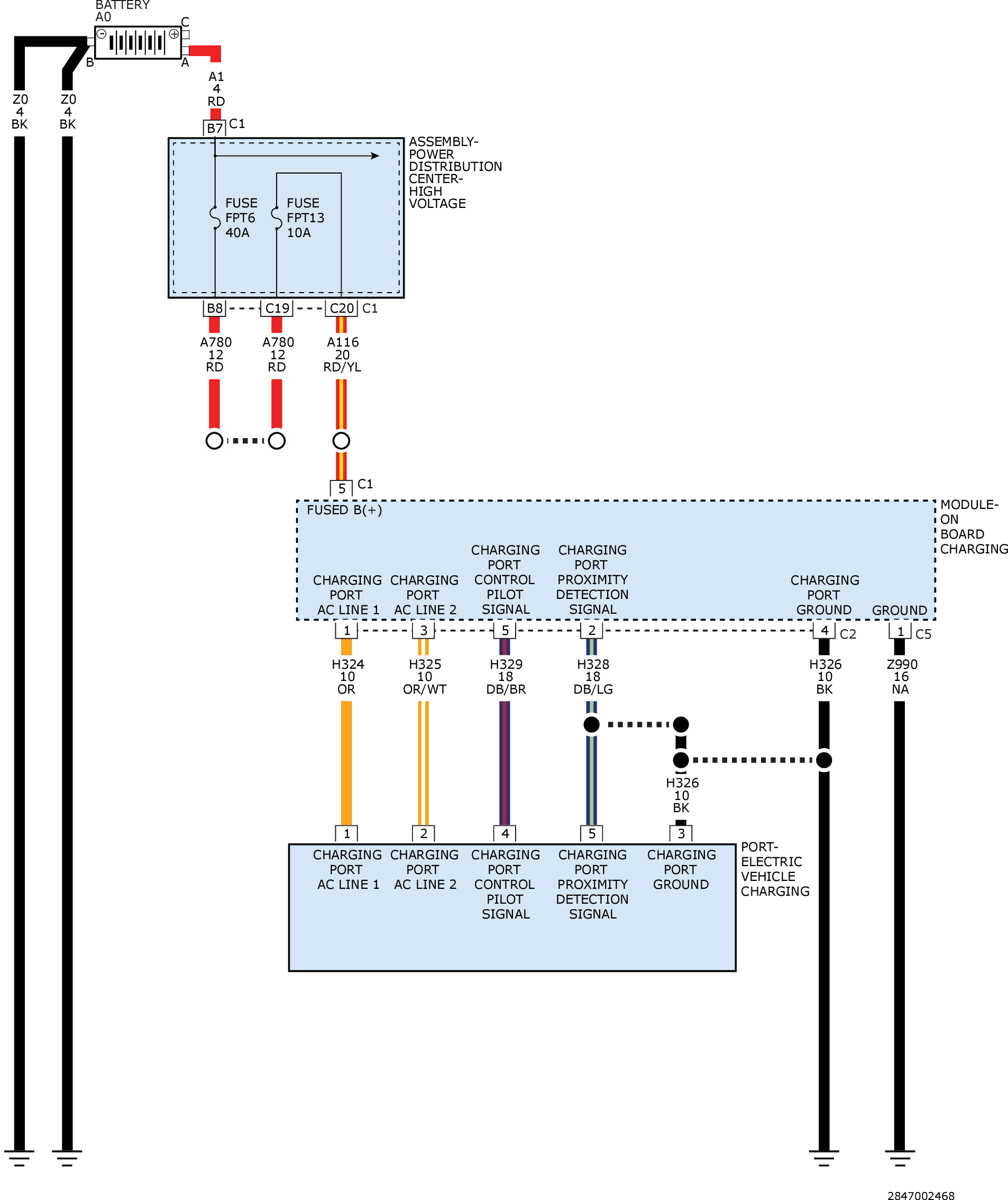

Fig 1: On-Board Charging Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
