Switch - Right Side

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the appropriate door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

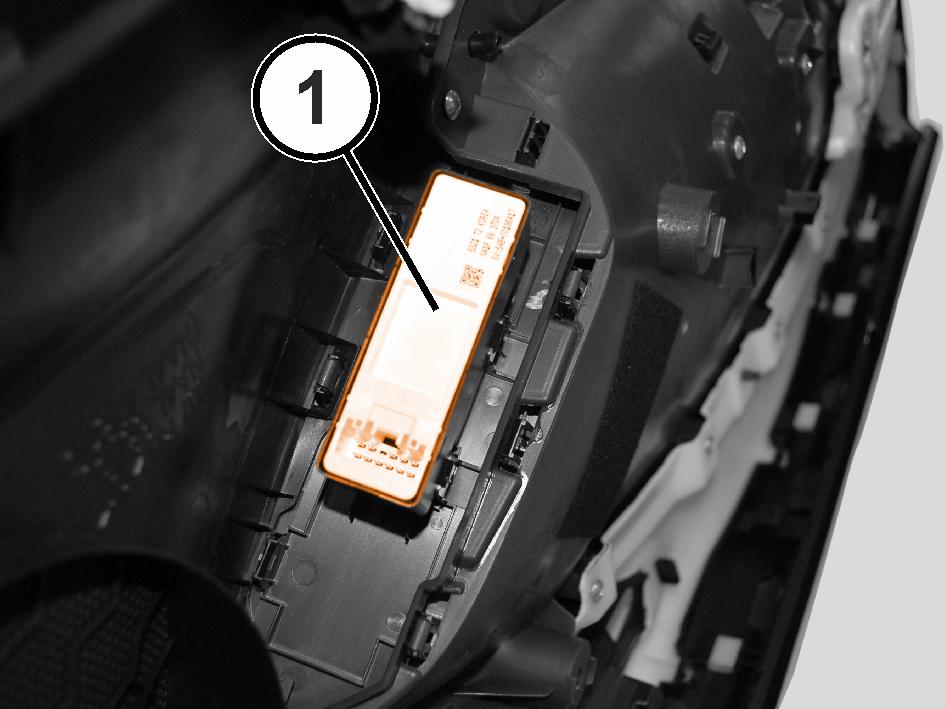

3. Remove the screws (1a) and while using the appropriate tool, release the power window switch (1b) complete with support and remove it.

INSTALLATION

1. Tighten screws securing the power window switch to the support.
2. Position the power window switch and engage it to the door trim panel.
3. Install the door trim panel. Refer to PANEL, DOOR TRIM, REMOVAL AND INSTALLATION .
4. Connect the negative battery cable.
