Removal And Installation

REMOVAL

1. Disconnect and isolate the negative battery cable.
2. Remove the instrument trim panel housing the ignition button. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

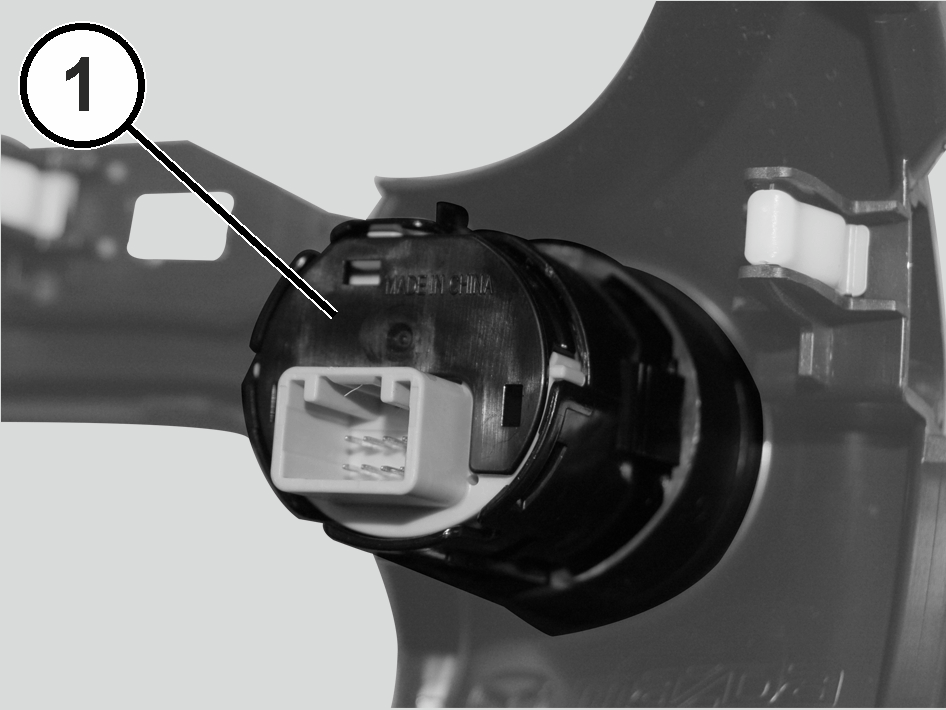

3. Remove the switch (1) from the switch housing.

INSTALLATION

1. Install the switch to the switch housing.
2. Install the instrument trim panel housing the ignition button. Refer to PANEL, INSTRUMENT PANEL TRIM, REMOVAL AND INSTALLATION .
3. Connect the negative battery cable.
