Disassembly And Assembly: Assembly

Courtesy of CHRYSLER GROUP, LLC

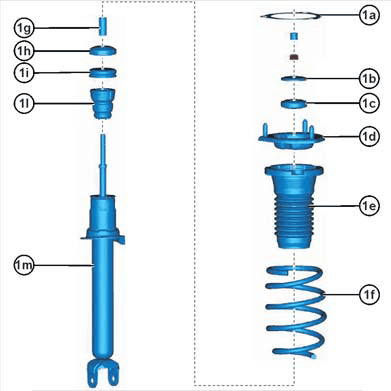

1. Reassemble the strut assembly in the order shown in the illustration .
2. Position the strut assembly and compress the spring.

   Courtesy of CHRYSLER GROUP, LLC

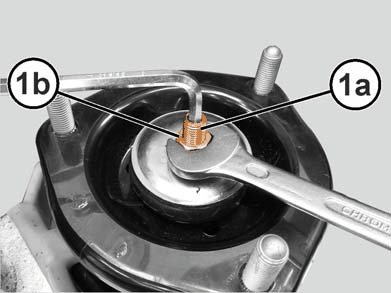

3. Install the strut rod nut and holding the strut rod, tighten the strut rod nut to the proper torque. Refer to TORQUE SPECIFICATIONS  .
4. Install the strut assembly. Refer to STRUT, SUSPENSION, ASSEMBLY, REMOVAL AND INSTALLATION .
