Stabilizer Bar, Front: Installation

NOTE:

While raising the crossmember, pay close attention to the steering rack pinion shaft so that it properly fits up and into the dash boot between the rack and body.

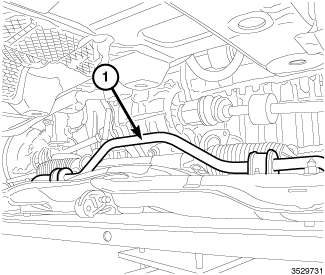

GC0153597Courtesy of CHRYSLER GROUP, LLC
  1. Install the stabilizer bar (1), link ends first, over top of the crossmember. Curve the ends of the bar over the steering gear.
    GC0152758Courtesy of CHRYSLER GROUP, LLC
  2. Slowly raise the crossmember into mounted position using the transmission jack, matching the crossmember to the marked locations on the body made during removal. Ensure that the steering rack pinion shaft is aligned with the dash panel boot opening.
  3. Install steering rack mounting bolts and tighten to 75 N.m (55 ft. lbs.).
  4. Install the four rear mounting bolts (2) securing the front crossmember to the body. Do not fully tighten the crossmember mounting bolts at this time.
  5. Install two front mounting bolts (1, 3) securing the front crossmember to the body. Do not fully tighten the bolts at this time.
  6. Remove the transmission jack.

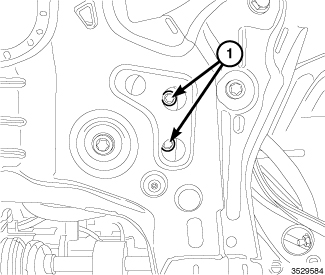

    GC0153595Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Stabilizer bar cushion retainer bolts have fastener adhesive on them and are required to be replaced with new bolts every time they are removed.

  7. Install four NEW  bolts securing the stabilizer bushing retainers to the crossmember. Tighten the right side stabilizer bar cushion retainer bolts (1) to 25 N.m (18 ft. lbs.).

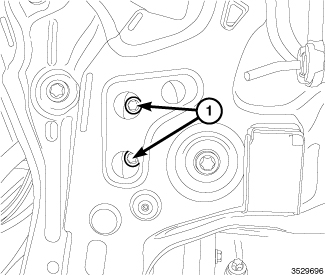

    GC0153596Courtesy of CHRYSLER GROUP, LLC
  8. Tighten the left side stabilizer bar cushion retaining bolts (1) to 25 N.m (18 ft. lbs.).
    GC0158918Courtesy of CHRYSLER GROUP, LLC
  9. Attach the retaining clip and shift cables (1) to the steering rack.
    GC0152449Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    Ensure that the front support beams are inserted into the crossmember front clevis prior to installing the tunnel support brace bolts in the next step.

  10. Install tunnel support brace (2). Install mounting bolts (1) and tighten to 100 N.m (74 ft. lbs.).
    GC0152406Courtesy of CHRYSLER GROUP, LLC
  11. Install rear engine mount insulator. Refer to INSULATOR, ENGINE MOUNT, REAR, INSTALLATION .
  12. Install the exhaust pipe. Refer to MUFFLER, EXHAUST, INSTALLATION .
    GC0157948Courtesy of CHRYSLER GROUP, LLC
  13. Attach the stabilizer bar link at each end of the stabilizer bar. At each link, install and tighten the nut while holding the stabilizer bar link lower stud stationary to specifications. Refer to TORQUE SPECIFICATIONS .
    GC0152558Courtesy of CHRYSLER GROUP, LLC
  14. Install outer tie rod end (5) to knuckle (3). Install nut (4) on tie rod stud and tighten to 40 N.m (30 ft. lbs.).
  15. Install lower ball joint stud (1) to knuckle (3) and install retaining nut (2). Tighten nut to 65 N.m (48 ft. lbs.).
  16. If equipped, install the engine belly pan.
    GC0152555Courtesy of CHRYSLER GROUP, LLC
  17. Install tire and wheel assembly. Refer to INSTALLATION .
  18. Lower the vehicle.
    GC0158840Courtesy of CHRYSLER GROUP, LLC
  19. Verify the front wheels of vehicle are in the STRAIGHT-AHEAD position.
  20. Install intermediate shaft (1) to steering rack pinion shaft (3). Install a NEW  pinch bolt (2) and tighten to specifications. Refer to COLUMN, TECHNICAL SPECIFICATIONS .
  21. Perform wheel alignment as necessary. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE .
    GC0152758Courtesy of CHRYSLER GROUP, LLC
  22. After the alignment has been performed, tighten four rear mounting bolts (2) to 165 N.m (122 ft. lbs.) and tighten two front mounting bolts (1, 3) to 125 N.m (92 ft. lbs.).
