Description
›
B2 Brake

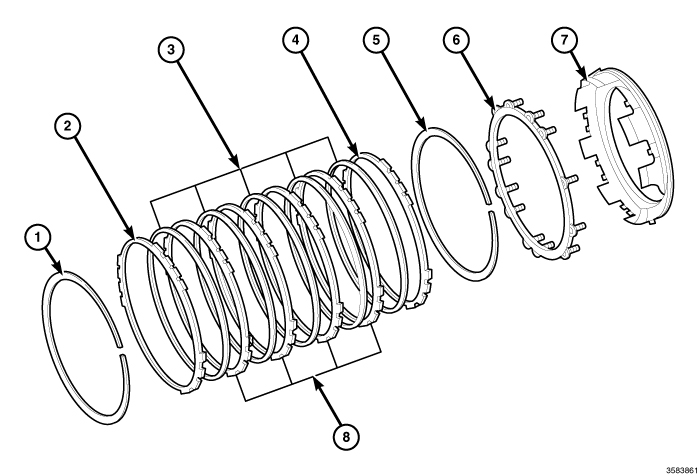

B2 Brake
Courtesy of CHRYSLER GROUP, LLC
1 - Snap Ring
7 - 1st and Reverse Brake Return Piston
2 - Flange
8 - Clutch Plates
3 - Clutch Discs
4 - Flange
5 - Snap Ring
6 - 1st and Reverse Brake Return Spring
Courtesy of CHRYSLER GROUP, LLC
