Acc Module Bracket: Installation
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.

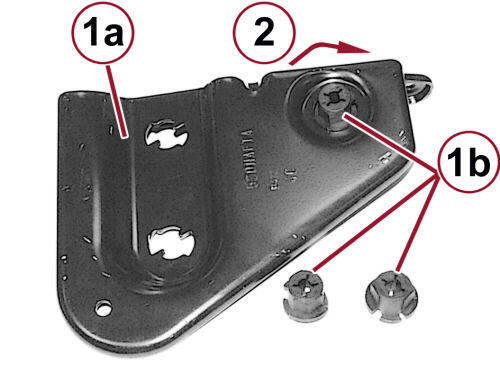

- Position the new bracket (1a) bushings anchor (1b) supplied with the spare.
- Install the bushings (1b) in the bracket, turning them about half a turn, until it reaches the stop (approximately 14 daN / m).
- Position the bracket and fasten with rivets.
- Install the front fascia. Refer to FASCIA, FRONT, INSTALLATION .
- Connect the negative battery cable.
