Removal And Installation: Removal
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.

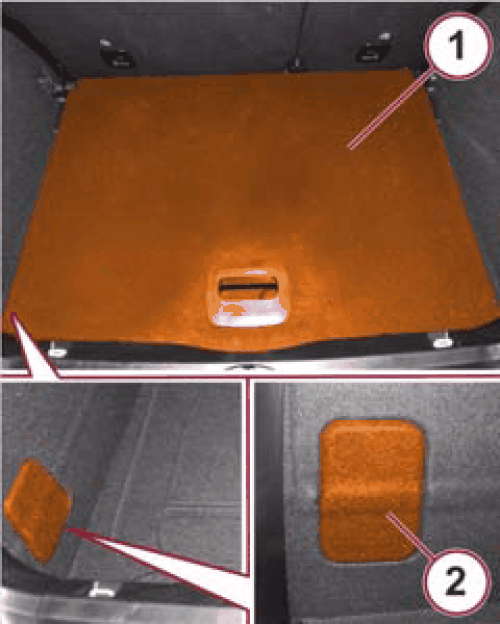

- Remove the load compartment support surface (1).
- Pry up the luggage compartment trim flap (2).

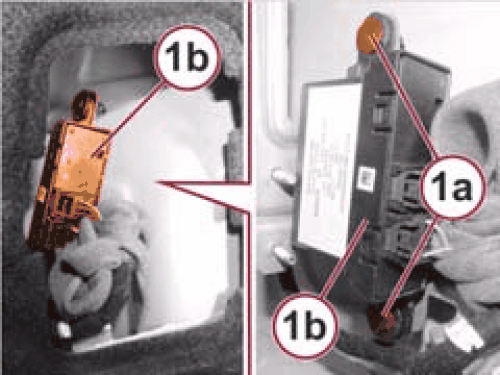

- Use a suitable tool to pry up the retaining buttons (1a) and move the Park Assist Module (PAM) (1b) aside.

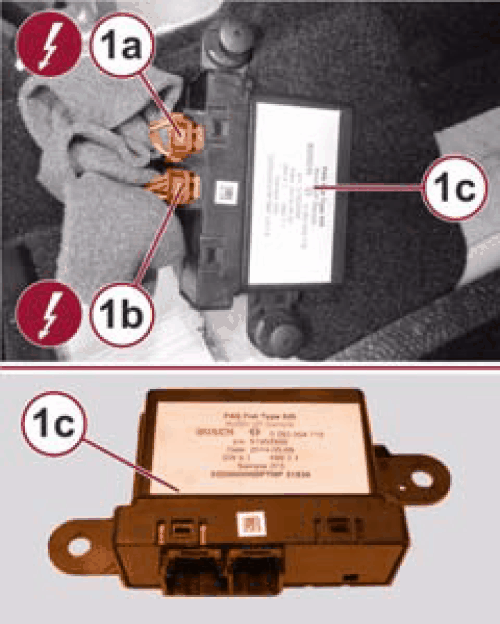

- Disconnect the wire harness connectors (1a and 1b) from the PAM (1c).
