Removal And Installation: Removal
WARNING: This page is about a different car, the 2019 Fiat 500X. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the load compartment side trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL
.

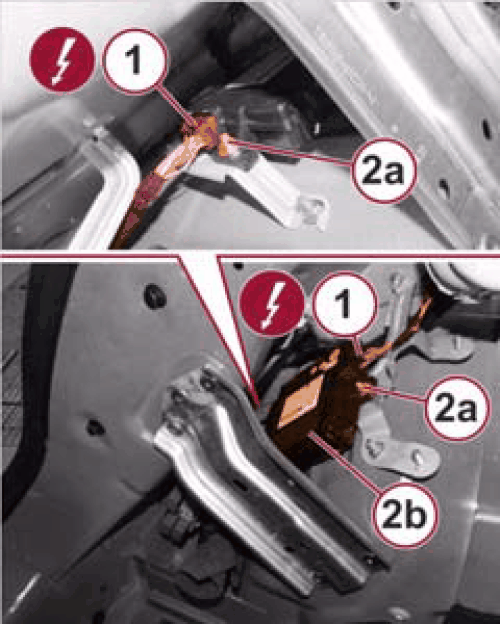

- Disconnect the wiring harness connections (1) from the Remote Frequency Hub Module (RFHM) (2b).
- Remove the bolts (2a) securing the RFHM to the body.
