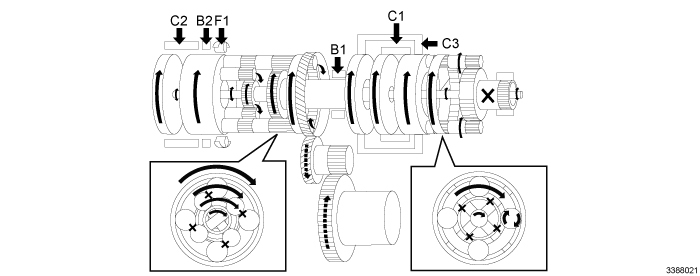

Third Gear Power Flow

GC0153392

Courtesy of CHRYSLER GROUP, LLC

THIRD GEAR

SHIFTER POSITION	RANGE	SOLENOID						CLUTCH NUMBER			BRAKE NUMBER		ONE-WAY CLUTCH
SHIFTER POSITION	RANGE	SLC1	SLC2	SLC3	SLB1	S1	S2	C1	C2	C3	B1	B2	F1
D	THIRD	X	X	-	-	X	-	X	-	X	-	-	-
X = in operation
