Automatic Transmission (Service Information): Removal
- Remove the engine and transmission as an assembly from the vehicle. Refer to REMOVAL
.
- Remove the torque convertor access panel.
- Support the transmission with a suitable transmission jack.
- Remove torque convertor bolts.

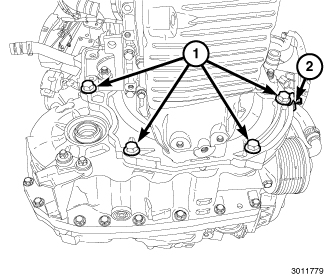

- Remove the upper transmission to engine block bolts.
- Remove the lower transmission to engine block bolts.
- Separate the transmission from the engine.
