Pipe, Exhaust: Installation: Notes

WARNING: This page is about a different car, the 2020 Dodge Journey. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

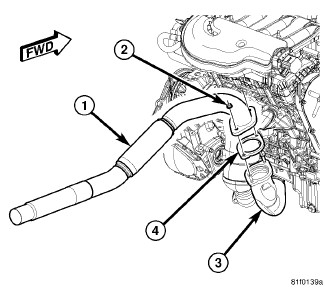

1 - EXHAUST PIPE

2 - NUTS

3 - CROSS UNDER PIPE

4 - GASKET

Position exhaust pipe (1) into muffler/resonator assembly.
Position exhaust pipe onto cross over pipe.
Install exhaust pipe (1) to cross over pipe nuts. Tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Align exhaust pipe (1) and resonator/muffler pipe assembly to maintain position and proper clearance with underbody parts. All support isolators should have equal load on them. Tighten fasteners attaching exhaust pipe (1) to cross-under pipe (3) to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Install new band clamp. Tighten band clamp to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
Lower vehicle.
Connect the negative battery cable.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary. Refer to DIAGNOSIS AND TESTING .
Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
